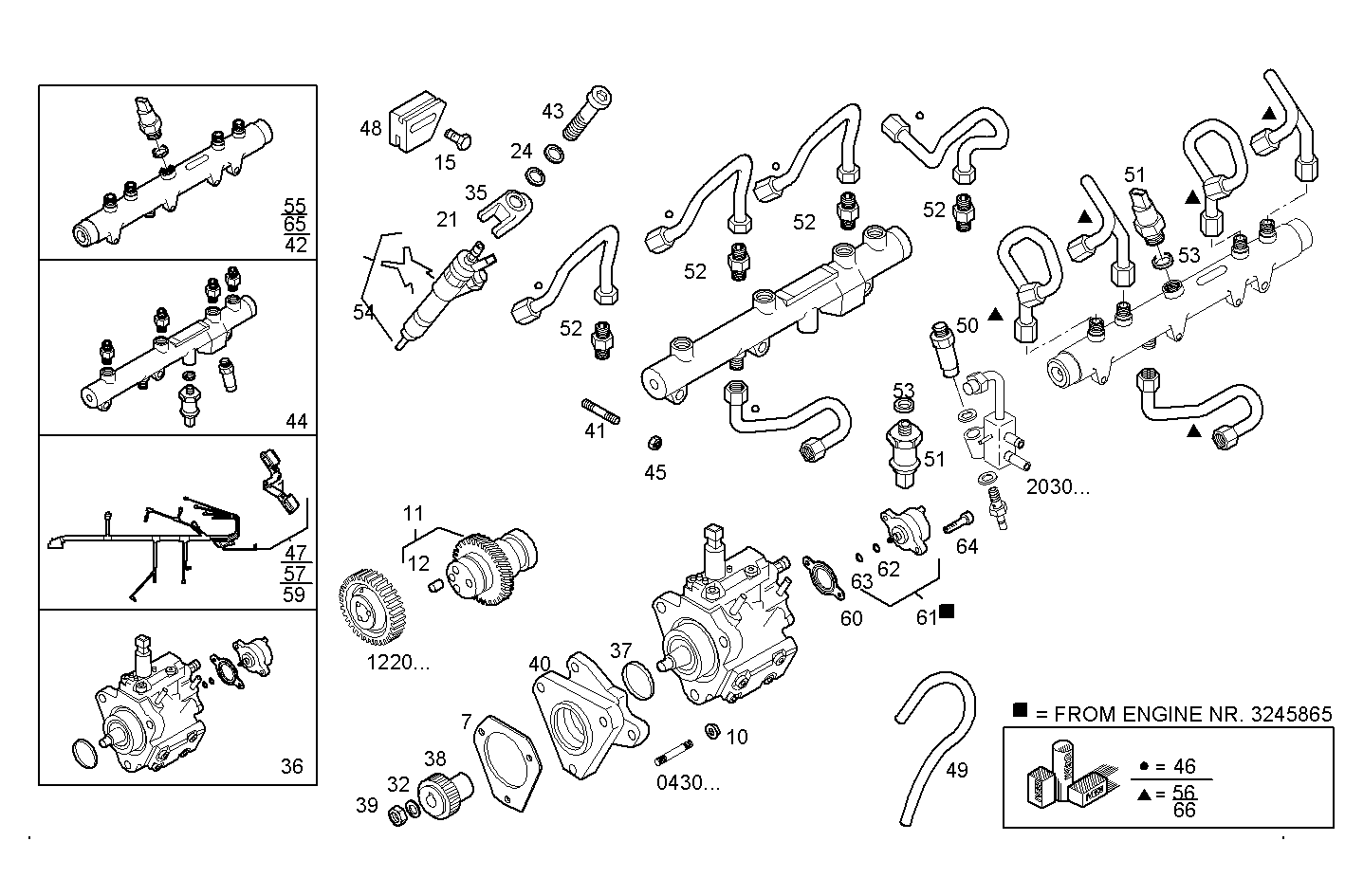

| Item |
Part number |
Description |
|
1 |
500349325 |
FASTENING BRACKET |
|
7 |
4851923 |
FLAT ENGINE GASKET |
|
10 |
99486343 |
HEXAGON NUT M8X1,25 |
|
11 |
99483335 |
INJECT.PUMP SPIND ASSY |
|
12 |
10335910 |
PARALLEL PIN |
|
15 |
16596924 |
HEXAGON BOLT M6X10 MM |
|
21 |
500388113 |
RETAINER |
|
21 |
99453918 |
RETAINER [UP TO # 3240893] |
|
24 |
17090274 |
WASHER Ø10X20 MM |
|
32 |
768389 |
CIRCLIP |
|
35 |
756671 |
WASHER |
|
36 |
99483254 |
HIGH PRESSURE PUMP |
|
37 |
500319674 |
O-RING Ø45 MM |
|
38 |
99487290 |
INJECT.PUMP BUSH 228° |
|
39 |
7303345 |
NUT [up to 1992414] |
|
40 |
500354490 |
SUPPORT |
|
41 |
16746824 |
STUD M8X30 MM (8.8) |
|
42 |
500313105 |
ELECTRO INJECTOR ASSY |
|
43 |
14307924 |
CYLIND-HEAD SCREW M10X1,25X50 MM |
|
44 |
500398225 |
HYDRAULIC CYLINDER [UP TO # 3249778] |
|
45 |
17044735 |
NUT M8 |
|
46 |
500340681 |
INJECTION LINE SET [UP TO # 3249778] |
|
47 |
500353704 |
SET OF WIRING ENGINE [UP TO # 3249778] |
|
48 |
500315270 |
CHOCK |
|
49 |
500332712 |
RUBBER SLEEVE Ø8 MM |
|
50 |
500399013 |
THREADED UNION |
|
51 |
500372234 |
SENSOR |
|
52 |
500399014 |
THREADED UNION |
|
53 |
500372236 |
WASHER |
|
54 |
500378001 |
SPRING CLAMP |
|
55 |
500394220 |
HYDRAULIC CYLINDER ASSY [UP TO # 3887457] |
|
56 |
500397941 |
INJECTION LINE SET ALTERNATIVE USE [UP TO # 3887457] |
|
57 |
504032950 |
SET OF WIRING [UP TO # 3487098] |
|
59 |
504032955 |
SET OF WIRING ENGINE [FROM 3487099] |
|
60 |
42538467 |
FLAT ENGINE GASKET |
|
61 |
42538165 |
GOVERNOR/REGULATOR |
|
62 |
42541074 |
GASKET |
|
63 |
42541075 |
O-RING |
|
64 |
42533116 |
CYLIND-HEAD SCREW |
|
65 |
504088073 |
HYDRAULIC CYLINDER |
|
66 |
504088076 |
INJECTION LINE SET |
