8140SRC30.20A001

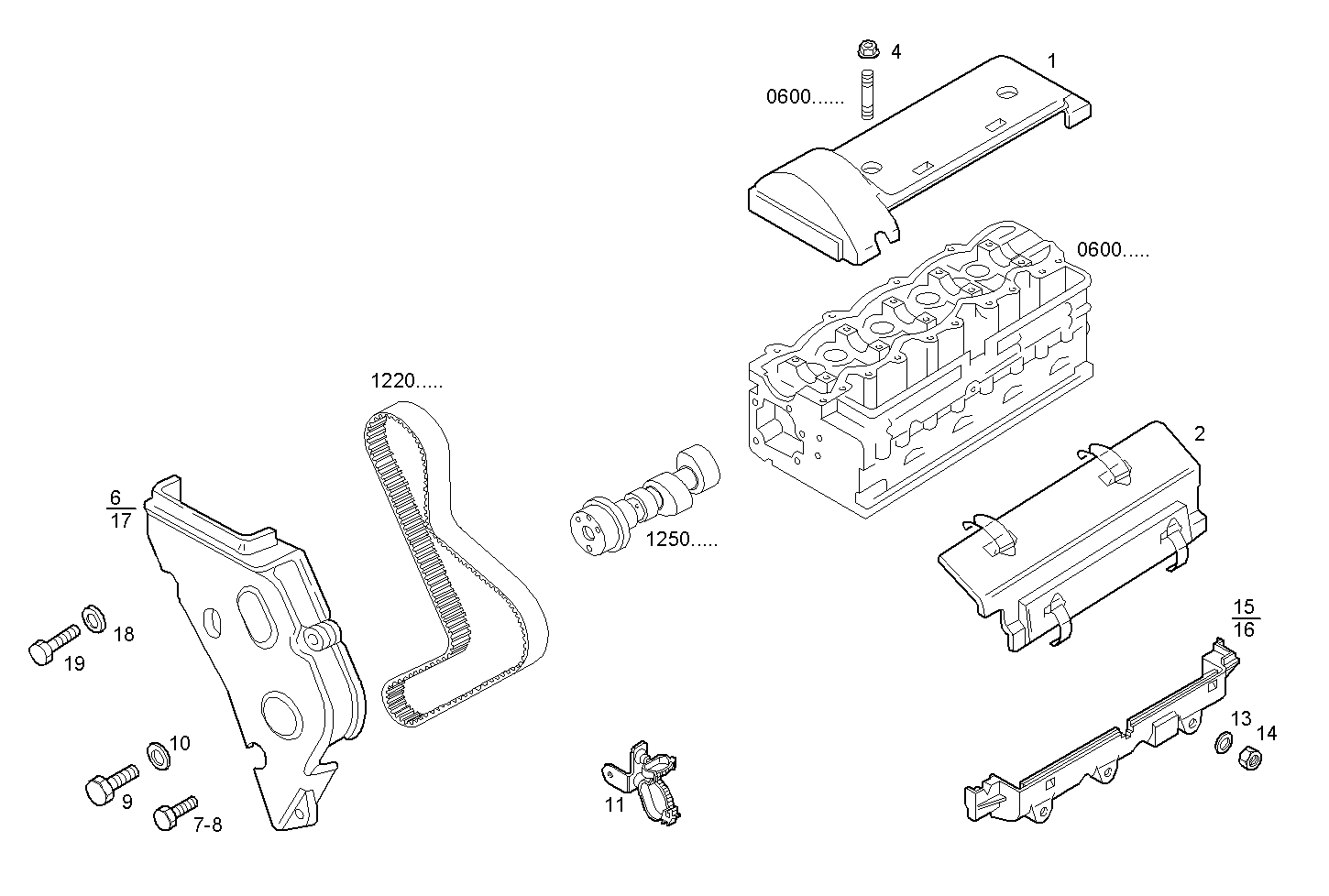

4620.010 ASSY SOUND PROOFING
Item | Part number | Description |
---|---|---|
1 | 99471017 | CYL. HEAD COVER |
2 | 99471006 | SIDE COVER |
4 | 98439382 | NUT |
6 | 500341406 | COVER ASSY |
7 | 16597224 | HEXAGON BOLT M6X18 MM |
8 | 16585924 | HEXAGON BOLT M6X25 MM |
9 | 99485223 | HEXAGON BOLT M6X70 MM |
10 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
11 | 500343591 | FASTENING BRACKET |
13 | 13550301 | WASHER Ø8,15 MM |
14 | 17044731 | HEXAGON NUT M8 |
15 | 99463363 | SIDE COVER |
16 | 500398047 | COVER |
17 | 504022580 | COVER |
18 | 12646624 | WASHER |
19 | 16296924 | HEXAGON BOLT |
