8140SRC30.20A002

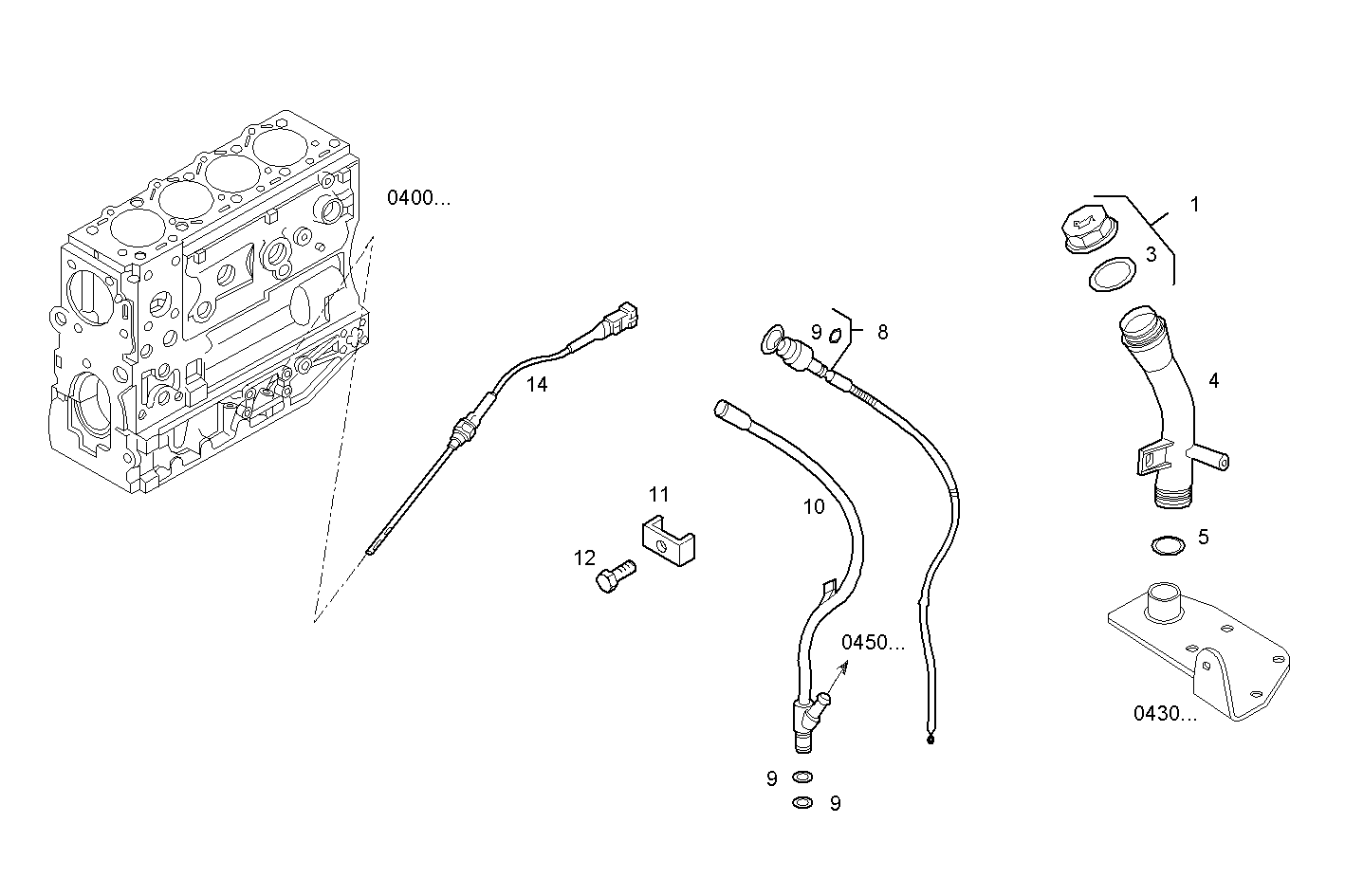

2700.007 OIL DIPSTICK & FILLER PIPE

Iveco/FPT OIL DIPSTICK & FILLER PIPE

Item Part number Description
1 500301568 OIL FILLER PLUG ASSY
3 17295480 O-RING 5,33x37,46
4 99470999 OIL FILLER PIPE
5 17282581 O-RING Ø28,24 MM SP=2,62 MM
8 500365794 OIL DIPSTICK
9 17277981 O-RING 1,78x9,25
10 504108822 OIL LEVEL TUBE
11 4716870 RETAINER
12 16673735 HEXAGON BOLT M8X25 MM
14 500325018 OIL LEVEL SENSOR
