8140SRC30.20A002

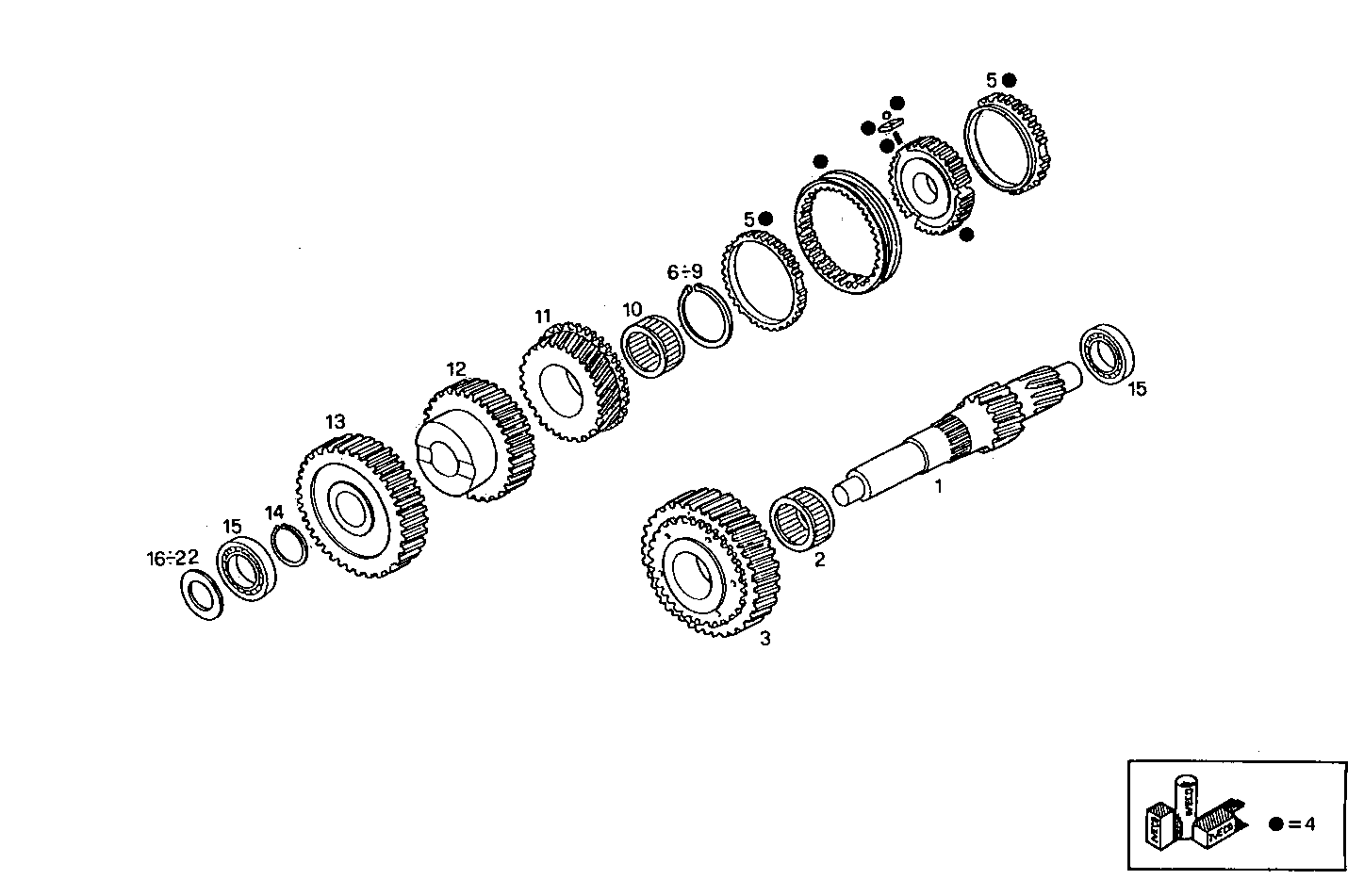

T2760001/05 TRANSMISSION - (components)
| Item |
Part number |
Description |
|
1 |
42534979 |
COUNTERSHAFT |
|
2 |
42534980 |
ROLLER CAGE |
|
3 |
42534981 |
SPLITTER GEAR |
|
4 |
42534983 |
KIT-SYNCHRONIZER |
|
5 |
42534984 |
SYNCHRONIZER |
|
6 |
42534990 |
CIRCLIP SP=1,95 MM |
|
7 |
42534991 |
CIRCLIP SP=1,85 MM |
|
8 |
42534992 |
CIRCLIP SP=1,75 MM |
|
9 |
42534993 |
CIRCLIP SP=1,65 MM |
|
10 |
42534986 |
ROLLER CAGE |
|
11 |
42534987 |
SPLITTER GEAR |
|
12 |
42534988 |
SPLITTER GEAR |
|
13 |
42534989 |
SPLITTER GEAR |
|
14 |
42534985 |
CIRCLIP Ø36 MM |
|
15 |
42534982 |
ROLLER BEARING |
|
16 |
42534994 |
STOP WASHER SP=2,45 MM |
|
17 |
42534995 |
STOP WASHER SP=2,35 MM |
|
18 |
42534996 |
STOP WASHER SP=2,25 MM |
|
19 |
42534997 |
STOP WASHER SP=2,15 MM |
|
20 |
42534998 |
STOP WASHER SP=2,05 MM |
|
21 |
42534999 |
STOP WASHER SP=1,95 MM |
|
22 |
42535000 |
STOP WASHER SP=1,85 MM |
