8140SRC30.20A002

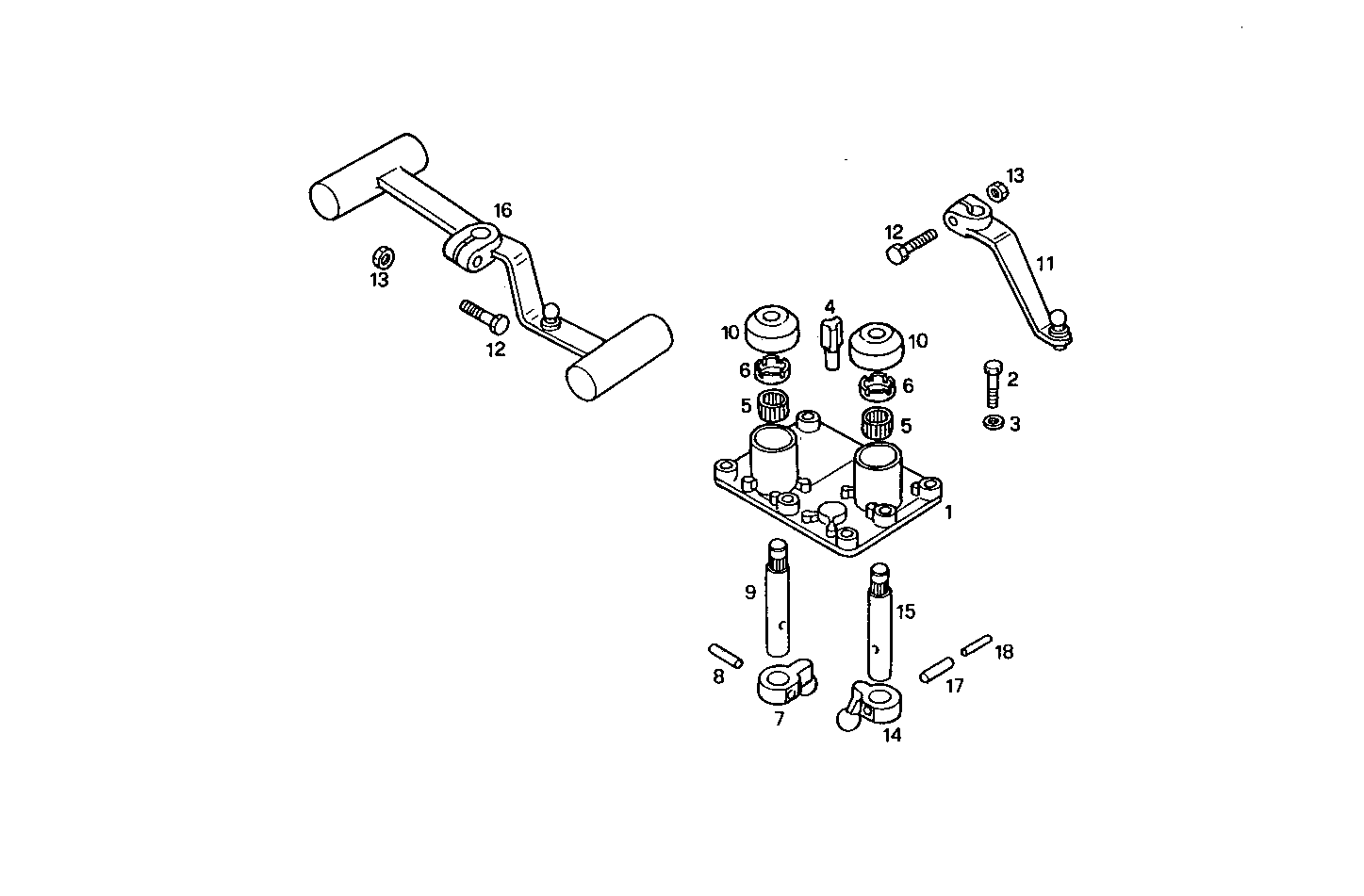

T2760001/09 TRANSMISSION - (components)
| Item |
Part number |
Description |
|
1 |
8868879 |
HOUSING M22X1,5 |
|
2 |
93190345 |
HEXAGON BOLT M8X35 MM |
|
3 |
42491302 |
WASHER |
|
4 |
9931584 |
BREATHER |
|
5 |
42534933 |
ROLLER CAGE |
|
6 |
42534975 |
SHAFT SEAL |
|
7 |
8868876 |
LEVER M22X1,5 |
|
8 |
42534974 |
DOWEL PIN Ø8 MM |
|
9 |
8868878 |
GEAR SHIFT SHAFT M22X1,5 |
|
10 |
8868600 |
CAP |
|
11 |
42534976 |
GEARSHIFT LEVER |
|
12 |
42534977 |
SCREW M8X40 |
|
13 |
42491308 |
NUT |
|
14 |
8868875 |
LEVER M22X1,5 |
|
15 |
8868877 |
GEAR SHIFT SHAFT M22X1,5 |
|
16 |
42534978 |
GEARSHIFT LEVER |
|
17 |
17259470 |
DOWEL PIN Ø8 MM L=32 MM |
|
18 |
17256070 |
DOWEL PIN Ø5 MM L=32 MM |
