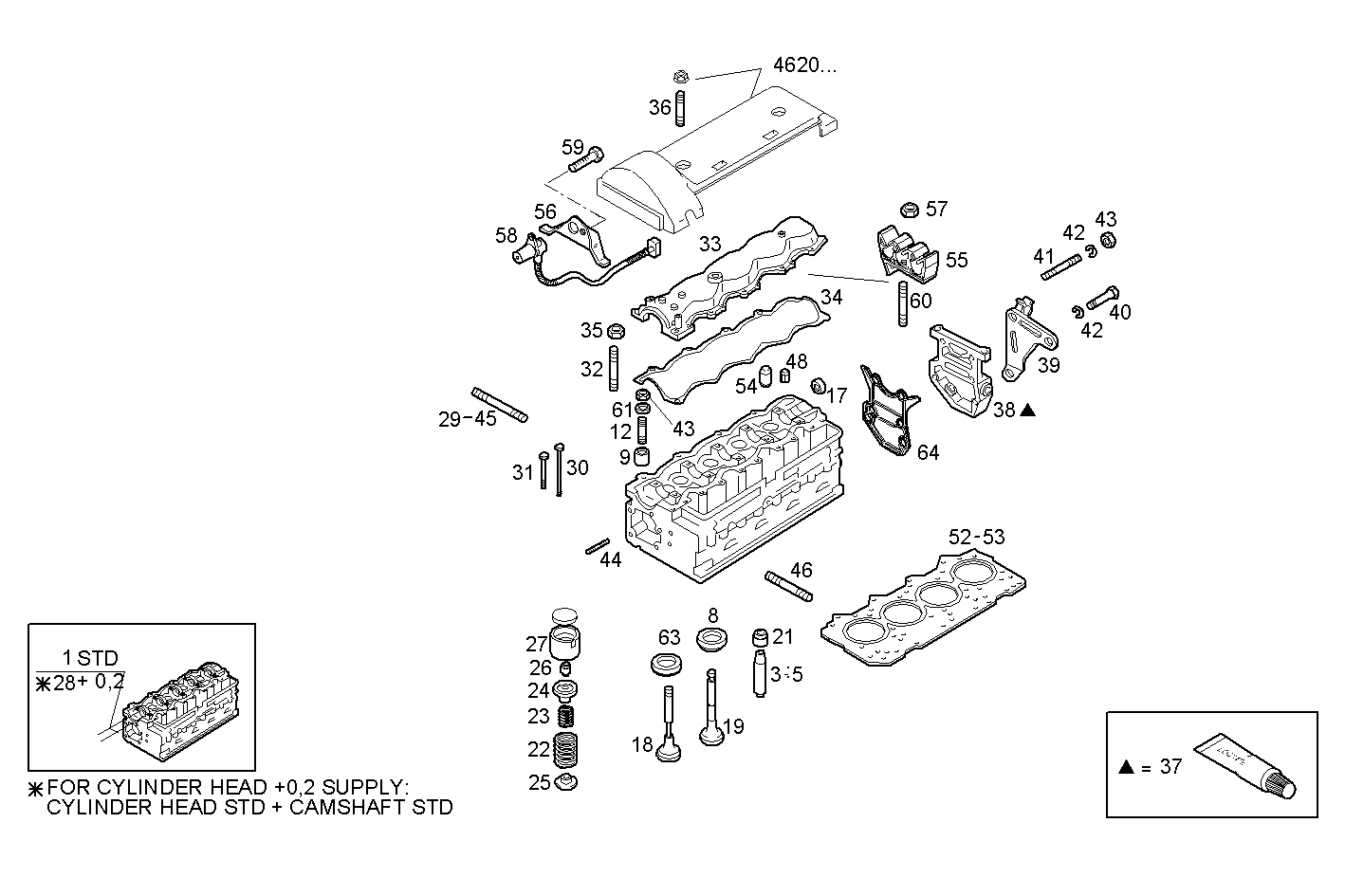

| Item |
Part number |
Description |
|
1 |
504007419 |
CYLINDER HEAD ASSY |
|
1 |
500311375 |
CYLINDER HEAD ASSY [UP TO # 3240893] |
|
3 |
4749397 |
VALVE GUIDE |
|
4 |
4749398 |
VALVE GUIDE +0.10 |
|
5 |
4749399 |
VALVE GUIDE +0,2 |
|
8 |
500311085 |
VALVE SEAT STD. EXHAUST |
|
9 |
98466492 |
DOWEL PIN [from 1671414] |
|
12 |
13543924 |
STUD M8X16X45 MM |
|
17 |
14326001 |
THREADED PLUG M10X1,25 |
|
18 |
7301820 |
INLET VALVE |
|
19 |
99432837 |
EXHAUST VALVE |
|
21 |
40101573 |
CAP |
|
22 |
4734533 |
ENGINE VALV.SPRING OUTER |
|
23 |
4723186 |
ENGINE VALV.SPRING INNER |
|
24 |
4734531 |
SPRING CAP TOP |
|
25 |
4749396 |
SPRING CAP BOTTOM |
|
26 |
4733465 |
VALVE CONE |
|
27 |
4733350 |
VALVE TAPPET |
|
28 |
504007420 |
CYLINDER HEAD ASSY +0,2 MM |
|
28 |
500311376 |
CYLINDER HEAD ASSY +0,2 MM [UP TO # 3240893] |
|
29 |
16746934 |
STUD |
|
30 |
4854648 |
CYL.HEAD STUD M12X1,25X163 MM |
|
31 |
99442951 |
CYL.HEAD STUD M12X1,25X90 MM |
|
32 |
17364724 |
STUD M6X15X25 MM |
|
33 |
99462587 |
CYL. HEAD COVER |
|
34 |
500388381 |
HEAD COVER GASKET |
|
35 |
17152725 |
NUT M6 |
|
36 |
16727624 |
STUD M6X16 MM |
|
37 |
2992504 |
ADHESIVE/STICKER LOCTITE |
|
38 |
500319459 |
COVER REAR CYLINDER HEAD |
|
39 |
500334777 |
FASTENING BRACKET |
|
40 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
41 |
16729724 |
STUD M8X40 MM |
|
42 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
43 |
17037931 |
HEXAGON NUT M8X1,25 |
|
44 |
16745124 |
STUD M6X25 MM |
|
45 |
16746734 |
STUD M8X25 MM |
|
46 |
13543224 |
STUD M8X16X18 MM |
|
48 |
4279430 |
THREADED BUSH M14X1,5X20 MM |
|
52 |
99432354 |
CYL.HEAD GASKET SP=1,2 MM |
|
53 |
99460983 |
CYL.HEAD GASKET SP=1,4 MM |
|
54 |
4279663 |
DOWEL PIN |
|
55 |
500375126 |
FASTENING BRACKET |
|
56 |
500324328 |
RETAINER |
|
57 |
17044625 |
HEXAGON NUT M6 |
|
58 |
500343018 |
ELECTRON.TRANSMITT |
|
59 |
16603677 |
HEXAGON BOLT M6X16 MM |
|
60 |
500309888 |
STUD |
|
61 |
4727119 |
WASHER |
|
63 |
500311083 |
VALVE SEAT STD. INTAKE |
|
64 |
500376326 |
FLAT ENGINE GASKET |
