8140SRC30.20A003

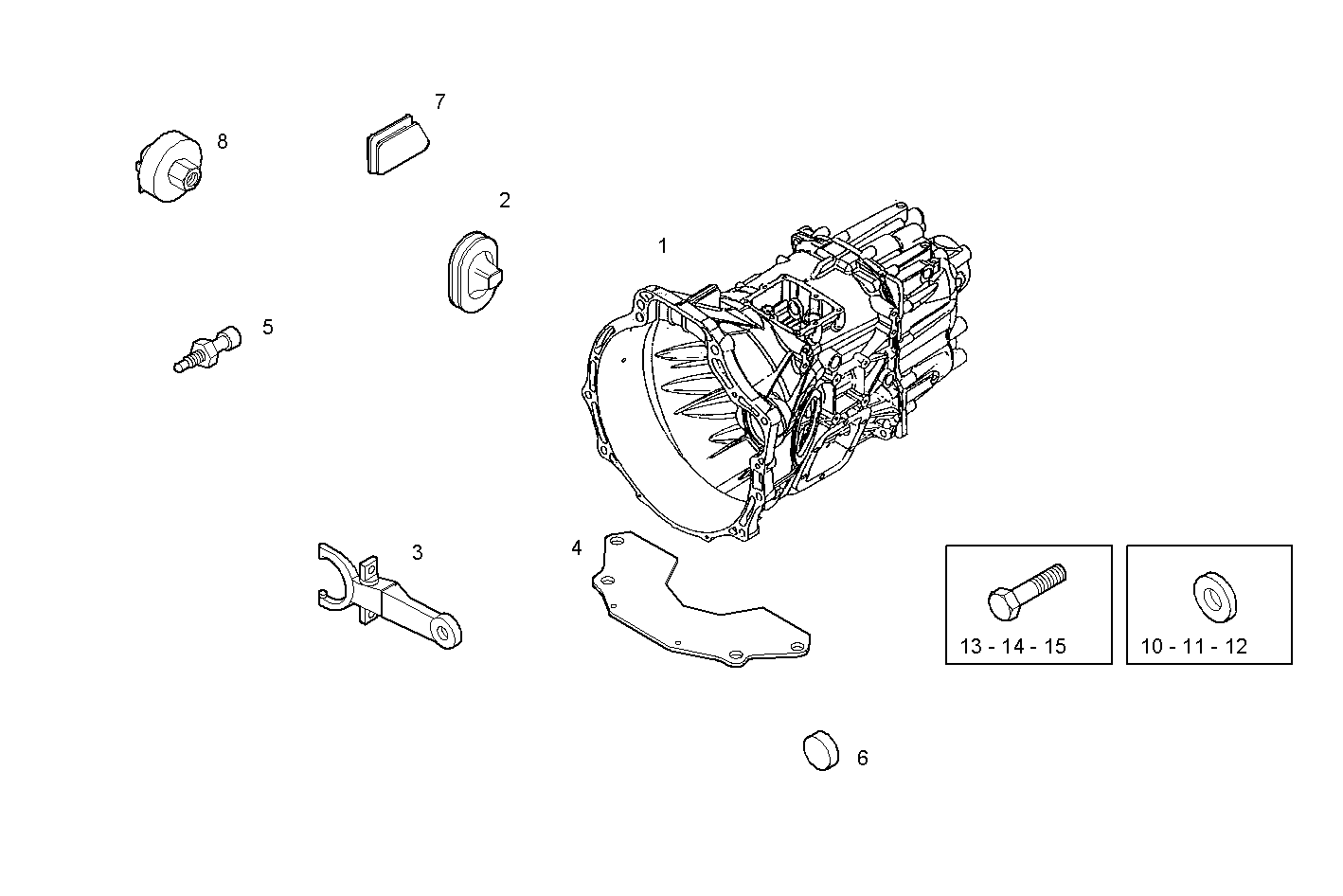

5301.002/01 TRANSMISSION
Item | Part number | Description |
---|---|---|
1 | 8870921 | GEAR BOX/I 6S-300 |
2 | 99479450 | PROTECTIVE HOOD |
3 | 99479447 | SUPPORT |
4 | 8867988 | PROTECTION LOWER |
5 | 504075820 | ELECTRON.TRANSMITT |
6 | 504066904 | PLUG |
7 | 500361500 | RUBBER PLUG |
8 | 500335678 | REAR LIGHT SWITCH |
10 | 17091074 | WASHER Ø12X24X2,8 MM |
11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
12 | 17088474 | WASHER Ø6X12 MM |
13 | 16605824 | HEXAGON BOLT M8X35 MM |
14 | 16603524 | SCREW M6X12 MM (8.8) |
15 | 15540924 | HEXAGON BOLT |
