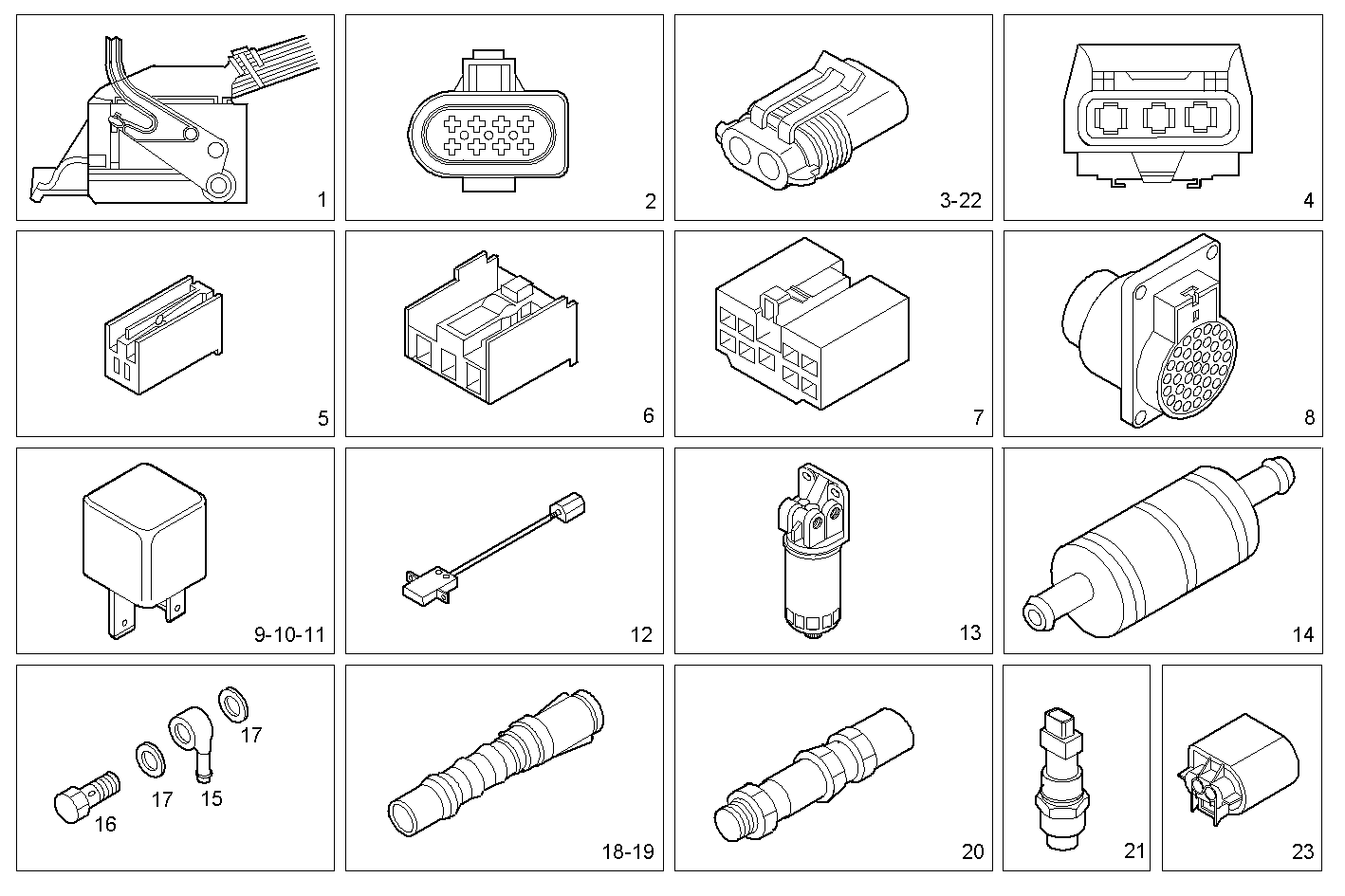

| Item |
Part number |
Description |
|
1 |
8029081 |
CONNECTION |
|
2 |
8029082 |
WIRE CONNECTOR |
|
3 |
8030572 |
CONNECTION |
|
4 |
8030575 |
CONNECTION ASSY |
|
5 |
8031429 |
CONNECTION ASSY |
|
6 |
8031430 |
CONNECTION ASSY |
|
7 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
8 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
9 |
500326618 |
RELAY 70A |
|
10 |
500341925 |
RELAY 50A - for EDC |
|
11 |
500326610 |
RELAY 10/20A - 15,5X23 |
|
12 |
99464594 |
SWITCH for "Blink code" |
|
13 |
504044712 |
FUEL FILTER [FROM 03-03-05] |
|
14 |
500318246 |
PREFILTER |
|
15 |
4864071 |
PIPE SOCKET |
|
16 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
17 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
18 |
500373710 |
PIPE SOCKET Ø8 MM |
|
19 |
500373711 |
PIPE SOCKET Ø10 MM |
|
20 |
500319244 |
LIGHT STOP SWITCH |
|
21 |
500365771 |
SWITCH |
|
22 |
8030573 |
CONNECTION ASSY |
|
23 |
8030896 |
CONNECTION assy for alternator |
