8140SRC30.20A005

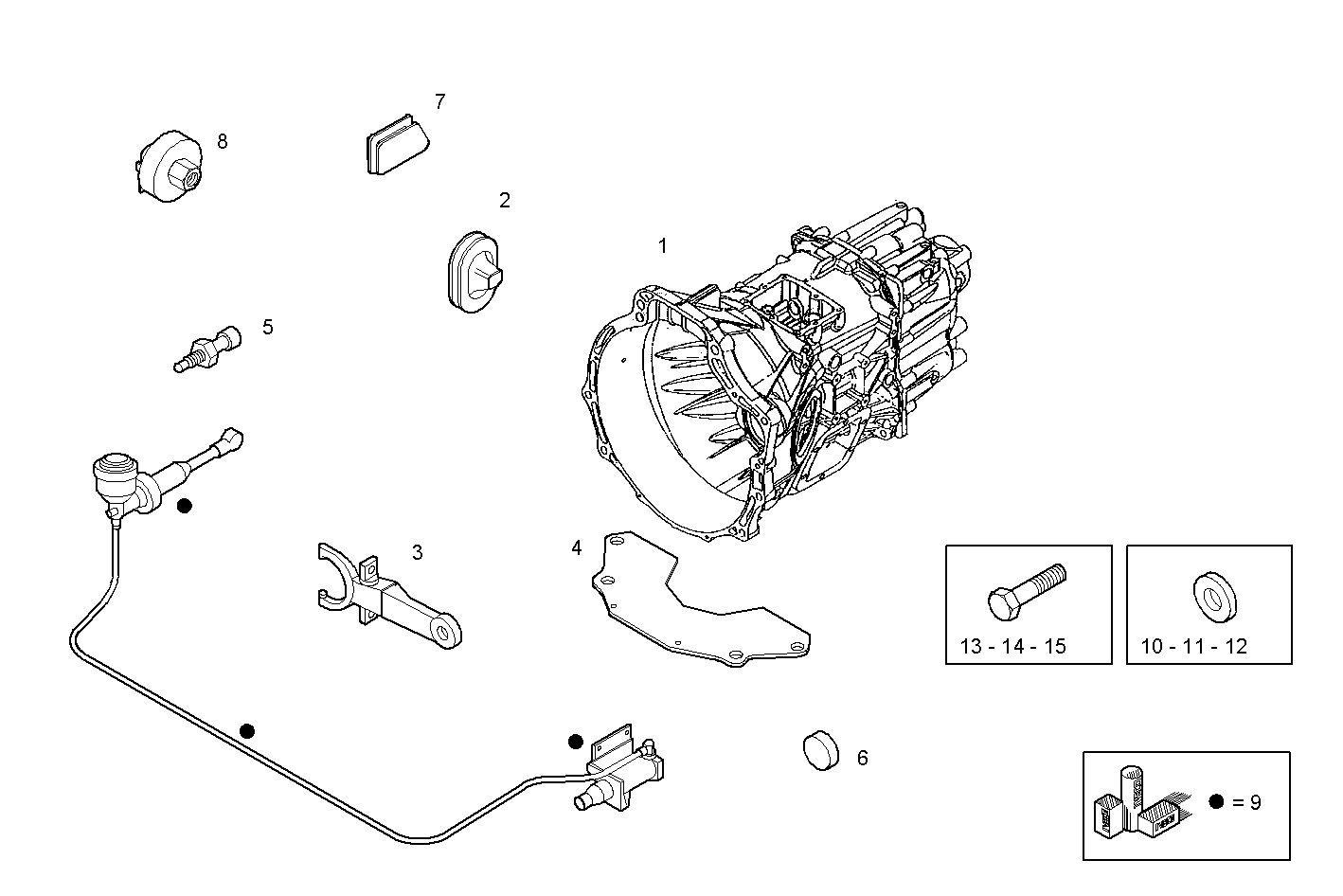

A27600002/01 TRANSMISSION

Iveco/FPT TRANSMISSION

Item Part number Description
1 8870921 GEAR BOX/I 6S-300
2 99479450 PROTECTIVE HOOD
3 99479447 SUPPORT
4 8867988 PROTECTION LOWER
5 41221269 ELECTRON.TRANSMITT
6 504066904 PLUG
7 500361500 RUBBER PLUG
8 500335678 REAR LIGHT SWITCH
9 500334937 KIT-HYDRAULIC CLUTCH CYL.
10 17091074 WASHER Ø12X24X2,8 MM
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 17088474 WASHER Ø6X12 MM
13 16605824 HEXAGON BOLT M8X35 MM
14 16603524 SCREW M6X12 MM (8.8)
15 15540921 HEXAGON BOLT M12X1,25X55 MM
