8140SRC30.20A005

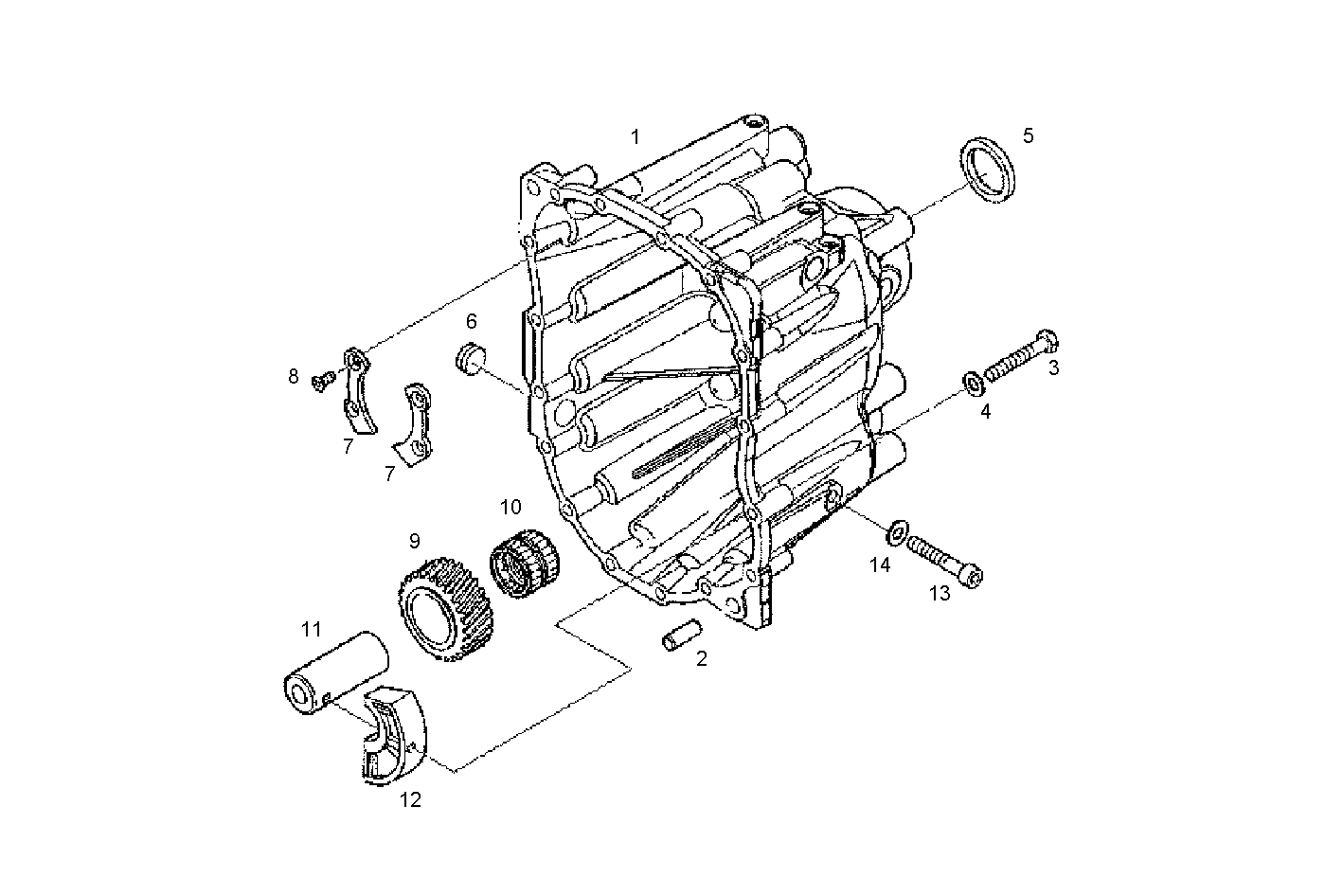

A27600002/02 TRANSMISSION

Iveco/FPT TRANSMISSION

Item Part number Description
1 42534938 TRANSMISSION CASE REAR
2 42534939 DOWEL PIN M6X25 MM
3 42534940 HEXAGON BOLT M8X55 MM
4 42491302 WASHER
5 93158332 WASHER
6 42534941 THREADED PLUG M22X1,5
7 42534937 LOCKING PLATE
8 42534934 SCREW M6X16 MM
9 42534942 REVERSE GEAR
10 42534943 ROLLER CAGE REVERSE
11 42534944 RETURN SHAFT REVERSE
12 42534945 SUPPORT
13 93193271 CYLIND-HEAD SCREW
14 8868623 WASHER Ø8,7X13 MM
