8140SRC30.20A005

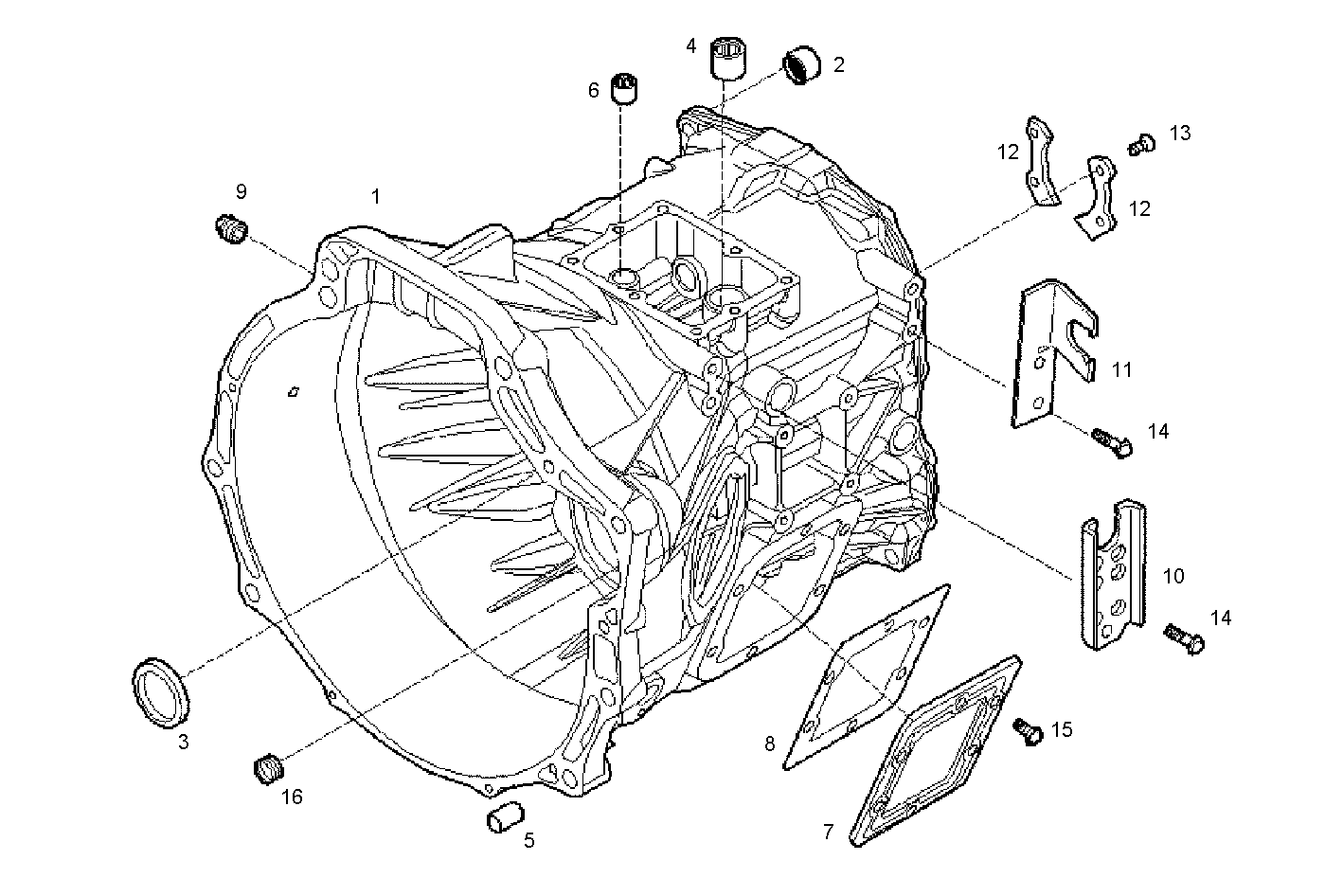

A27600002/03 TRANSMISSION

Iveco/FPT TRANSMISSION

Item Part number Description
1 42534930 TRANSMISSION CASE FRONT
2 42534931 BALL CAGE
3 42534932 SHAFT SEAL
4 9920781 GEARBOX BEARINGS
5 8869098 DOWEL PIN M12X1
6 42534933 ROLLER CAGE
7 42531475 LOWER G.BOX COVER
8 8190937 FLAT GEARBOX GKT
9 42534935 THREADED PLUG M22X1,5
10 8868800 SUPPORT
11 42534936 SUPPORT
12 42534937 LOCKING PLATE
13 42534934 SCREW M6X16 MM
14 93160889 HEXAGON BOLT M8X25 MM
15 1127052 HEXAGON BOLT M10X20 MM
