8140SRC30.20A005

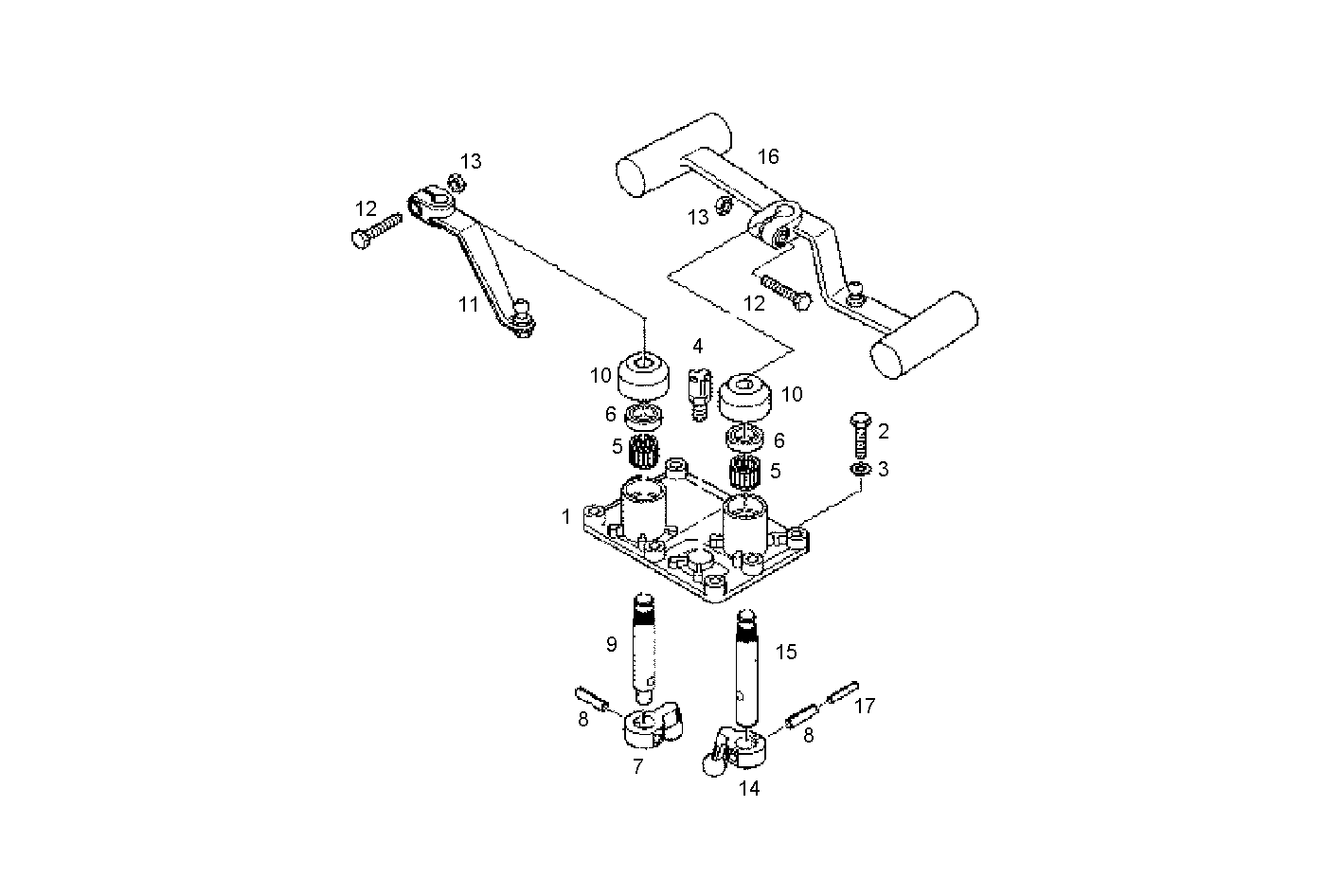

A27600002/04 TRANSMISSION

Iveco/FPT TRANSMISSION

Item Part number Description
1 8868879 HOUSING M22X1,5
2 93190345 HEXAGON BOLT M8X35 MM
3 42491302 WASHER
4 9931584 BREATHER
5 42534933 ROLLER CAGE
6 42534975 SHAFT SEAL
7 8868876 LEVER M22X1,5
8 42534974 DOWEL PIN Ø8 MM
9 8868878 GEAR SHIFT SHAFT M22X1,5
10 8868600 CAP
11 42534976 GEARSHIFT LEVER
12 42534977 SCREW M8X40
13 42491308 NUT
14 8868875 LEVER M22X1,5
15 8868877 GEAR SHIFT SHAFT M22X1,5
16 42534978 GEARSHIFT LEVER
17 17259470 DOWEL PIN Ø8 MM L=32 MM
18 17256070 DOWEL PIN Ø5 MM L=32 MM
