8140SRC30.20A005

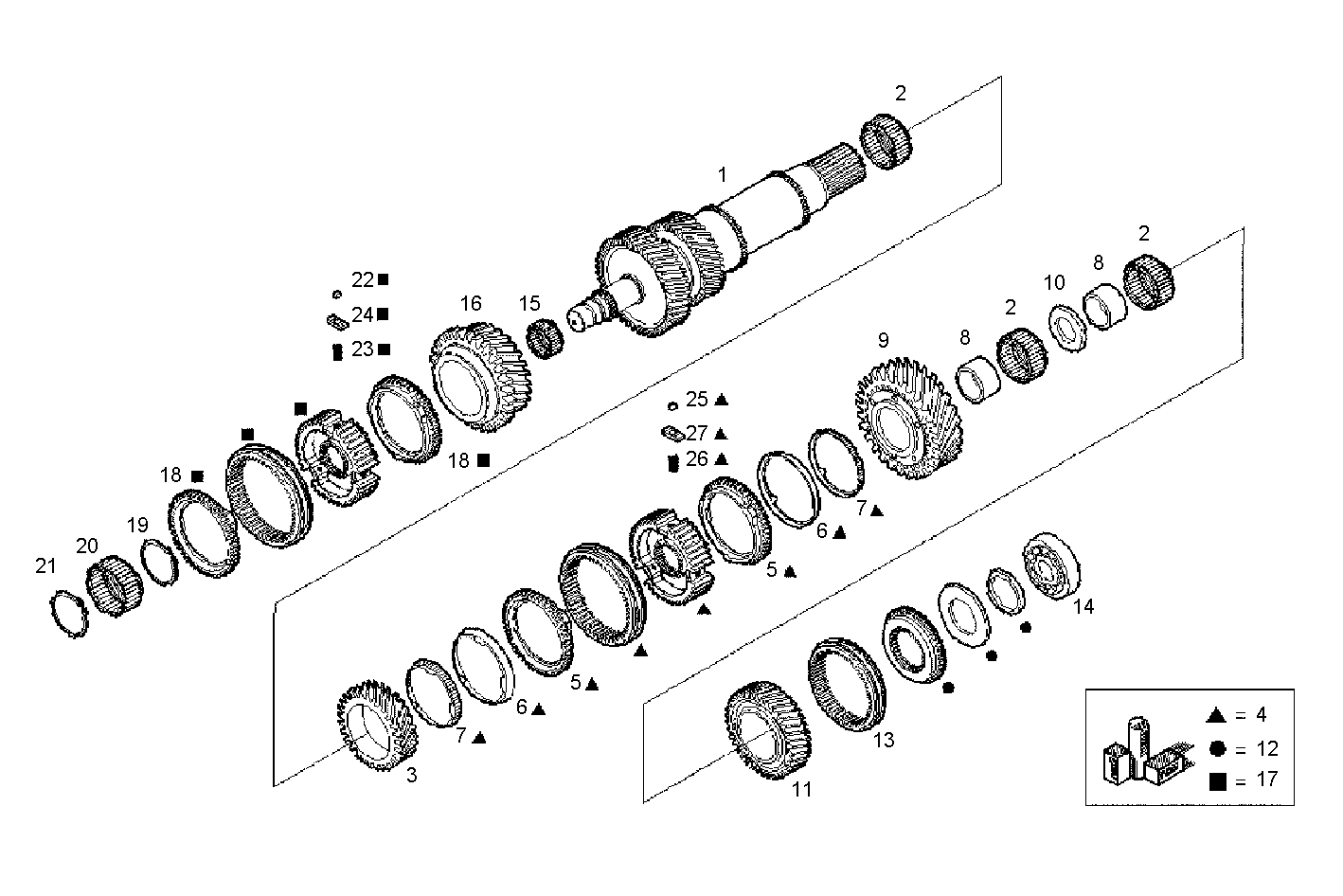

A27600002/08 TRANSMISSION
| Item |
Part number |
Description |
|
1 |
8869614 |
MAIN SHAFT |
|
2 |
8869670 |
ROLLER CAGE |
|
3 |
8869595 |
SPLITTER GEAR |
|
4 |
42545966 |
KIT-SYNCHRONIZER |
|
5 |
8869662 |
SYNCHRONIZER |
|
6 |
8869665 |
RING |
|
7 |
8869718 |
RING |
|
8 |
8869659 |
PLUG-IN SLEEVE |
|
9 |
8869596 |
SPLITTER GEAR |
|
10 |
8870390 |
STOP WASHER |
|
11 |
8870389 |
SPLITTER GEAR |
|
12 |
8870392 |
SYNCHROMESH BODY |
|
13 |
42538149 |
SYNCHRONIZ.COMPLET |
|
14 |
8869668 |
ROLLER BEARING |
|
15 |
8869671 |
ROLLER CAGE |
|
16 |
8869594 |
SPLITTER GEAR |
|
17 |
42545965 |
KIT-SYNCHRONIZER |
|
18 |
8869663 |
SYNCHRONIZER |
|
19 |
42536826 |
CIRCLIP |
|
20 |
8869673 |
ROLLER CAGE |
|
21 |
42535017 |
CIRCLIP |
|
22 |
8870249 |
BALL |
|
23 |
8871885 |
SPRING |
|
24 |
8869720 |
DOWEL |
|
25 |
9926356 |
BALL |
|
26 |
8869716 |
SPRING |
|
27 |
8869717 |
DOWEL |
