8140SRC30.40A001

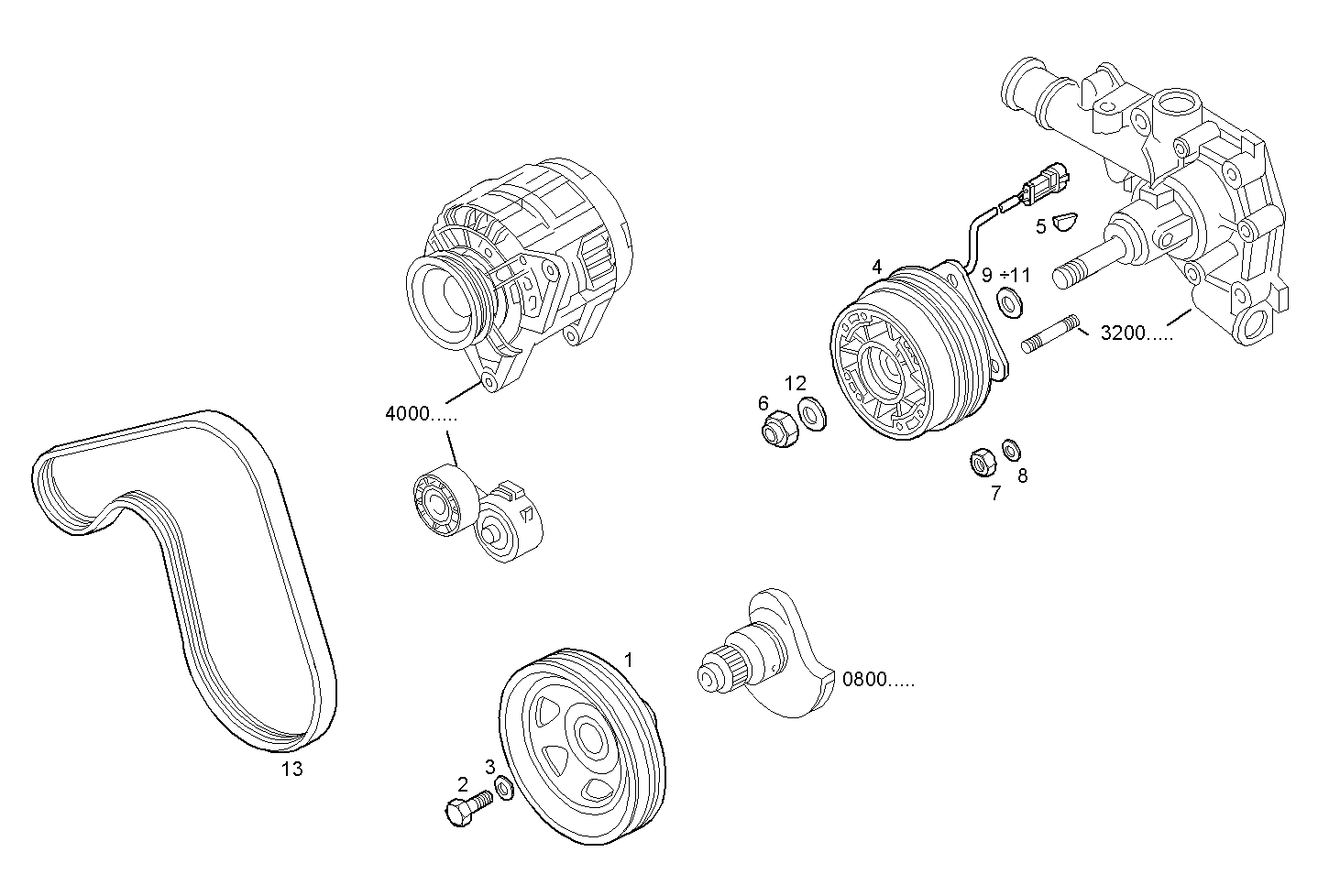

3400.028 WATER PUMP DRIVE
Item | Part number | Description |
---|---|---|
1 | 500332296 | CRANKSHAFT PULLEY |
2 | 98419203 | SCREW M20X1,5X58 MM |
3 | 500346011 | SPACING BAR |
4 | 99473900 | WATER PUMP PULLEY |
5 | 10205710 | KEY 3X5 MM |
6 | 500333918 | HEXAGON NUT M14X1,5 |
7 | 17037821 | HEXAGON NUT M6X1 |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 98493778 | WASHER Ø15X25 SP=3,55 MM |
10 | 98437565 | WASHER Ø25 MM |
11 | 98493779 | WASHER Ø15X25 SP=4,45 MM |
12 | 17092074 | SPRING WASHER Ø14X32 MM SP=4 MM |
13 | 500368902 | WATER PUMP BELT |
