8140SRC33.10A001

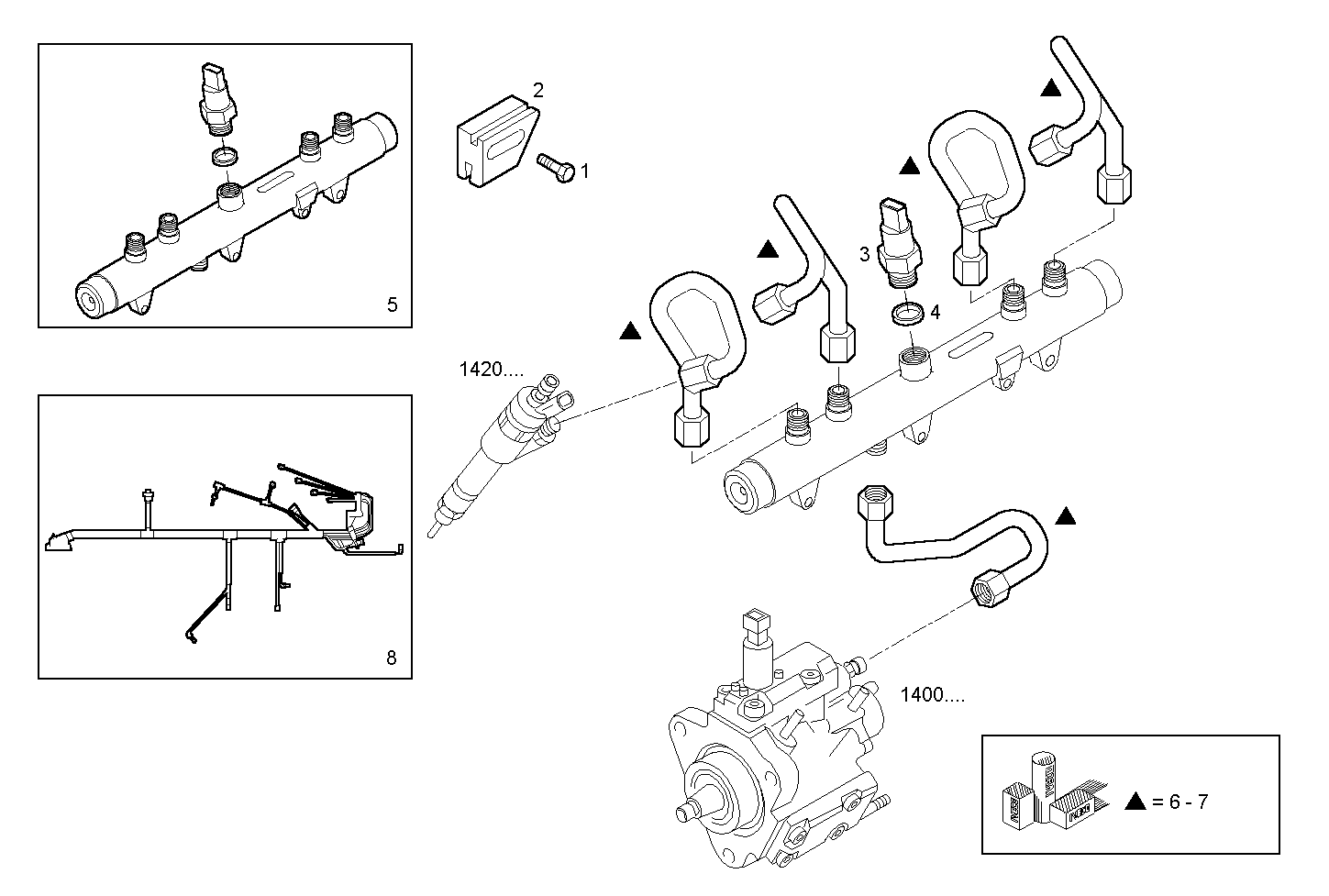

2020.132 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 16596924 | HEXAGON BOLT M6X10 MM |
| 2 | 500315270 | CHOCK |
| 3 | 500372234 | SENSOR |
| 4 | 500372236 | WASHER |
| 5 | 500394220 | HYDRAULIC CYLINDER ASSY [UP TO # 3887457] |
| 6 | 504070031 | INJECTION LINE SET ALTERNATIVE USE [UP TO # 3887457] |
| 7 | 504088076 | INJECTION LINE SET |
| 7 | 504028984 | INJECTION LINE SET ALTERNATIVE USE [up to # 3887457] |
| 8 | 504032955 | SET OF WIRING ENGINE [FROM 3487099] |
