8140SRC33.10A001

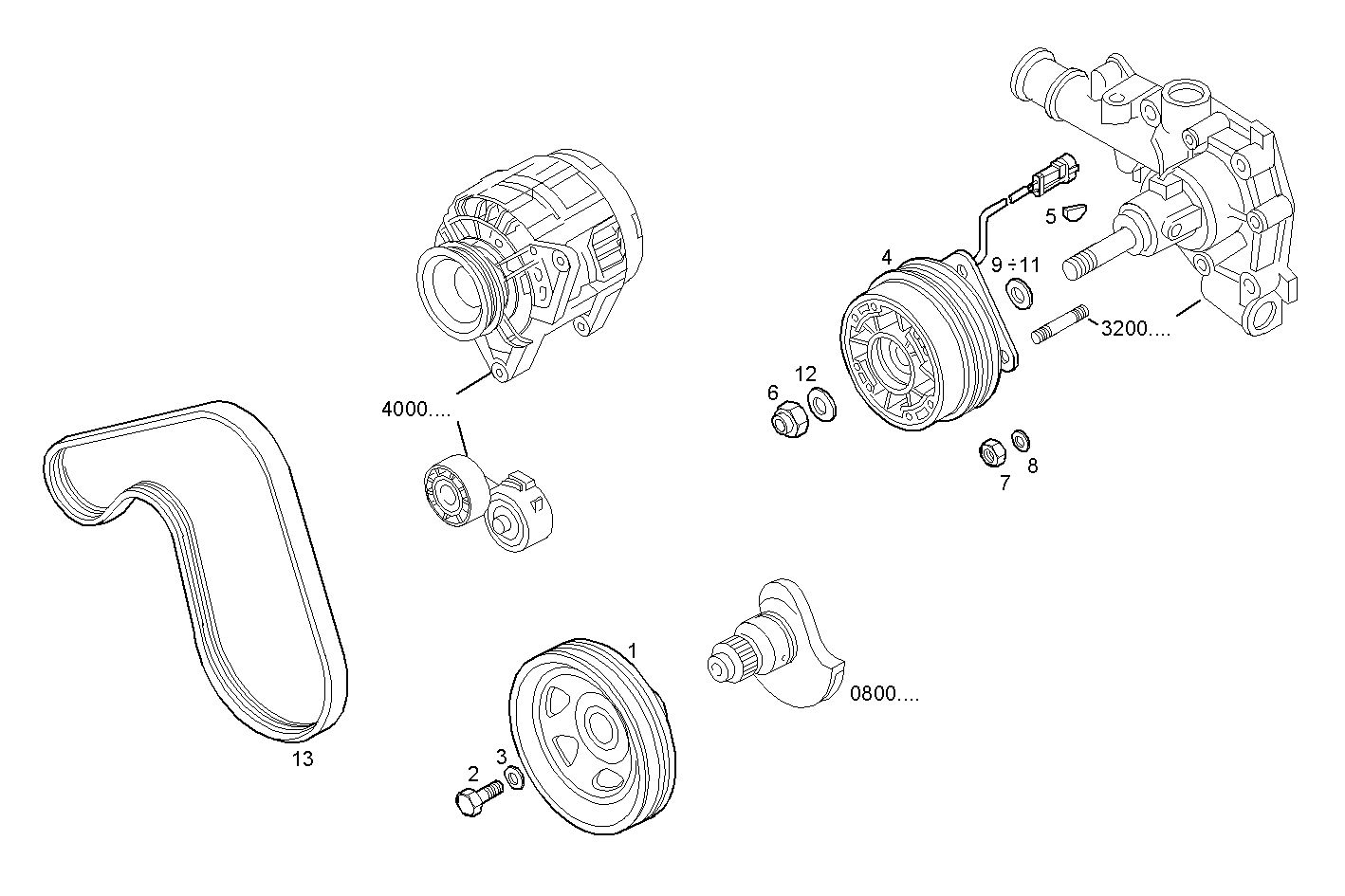

3400.035 WATER PUMP DRIVE

Iveco/FPT WATER PUMP DRIVE

Item Part number Description
1 500332830 CRANKSHAFT PULLEY
2 98419203 SCREW M20X1,5X58 MM
3 98429488 SPACING BAR
4 99473900 WATER PUMP PULLEY
5 10205710 KEY 3X5 MM
6 500333918 HEXAGON NUT M14X1,5
7 17037821 HEXAGON NUT M6X1
8 17088474 WASHER Ø6X12 MM
9 98493778 WASHER Ø15X25 SP=3,55 MM
10 98437565 WASHER Ø25 MM
11 98493779 WASHER Ø15X25 SP=4,45 MM
12 17092074 SPRING WASHER Ø14X32 MM SP=4 MM
13 500368902 WATER PUMP BELT
14 17044625 HEXAGON NUT M6
