8140SRC36.10A006

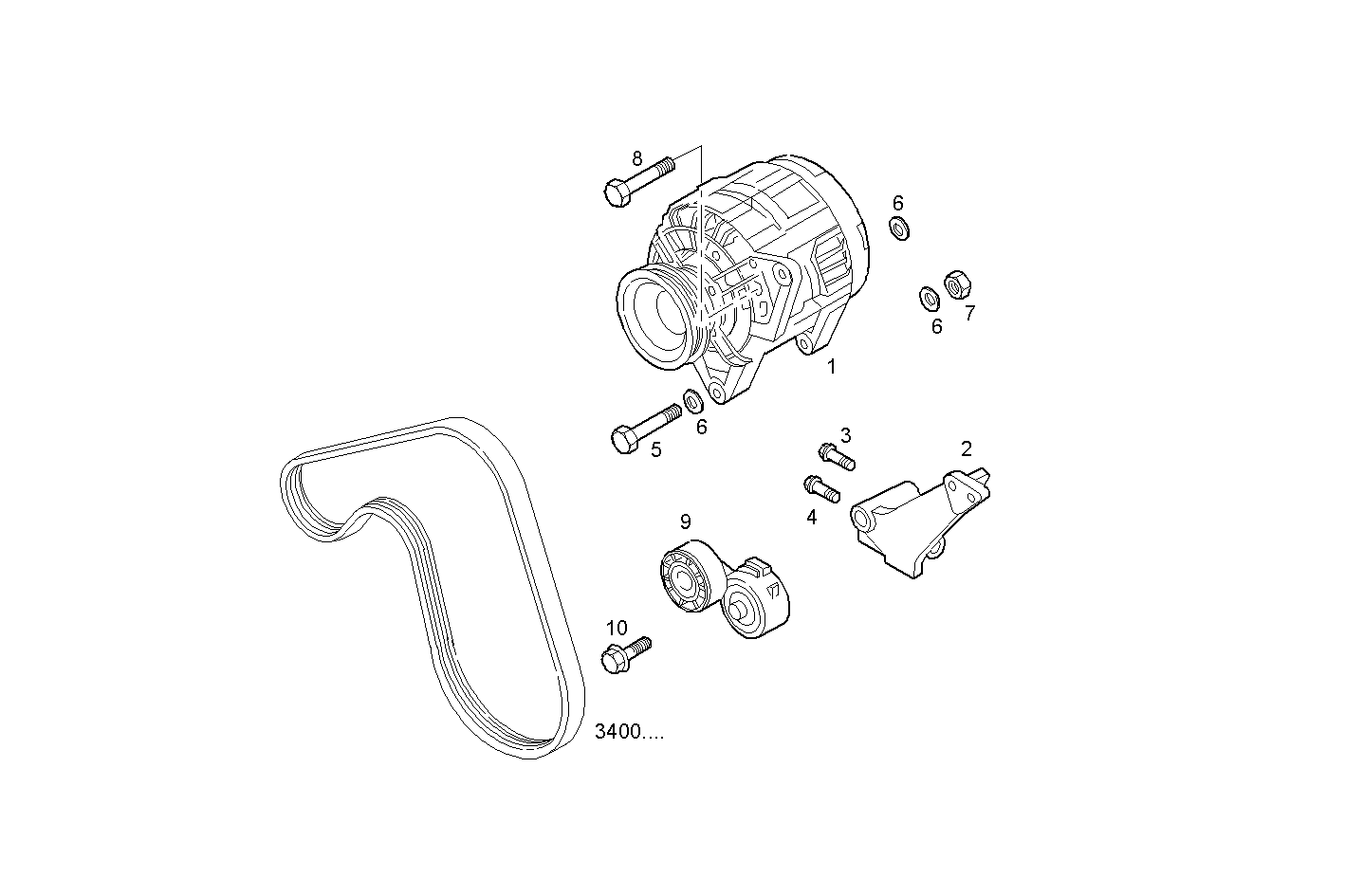

4000.195 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 500335719 | ALTERNATOR |
2 | 500372423 | GENERATOR SUPPORT |
3 | 16289524 | HEXAGON BOLT |
4 | 16288734 | HEXAGON BOLT M10X1,25X40 MM |
5 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
6 | 17097124 | WASHER 10x21 |
7 | 14059421 | HEXAGON NUT M10X1,25 |
8 | 10923624 | SCREW |
9 | 500332622 | BELT TENSIONER |
10 | 16592225 | HEXAGON BOLT M8X55 MM |
