8140SRC36.10A006

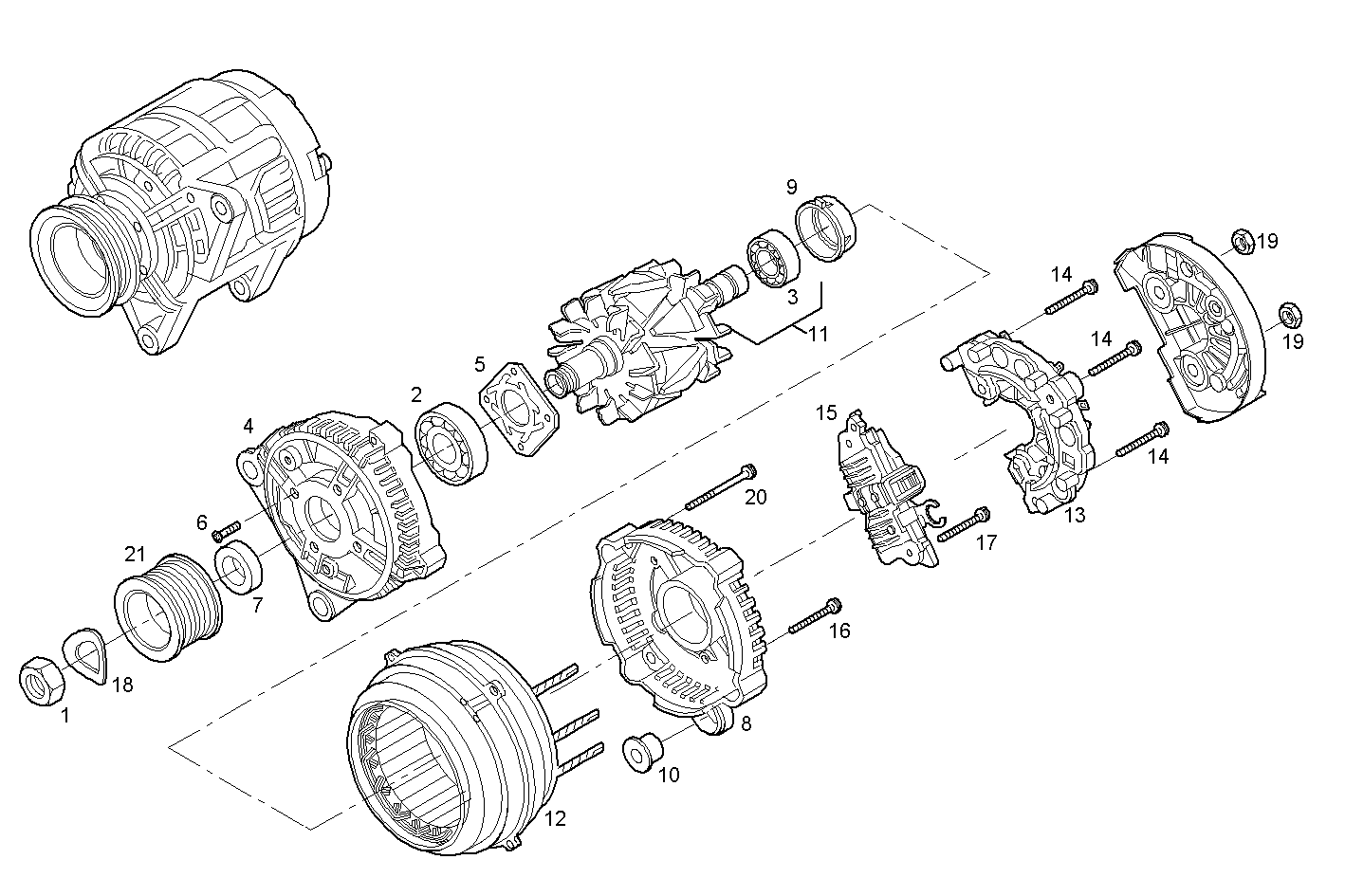

4030.008 GENERATOR (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
1113169 |
NUT M16X1,5 |
|
2 |
2991636 |
ENGINE BEARINGS |
|
3 |
2991637 |
ENGINE BEARINGS |
|
4 |
42537056 |
GENERATOR SUPPORT |
|
5 |
42537057 |
PLATE |
|
6 |
42537058 |
C'SUNK SCREW |
|
7 |
42533805 |
SPACING BAR |
|
8 |
42537670 |
GENERATOR SUPPORT |
|
9 |
42471431 |
BUSH |
|
10 |
42471432 |
BUSH |
|
11 |
42471433 |
GENERATOR ROTOR ASSY |
|
12 |
42471434 |
GENERATOR STATOR |
|
13 |
42471435 |
RECTIFIER BRIDGE |
|
14 |
42537878 |
SCREW |
|
15 |
42534878 |
VOLTAGE REGULATOR |
|
16 |
42536305 |
SCREW |
|
17 |
42471436 |
SCREW |
|
18 |
42531183 |
SPRING WASHER |
|
19 |
42533817 |
HEXAGON NUT |
|
20 |
42533819 |
SCREW |
|
21 |
42534866 |
GENERATOR PULLEY |
|
22 |
42533816 |
GENERATOR SUPPORT |
