8140SRC36.10A006

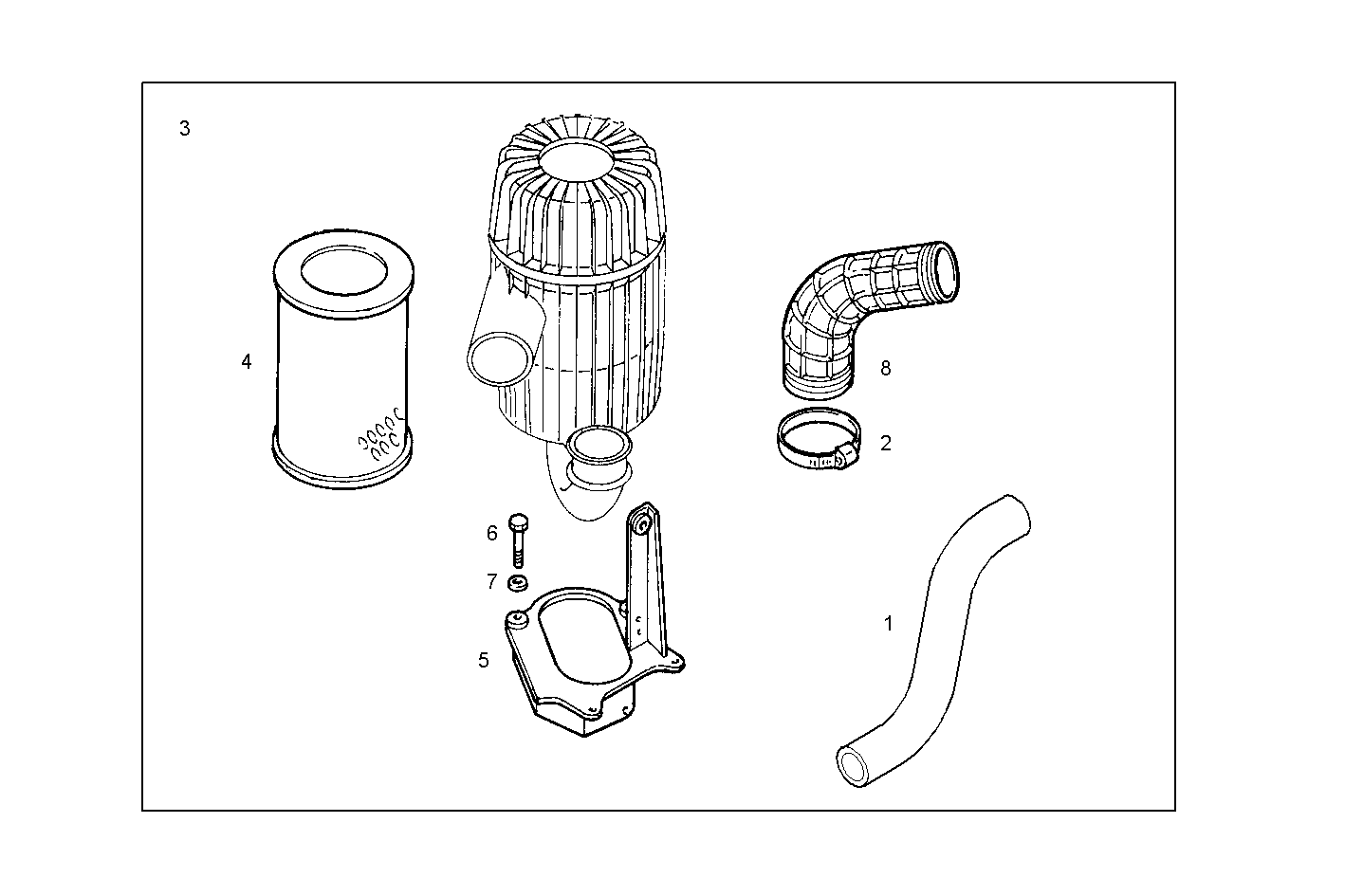

8600.142/03 ACCESSORIES
Item | Part number | Description |
---|---|---|
1 | 500396509 | BREATHER PIPE |
2 | 13129870 | CLIP |
3 | 504023259 | AIR CLEANER ASSY |
4 | 1903669 | AIR FILTER ELEMENT |
5 | 504023257 | FASTENING BRACKET |
6 | 16604024 | HEXAGON BOLT M6X35 MM |
7 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
8 | 99475933 | FILTER HOSE |
