8140SRM15.10

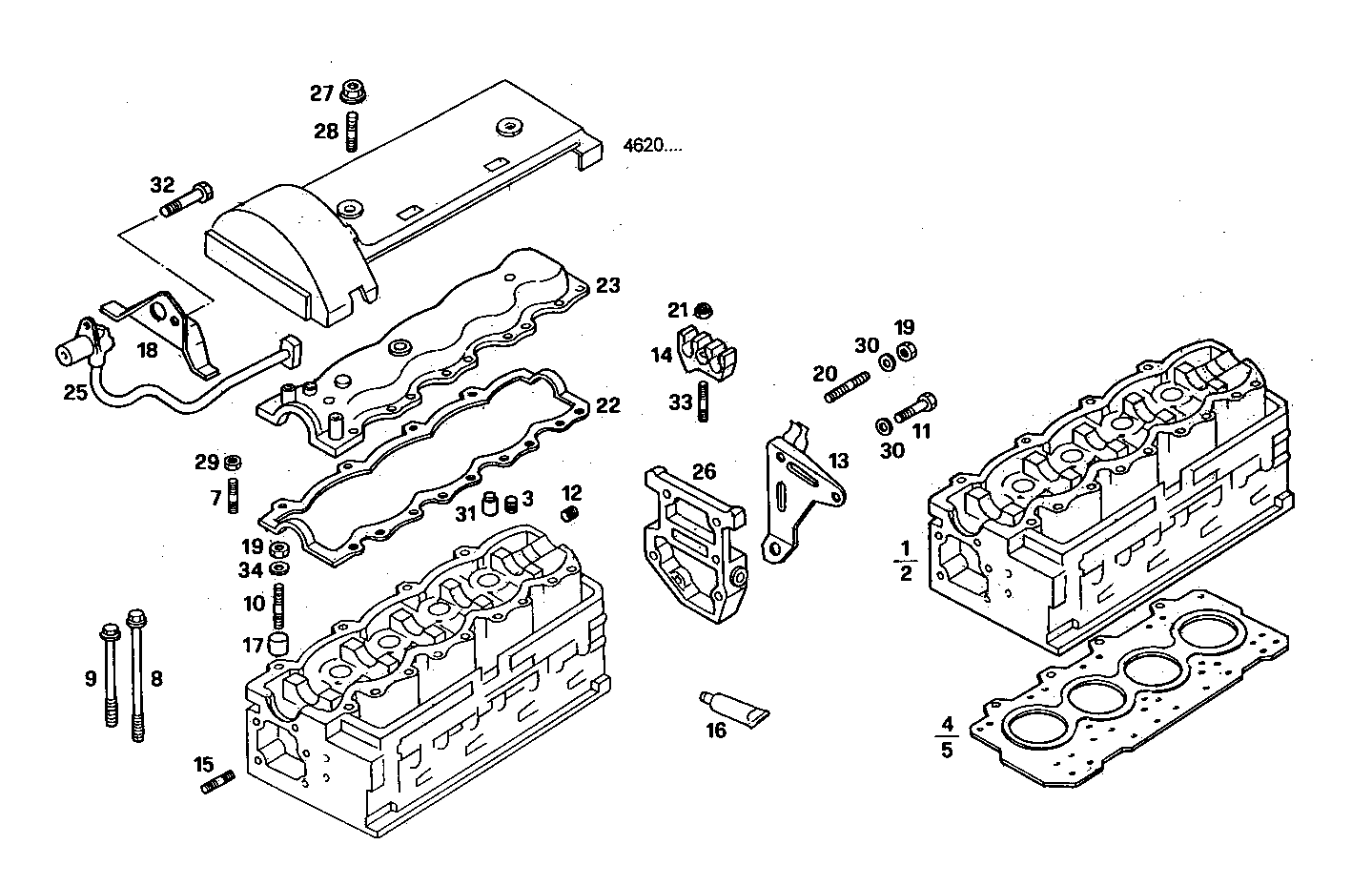

0600.157/01 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 504007419 CYLINDER HEAD ASSY
2 504007420 CYLINDER HEAD ASSY +0,2 MM
3 4279430 THREADED BUSH M14X1,5X20 MM
4 99432354 CYL.HEAD GASKET SP=1,2 MM
5 99460983 CYL.HEAD GASKET SP=1,4 MM
7 17364824 STUD M6X30 MM
8 4854648 CYL.HEAD STUD M12X1,25X163 MM
9 99442951 CYL.HEAD STUD M12X1,25X90 MM
10 13543924 STUD M8X16X45 MM
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 14326001 THREADED PLUG M10X1,25
13 500334777 FASTENING BRACKET
14 500343593 FASTENING BRACKET
15 16745124 STUD M6X25 MM
16 93162432 ADHESIVE/STICKER
17 98466492 DOWEL PIN [from 1671414]
18 500324328 RETAINER
19 17037931 HEXAGON NUT M8X1,25
20 16729724 STUD M8X40 MM
21 17044621 HEXAGON NUT M6
22 500388381 HEAD COVER GASKET
23 99462587 CYL. HEAD COVER
25 500343018 ELECTRON.TRANSMITT
26 500319459 COVER REAR CYLINDER HEAD
27 98439382 NUT
28 16727624 STUD M6X16 MM
29 17152721 NUT M6
30 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 4279663 DOWEL PIN
32 16603624 HEXAGON BOLT M6X16 MM (8.8)
33 500309888 STUD
34 4727119 WASHER
