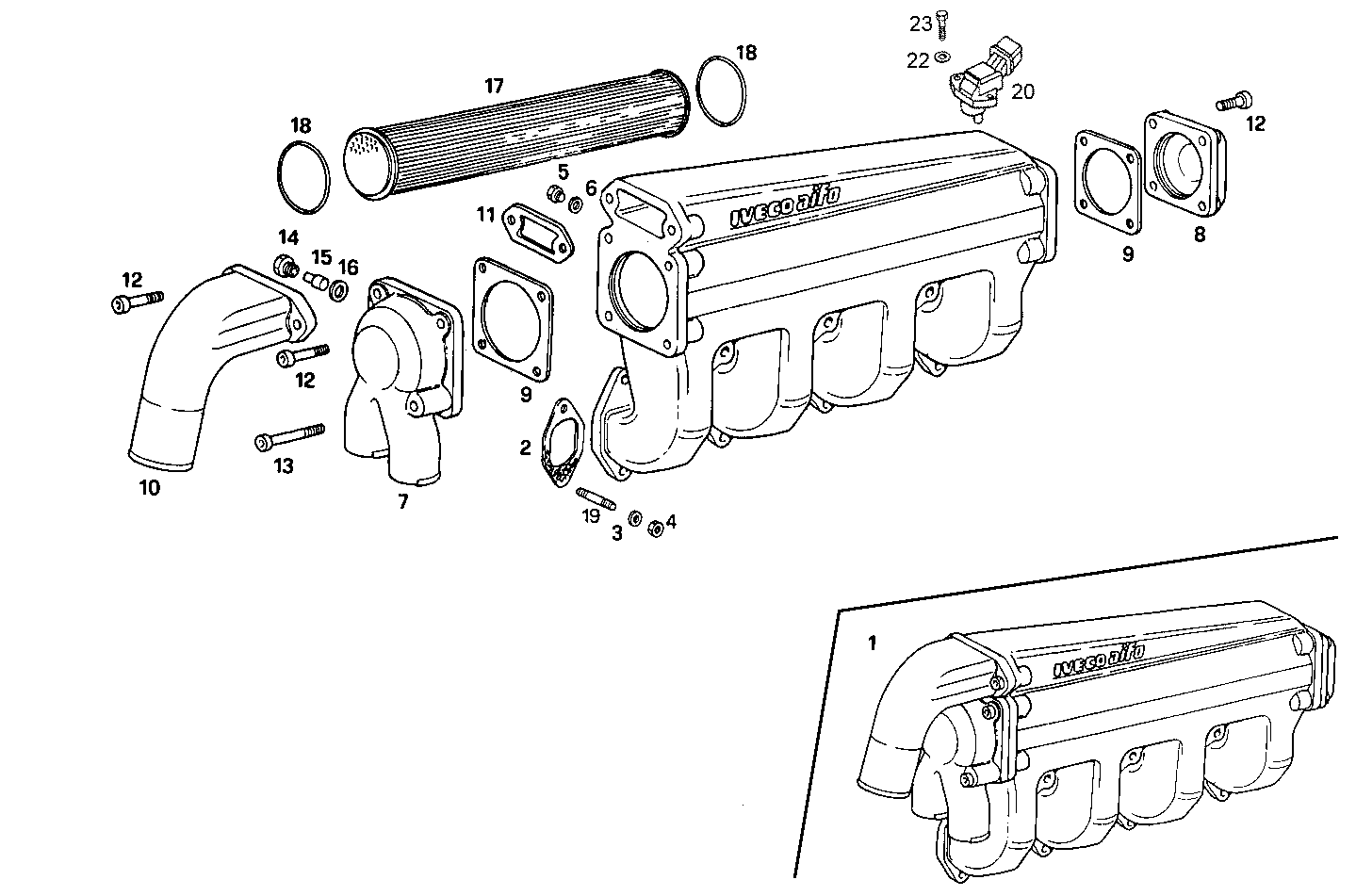

| Item |
Part number |
Description |
|
1 |
8024898 |
INTAKE ELBOW ASSY |
|
2 |
98425767 |
INTAKE ELBOW GASK. SP=0,8 MM |
|
3 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
4 |
17037931 |
HEXAGON NUT M8X1,25 |
|
5 |
16992240 |
THREADED PLUG M12X1,5 |
|
6 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
7 |
8093586 |
HEAT EXCHANG.COVER |
|
8 |
8093587 |
HEAT EXCHANG.COVER |
|
9 |
8093590 |
GASKET |
|
10 |
8028528 |
AIR PIPE/DUCT |
|
11 |
8093592 |
GASKET |
|
12 |
8093594 |
SCREW |
|
13 |
8093595 |
SCREW |
|
14 |
8093596 |
PLUG |
|
15 |
8093597 |
SACRIFICAL ANODE |
|
16 |
8093598 |
GASKET |
|
17 |
8093588 |
TUBE STACK |
|
18 |
8093593 |
O-RING |
|
19 |
16746724 |
STUD M8X25 MM |
|
20 |
99455421 |
SENSOR |
|
22 |
17094724 |
WASHER Ø6X12 MM |
|
23 |
16603677 |
HEXAGON BOLT M6X16 MM |
