8140SRM15.10

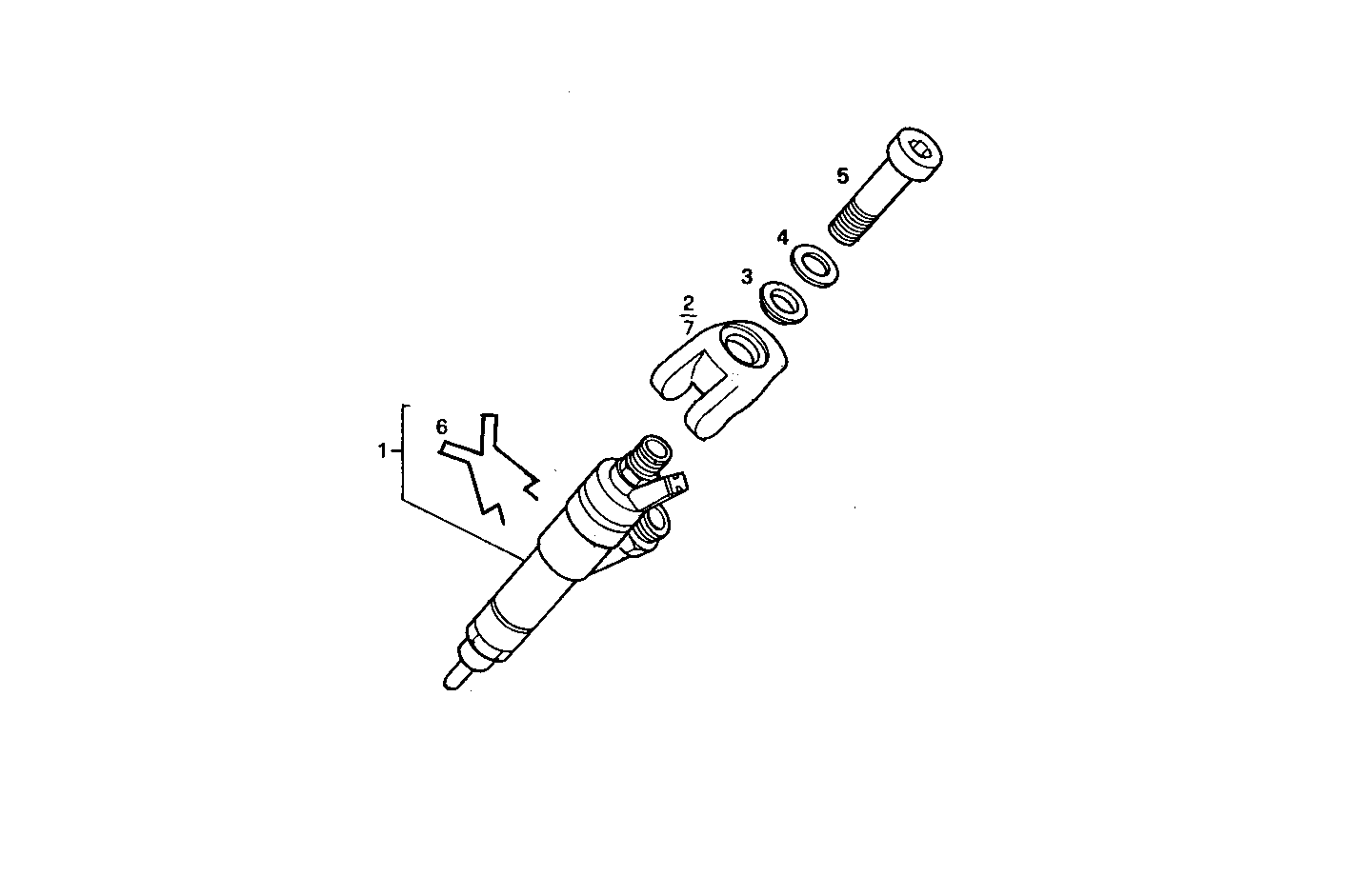

1420.101 INJECTORS

Iveco/FPT INJECTORS

Item Part number Description
1 500313105 ELECTRO INJECTOR ASSY
2 99453918 RETAINER [UP TO # 3240893]
3 756671 WASHER
4 17090274 WASHER Ø10X20 MM
5 14307924 CYLIND-HEAD SCREW M10X1,25X50 MM
6 42534603 LEVER
7 500388113 RETAINER
