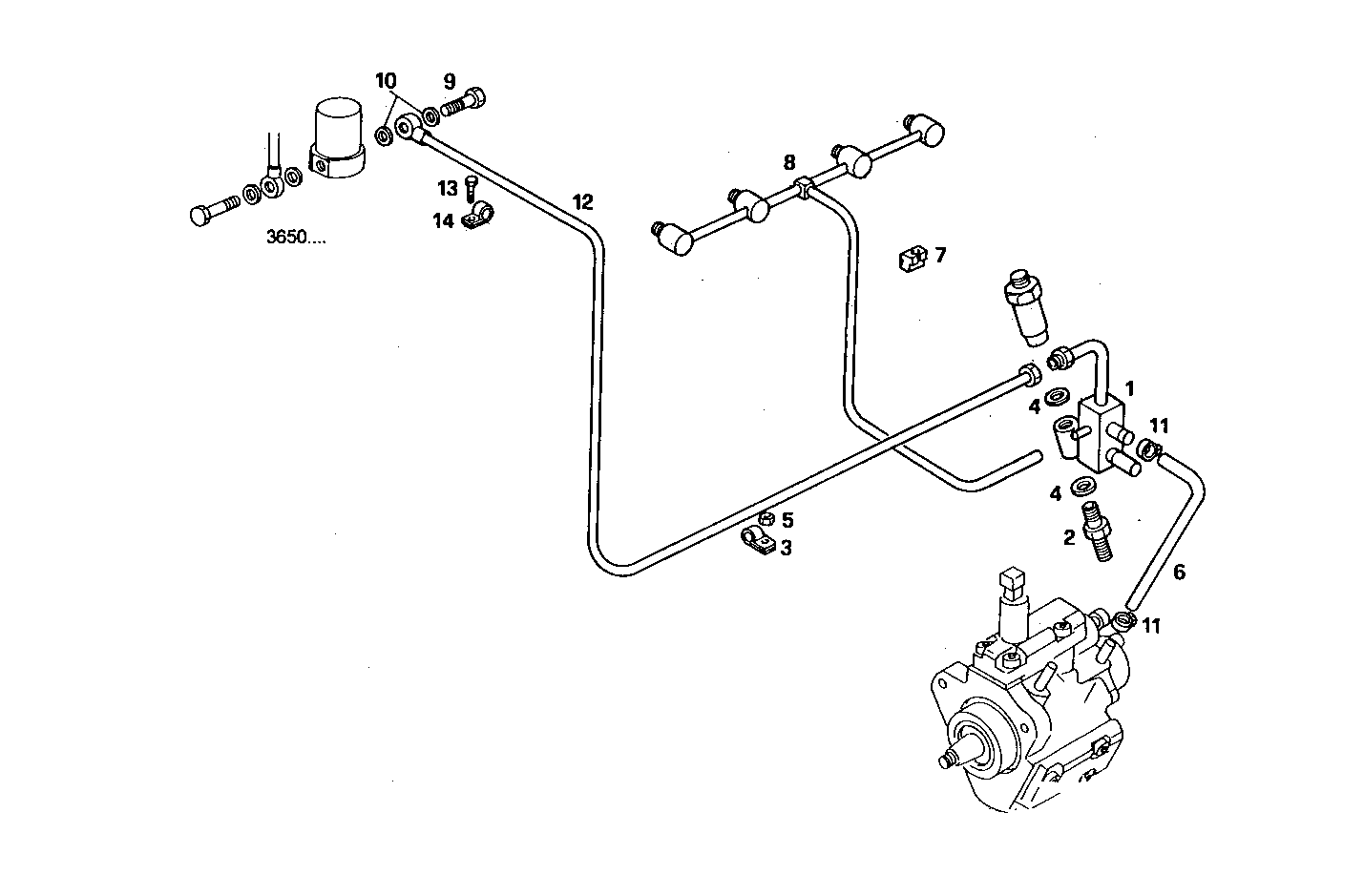

2030.174 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 500335993 FUEL LINE
2 500335996 SCREW CONNECTOR
3 17316190 PIPE CLIP Ø6 MM
4 4858609 WASHER Ø16X22 MM SP=1,5 MM
5 17044731 HEXAGON NUT M8
6 500332712 RUBBER SLEEVE Ø8 MM
7 500326922 CHOCK
8 500322331 FUEL LINE
9 7303136 SCREW CONNECTOR
10 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
11 18088192 CLIP m10-16
12 8032413 FUEL LINE
13 16596924 HEXAGON BOLT M6X10 MM
14 17314590 RETAINER Ø6 MM
