8140SRM15.10

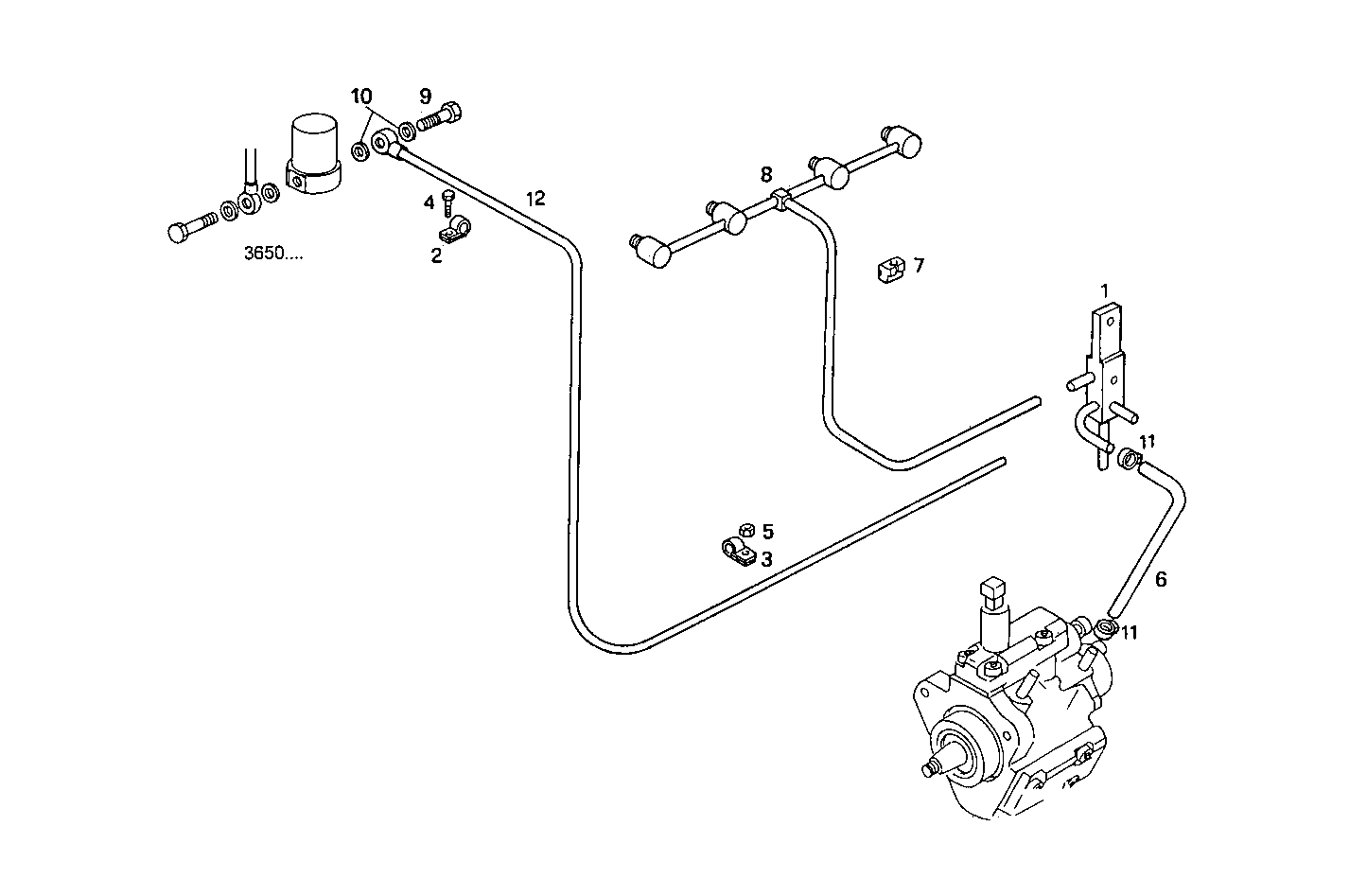

2030.177 FUEL LINES [D ...] [from...]
| Item | Part number | Description |
|---|---|---|
| 1 | 504007143 | FUEL LINE |
| 2 | 17314590 | RETAINER Ø6 MM |
| 3 | 17316190 | PIPE CLIP Ø6 MM |
| 4 | 16596924 | HEXAGON BOLT M6X10 MM |
| 5 | 17044731 | HEXAGON NUT M8 |
| 6 | 500332712 | RUBBER SLEEVE Ø8 MM |
| 7 | 500398051 | CHOCK |
| 8 | 504007621 | FUEL LINE |
| 9 | 7303136 | SCREW CONNECTOR |
| 10 | 10260160 | SEAL GASKET Ø10X14 MM SP=1 MM |
| 11 | 18088192 | CLIP m10-16 |
| 12 | 8032413 | FUEL LINE |
