8140SRM15.10

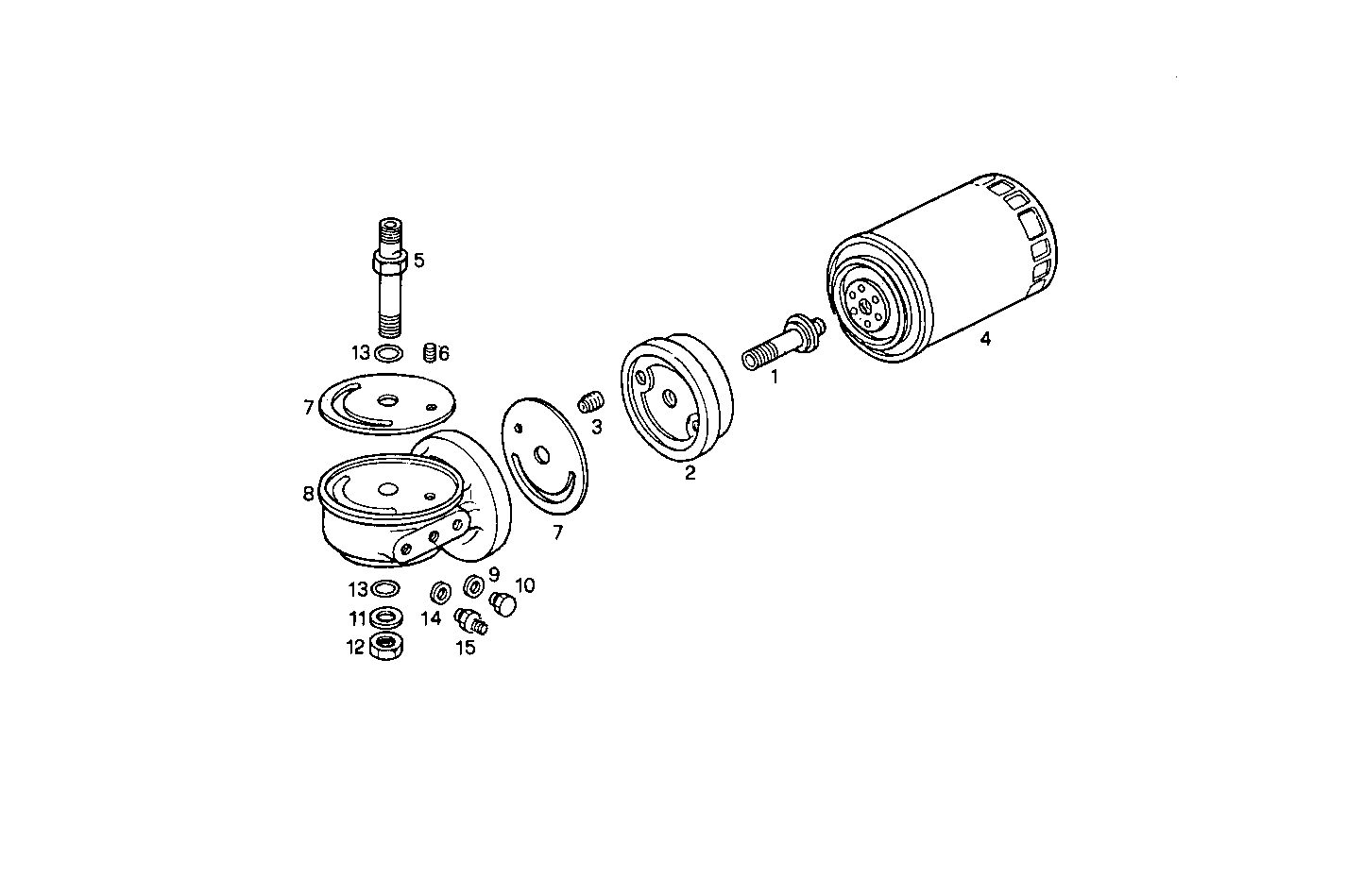

3020.069 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 7301914 | THREADED UNION M20X1,5 - 3/4" |
| 2 | 7301915 | SPACER |
| 3 | 4737557 | DOWEL PIN |
| 4 | 1903628 | OIL FILTER CARTRIDGE |
| 5 | 4919416 | PIPE SOCKET |
| 6 | 8106599 | DOWEL PIN |
| 7 | 8009900 | GASKET |
| 8 | 4934430 | SUPPORT |
| 9 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 10 | 16992411 | THREADED PLUG M16X1,5 |
| 11 | 16666104 | WASHER |
| 12 | 17039421 | NUT M20X1,5 |
| 13 | 17288381 | O-RING Ø20,22X3,53 MM |
| 14 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 15 | 4935561 | PIPE SOCKET |
