8140SRM15.10

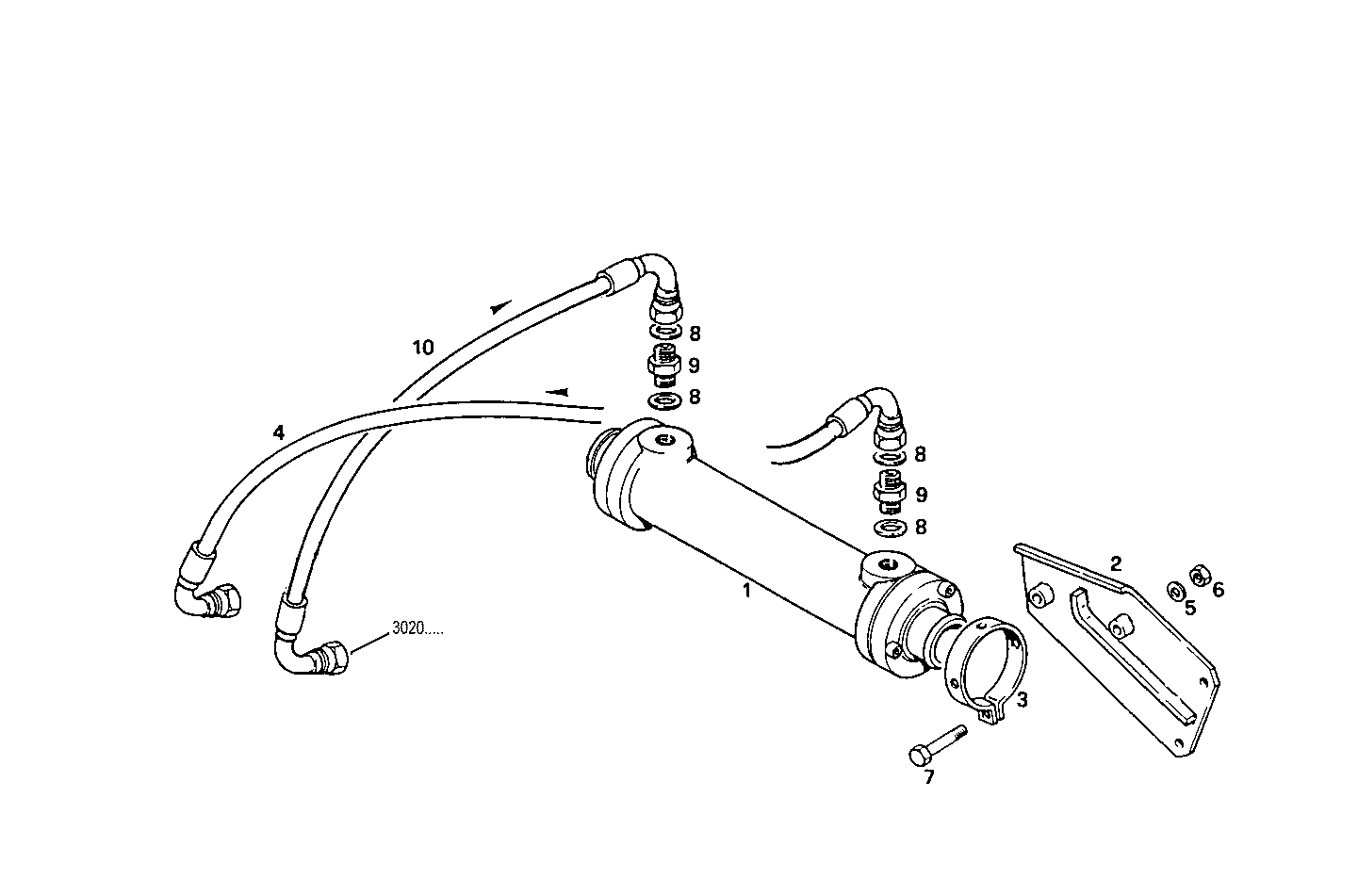

3100.090/01 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8016304 | OIL/WATER HEAT EXCHANGER ASSY |
| 2 | 8108608 | SUPPORT |
| 3 | 8100668 | CLIP |
| 4 | 4935779 | HOSE |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 17038121 | HEXAGON NUT M10 |
| 7 | 16608124 | HEXAGON BOLT M10X1,5X50 MM |
| 8 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 9 | 8101073 | PIPE SOCKET |
| 10 | 8111496 | HOSE |
