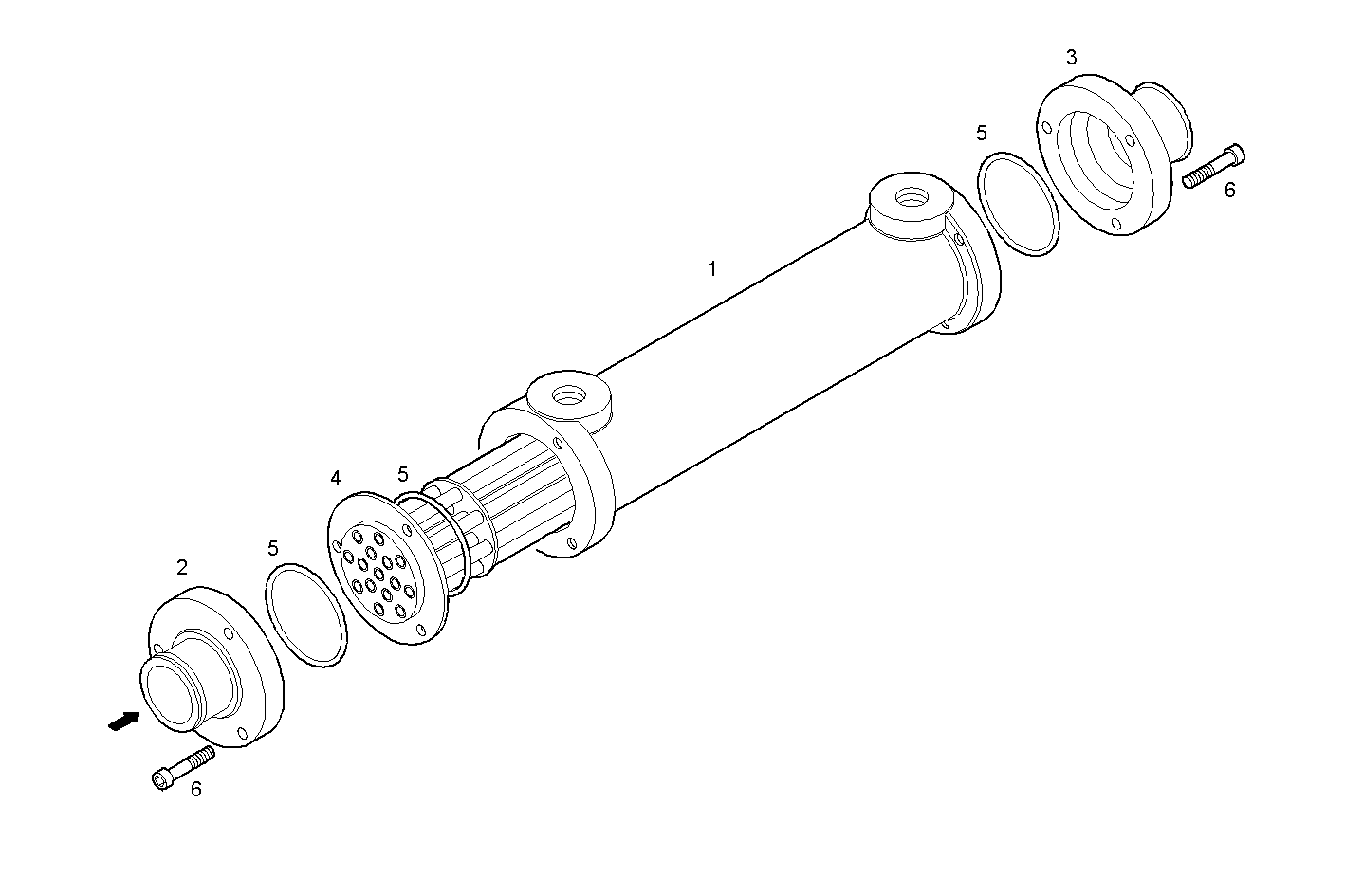

3100.090/02 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 8093720 HEAT EXANGER BODY
2 8093721 HEAT EXCHANG.COVER
3 8093722 HEAT EXCHANG.COVER
4 8093723 TUBE STACK
5 8093724 O-RING Ø49,2X3,53 MM
6 16689424 SOCKET-HEAD SCREW M6X30 MM
