8140SRM15.10

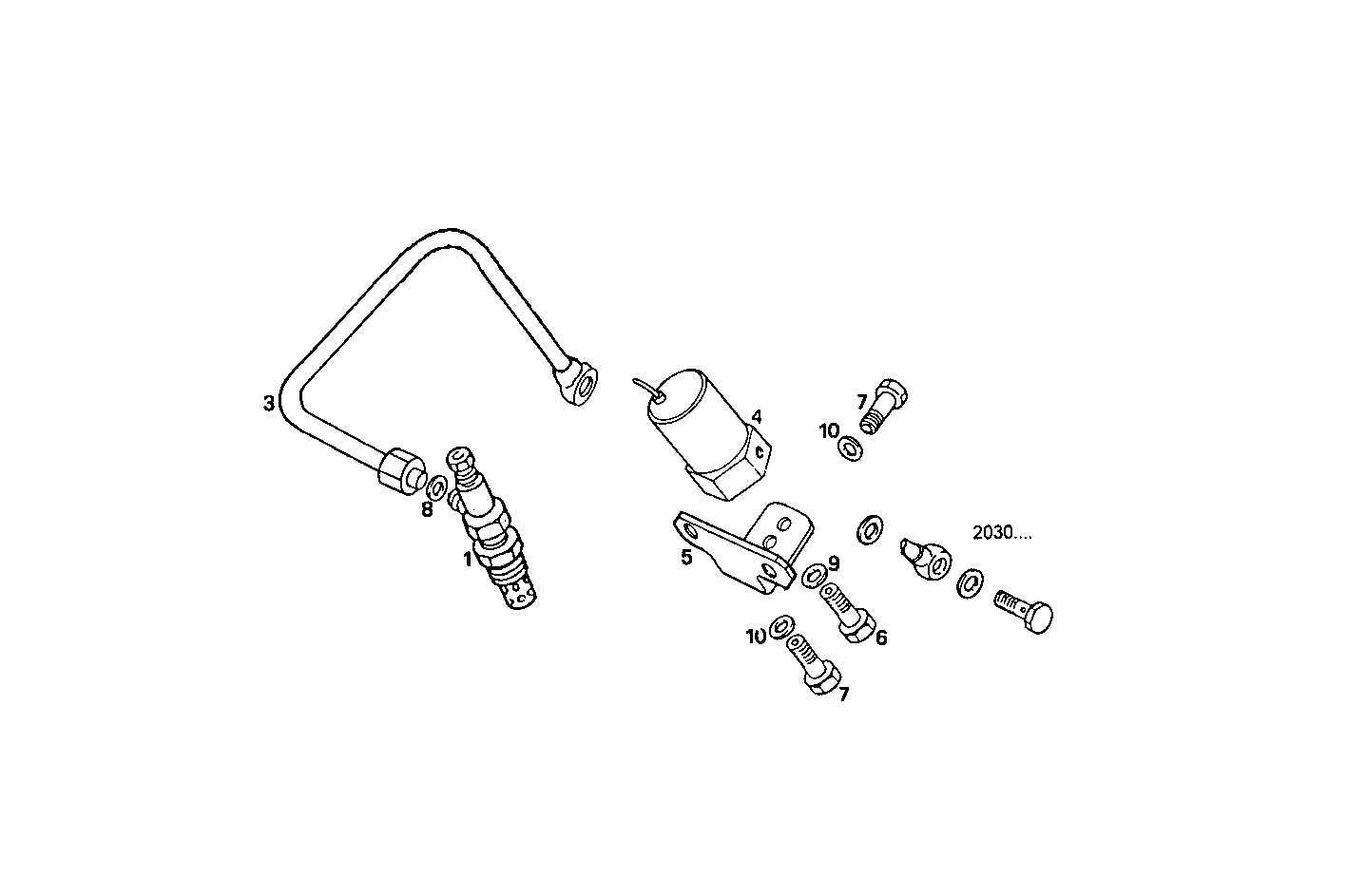

3650.036 THERMO-STARTER
Item | Part number | Description |
---|---|---|
1 | 500314583 | THERMO-STARTER |
3 | 8029878 | FUEL LINE |
4 | 98494902 | ELECTROVALVE |
5 | 8028834 | RETAINER |
6 | 16602024 | SCREW M5X12 MM (8.8) |
7 | 16603524 | SCREW M6X12 MM (8.8) |
8 | 8024645 | O-RING Ø4 MM |
9 | 17094504 | WASHER Ø5,3X10 MM |
10 | 17088474 | WASHER Ø6X12 MM |
