8140SRM15.10

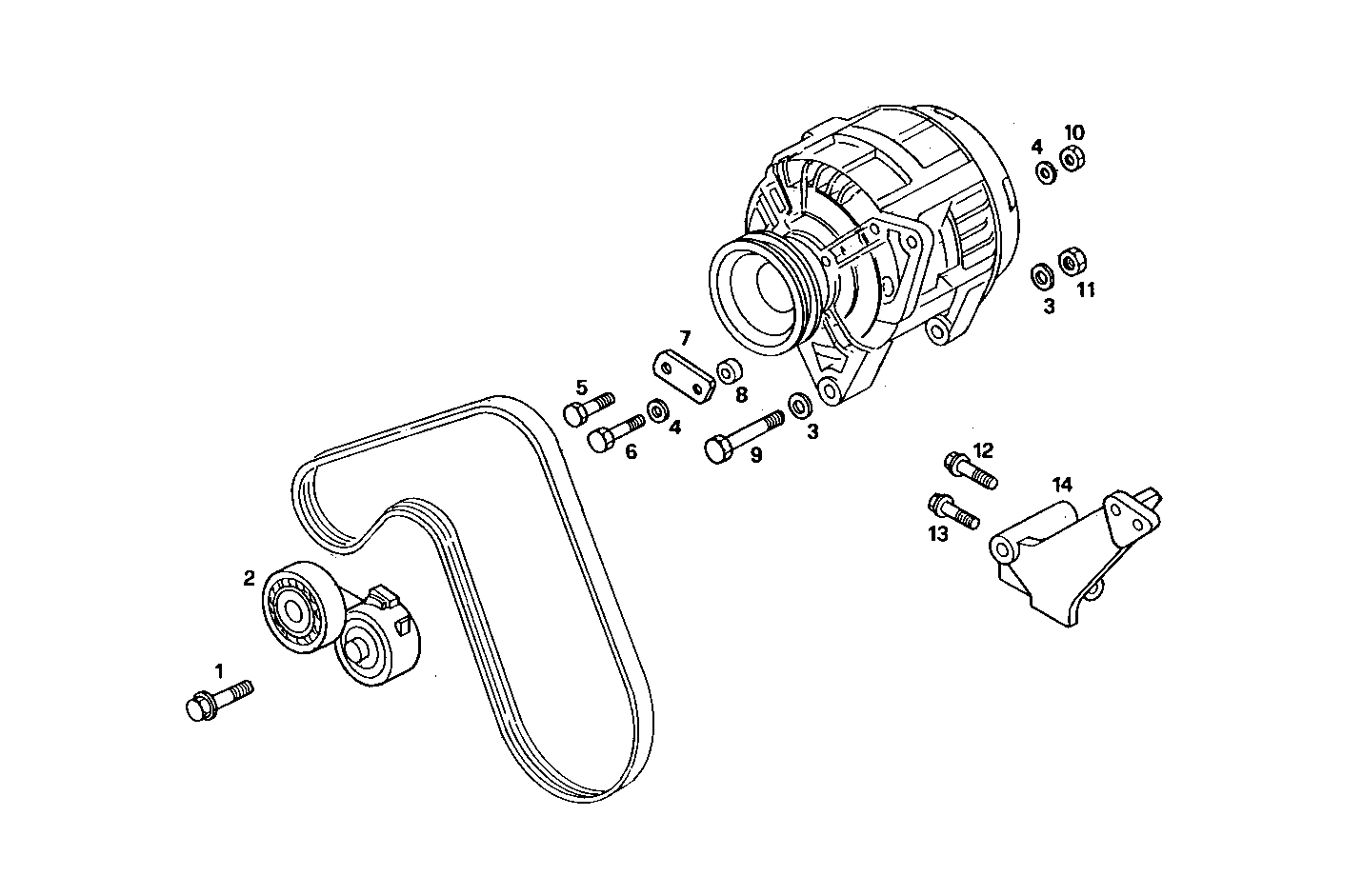

4010.109 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 16592224 | HEXAGON BOLT M8X55 MM |
| 2 | 500332622 | BELT TENSIONER |
| 3 | 17095125 | WASHER |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16608124 | HEXAGON BOLT M10X1,5X50 MM |
| 6 | 15970521 | HEXAGON BOLT M10X20 MM |
| 7 | 8029451 | RETAINER |
| 8 | 4930712 | SPACING BAR |
| 9 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
| 10 | 17038121 | HEXAGON NUT M10 |
| 11 | 14059421 | HEXAGON NUT M10X1,25 |
| 12 | 16289524 | HEXAGON BOLT |
| 13 | 16288734 | HEXAGON BOLT M10X1,25X40 MM |
| 14 | 99463360 | GENERATOR SUPPORT |
