8140SRM15.10

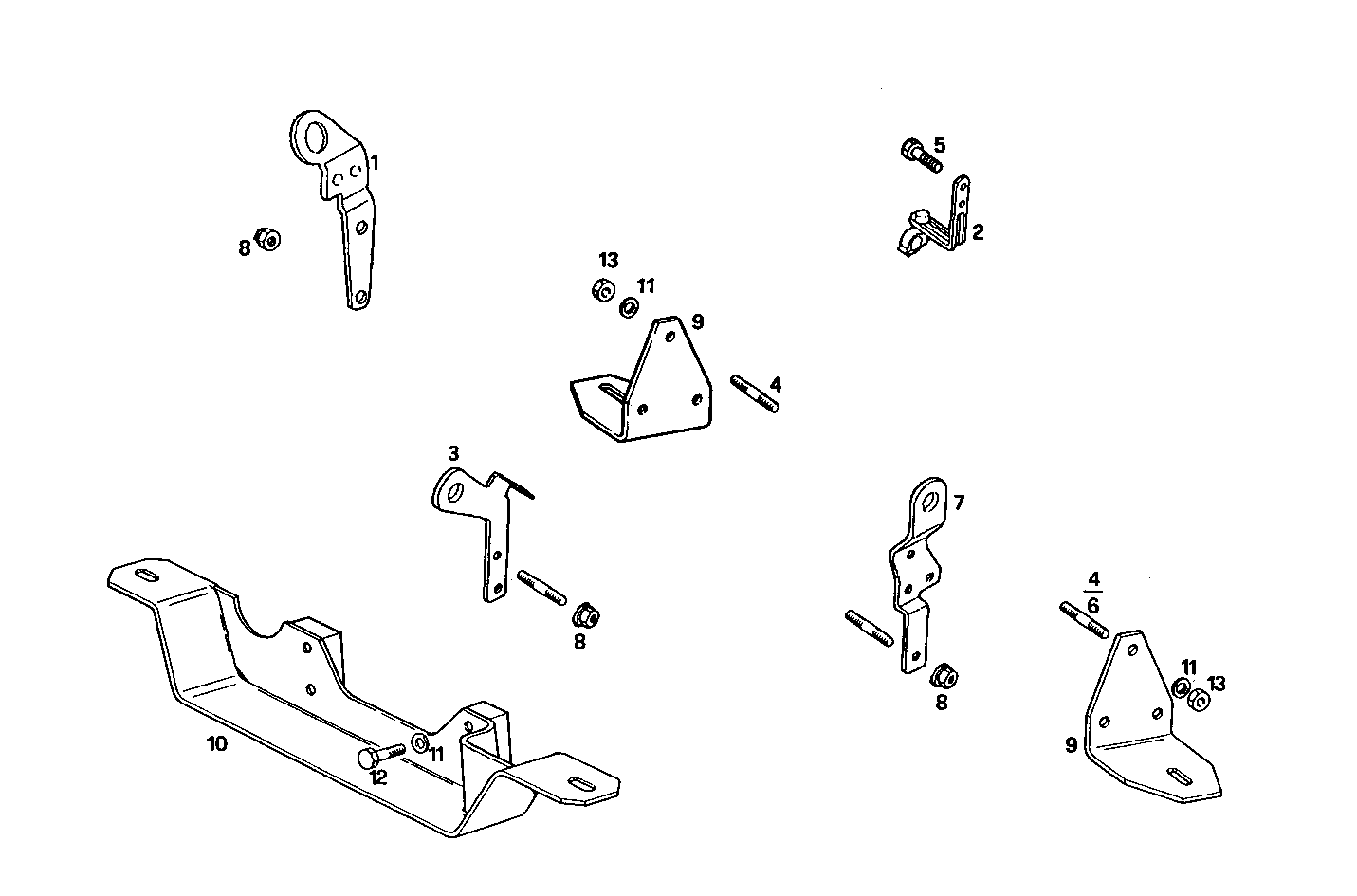

4500.117 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 500351024 | TOWINGCLEVIS FRONT |
2 | 500336300 | RETAINER |
3 | 500348840 | TOWINGCLEVIS FRONT |
4 | 13546321 | STUD M10X25 MM |
5 | 16596924 | HEXAGON BOLT M6X10 MM |
6 | 13546521 | STUD M10X1,25X20X30 MM |
7 | 99463366 | TOWINGCLEVIS FRONT |
8 | 17044731 | HEXAGON NUT M8 |
9 | 4919262 | SUPPORT REAR |
10 | 8018348 | SUPPORT FRONT |
11 | 17090174 | SPRING WASHER Ø10X20 MM |
12 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
13 | 17038221 | HEXAGON NUT M10 |
