8140SRM15.10

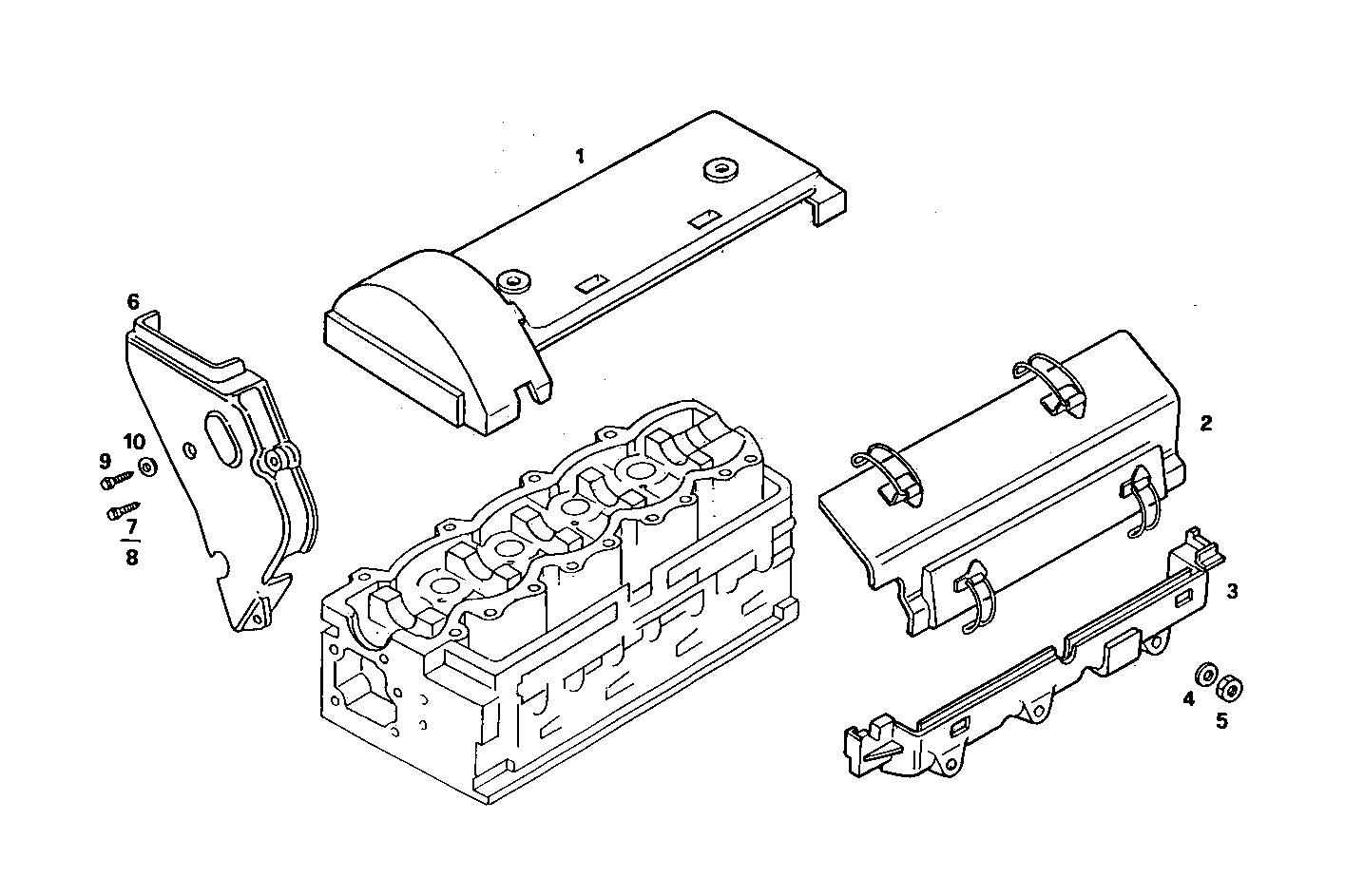

4620.000 ASSY SOUND PROOFING
| Item | Part number | Description |
|---|---|---|
| 1 | 99471017 | CYL. HEAD COVER |
| 2 | 99471006 | SIDE COVER |
| 3 | 99463363 | SIDE COVER |
| 4 | 13550301 | WASHER Ø8,15 MM |
| 5 | 17044731 | HEXAGON NUT M8 |
| 6 | 500341406 | COVER ASSY |
| 7 | 16597224 | HEXAGON BOLT M6X18 MM |
| 8 | 16585924 | HEXAGON BOLT M6X25 MM |
| 9 | 98485223 | SCREW |
| 10 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
