8140SRM15.11

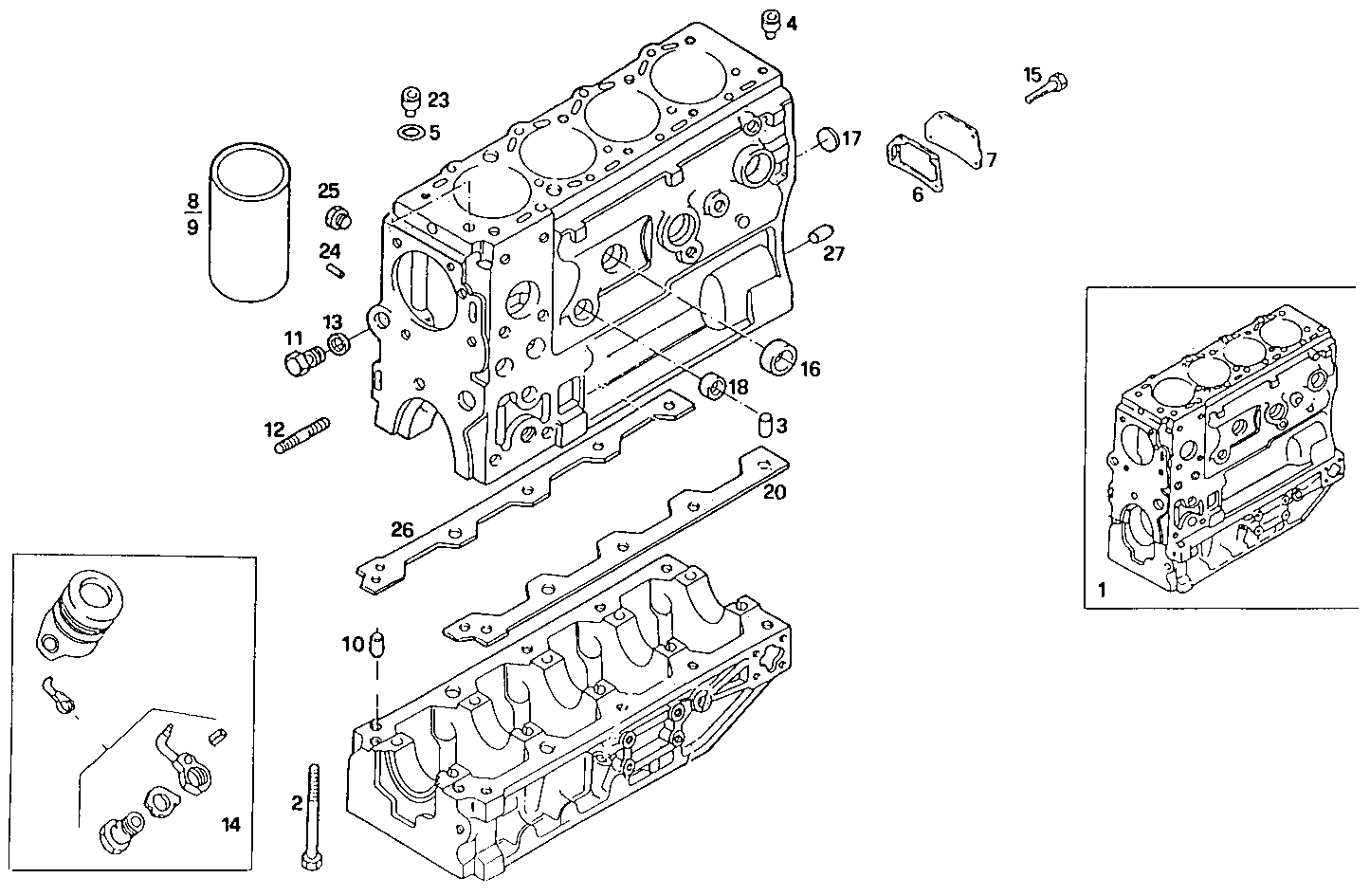

0400.143 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 99443725 CRANKCASE ASSY
2 4792169 SCREW
3 4724790 DOWEL PIN
4 98418754 DOWEL PIN
5 14452981 O-RING Ø9,25 MM SP=1,78 MM
6 500329970 FLAT ENGINE GASKET SP=0,4 MM
7 98471295 COVER [from 2122618]
8 99435938 CYLINDER LINER STD.
9 99443784 CYLINDERLINER +0.2
10 4279387 CENTERING RING
11 7303457 THREADED PLUG
12 7301674 STUD
13 16508360 WASHER 18x22x1,5
14 500342389 OIL NOZZLE ASSY
15 16586224 HEXAGON BOLT M8X1,25X16 MM
16 14282870 LOCK PLUG Ø40 MM
17 7301976 PLUG Ø16 MM
18 14328901 LOCK PLUG Ø25 MM
20 99432807 FLAT ENGINE GASKET LEFT [from 2122618]
23 98418753 DOWEL PIN [from 1533081]
24 98405182 DOWEL PIN Ø11 MM
25 10269601 THREADED PLUG M16X1,5
26 99432808 FLAT ENGINE GASKET RIGHT [from 2122618]
27 7300019 DOWEL PIN
