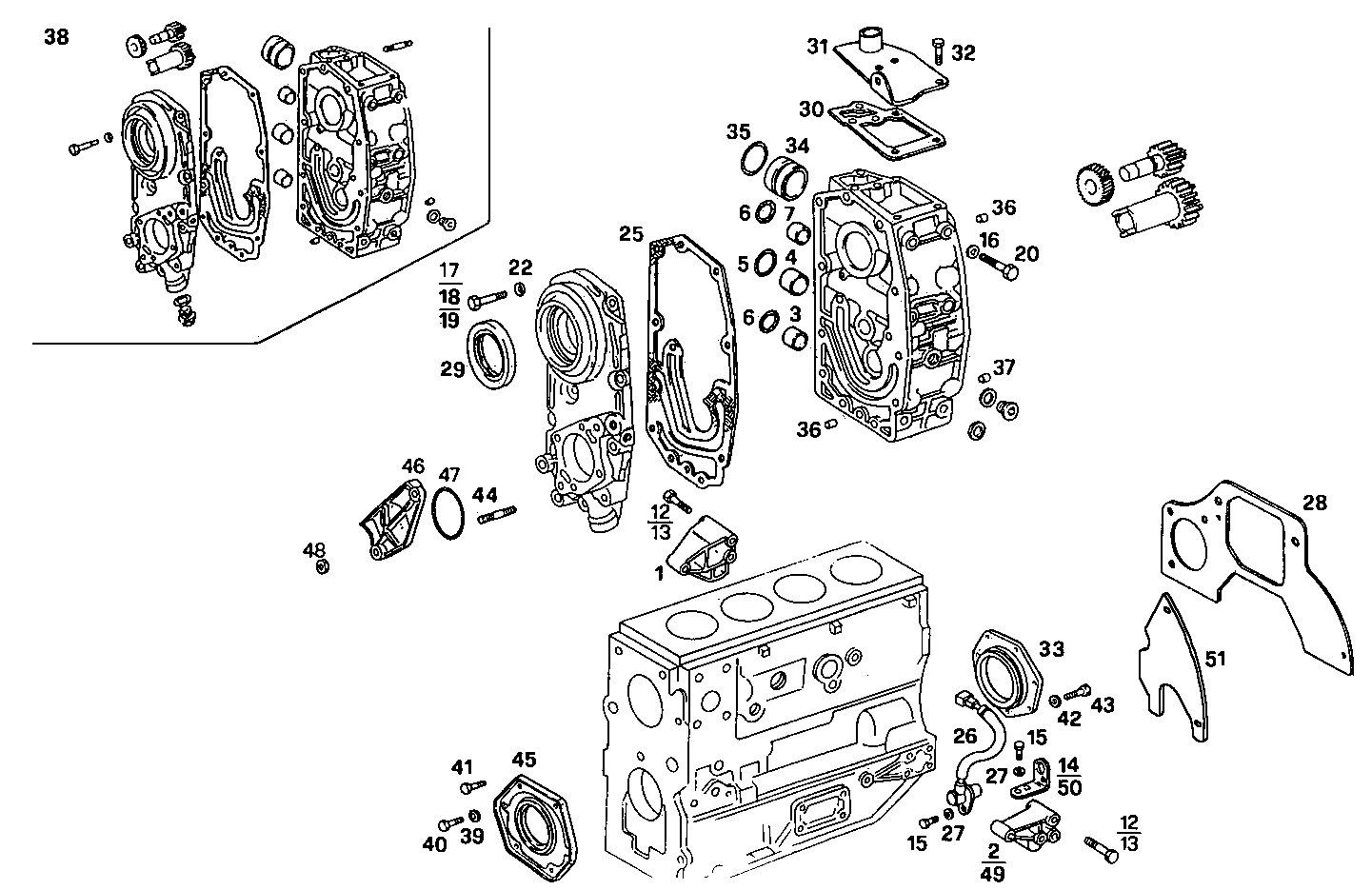

Item |
Part number |
Description |
1 |
500344426 |
BRACKET RIGHT |
2 |
99459924 |
BRACKET LEFT |
3 |
4710945 |
BUSH Ø18X30 MM |
4 |
4279406 |
BUSH Ø22,3X12 MM |
5 |
17282181 |
O-RING Ø21,8 MM SP=2,6 MM |
6 |
500306196 |
O-RING Ø17,46 MM SP=2,62 MM |
7 |
4279407 |
BUSH Ø18X18 MM |
12 |
16289124 |
HEXAGON BOLT M10X1,25X60 MM |
13 |
16289624 |
HEXAGON BOLT M10X1,25X100 MM |
14 |
504011324 |
RETAINER |
15 |
16603524 |
SCREW M6X12 MM (8.8) |
16 |
17094924 |
WASHER Ø8X16 MM |
17 |
500324560 |
SCREW M8X45 MM |
18 |
16606024 |
SCREW M8X45 MM |
19 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
20 |
98468138 |
HEXAGON BOLT M8X1,25X150 MM |
22 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
25 |
500369188 |
FLAT ENGINE GASKET |
26 |
500343018 |
ELECTRON.TRANSMITT |
27 |
17094714 |
WASHER Ø6,4X12 MM |
28 |
504003421 |
PROTECTION |
29 |
98454045 |
SHAFT SEAL |
30 |
500349423 |
FLAT ENGINE GASKET SP=0,4 MM |
31 |
500310942 |
COVER |
32 |
16586324 |
HEXAGON BOLT M8X1,25X20 MM |
33 |
99457402 |
SHAFT SEAL |
34 |
98461177 |
BUSH Ø40X46,2 MM [from 1608990] |
35 |
98461178 |
O-RING Ø46,04 MM SP=3,53 MM |
36 |
98465476 |
DOWEL PIN Ø8 MM |
37 |
500325603 |
DOWEL PIN Ø11 MM |
38 |
500376933 |
SUPPORT ASSY |
39 |
17088474 |
WASHER Ø6X12 MM |
40 |
16689134 |
SOCKET-HEAD SCREW M6X16 MM |
41 |
16585924 |
HEXAGON BOLT M6X25 MM |
42 |
17089574 |
WASHER Ø8X16 MM |
43 |
16690424 |
CYLIND-HEAD SCREW M8X1,25X16 MM |
44 |
13449524 |
STUD M10X1,25X15X25 |
45 |
99483227 |
SHAFT SEAL |
46 |
98448956 |
COVER |
47 |
500394164 |
O-RING Ø40,94X2,62 MM |
48 |
14059411 |
HEXAGON NUT M10X1,25 |
49 |
504028526 |
BRACKET |
50 |
500362485 |
RETAINER |
51 |
504036479 |
PROTECTION |
