8140SRM15.11

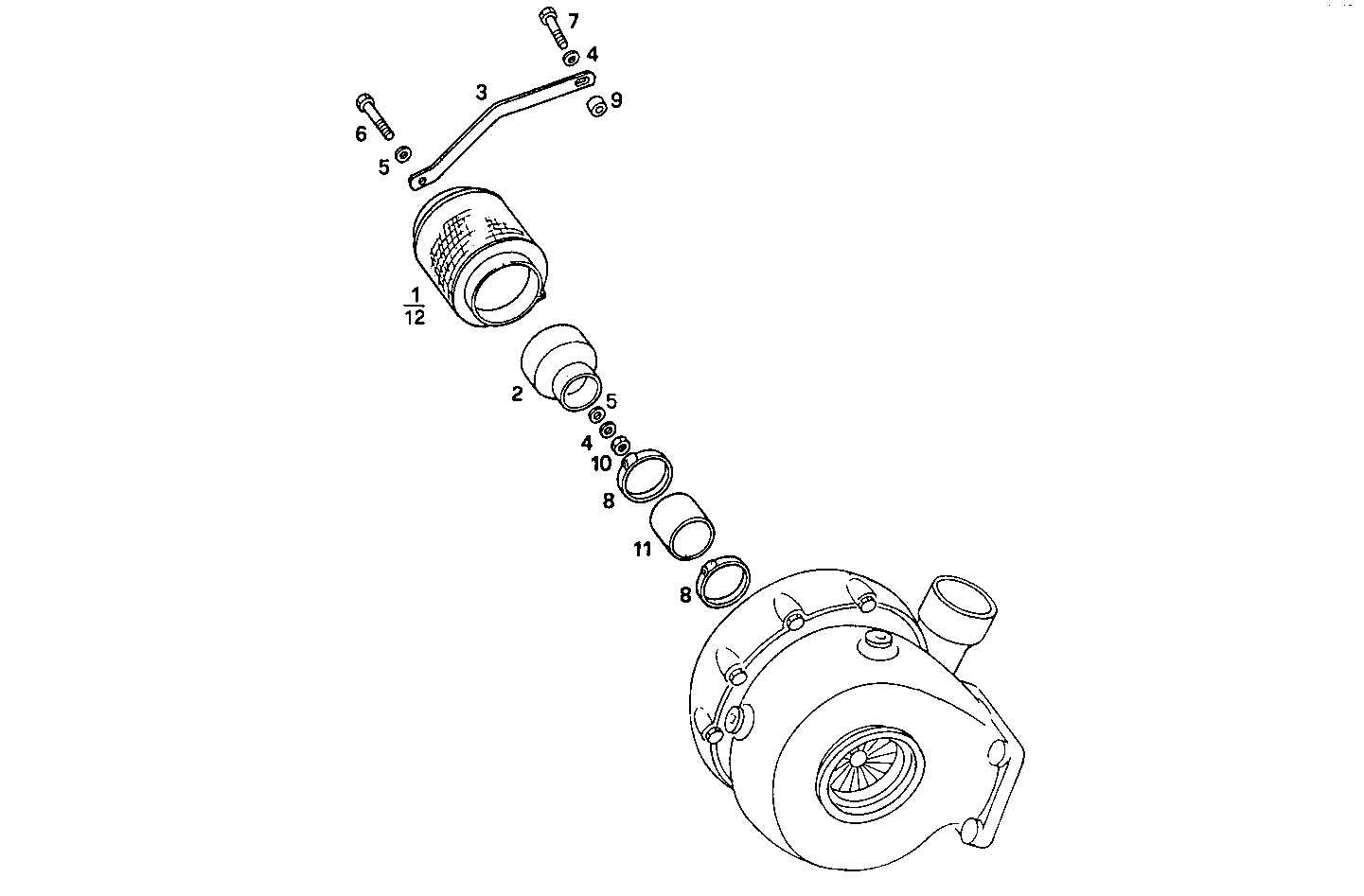

2210.042 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8010585 | AIR CLEANER |
| 2 | 8111046 | AIR MANIFOLD |
| 3 | 8028727 | RETAINER |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 12644301 | WASHER |
| 6 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 7 | 15970174 | WASHER |
| 8 | 8114472 | CLIP |
| 9 | 8101581 | SPACING BAR |
| 10 | 17038121 | HEXAGON NUT M10 |
| 11 | 98448211 | TURBOCHARGER HOSE M16X55 MM |
| 12 | 8030696 | AIR CLEANER |
