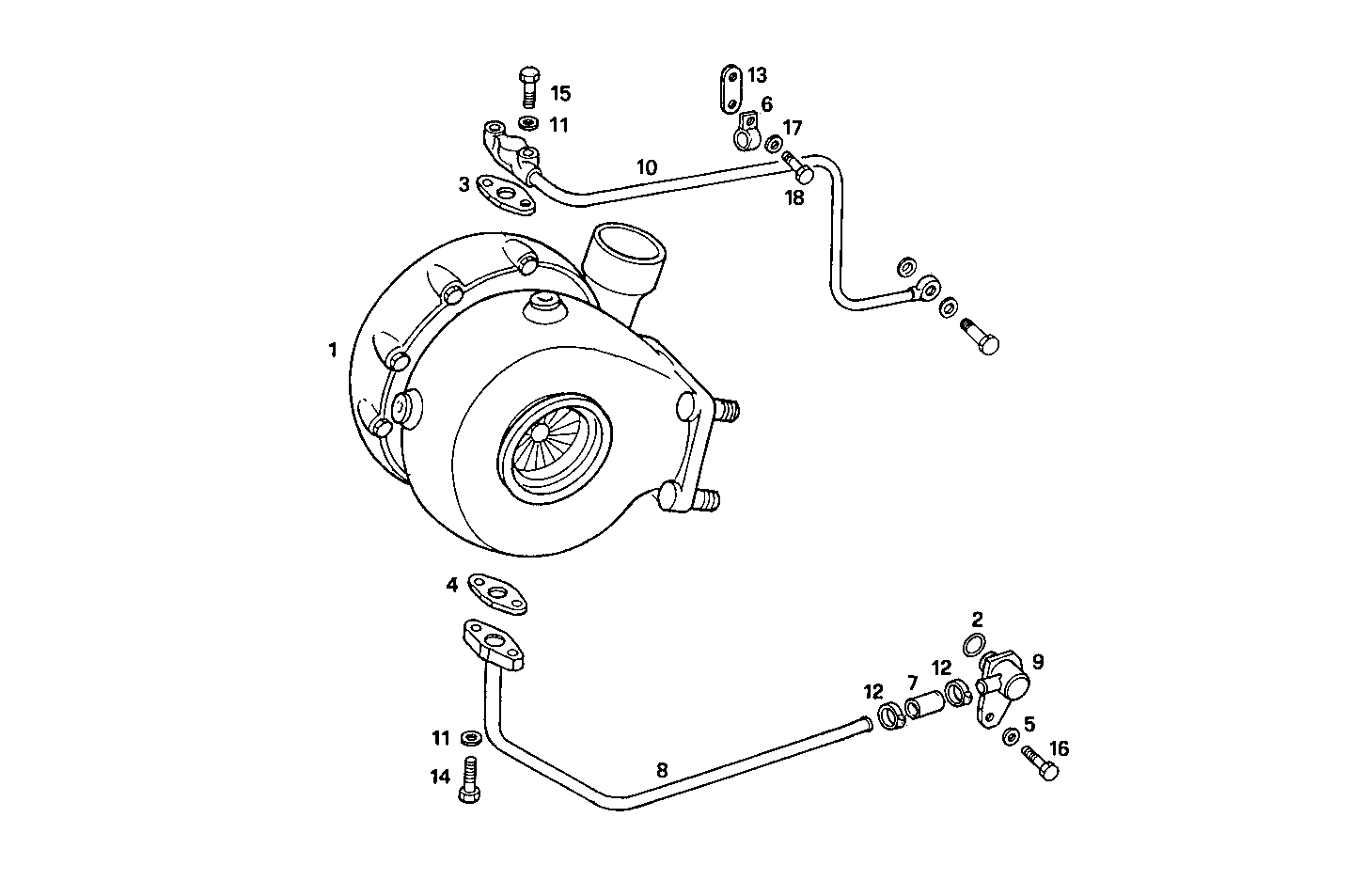

| Item |
Part number |
Description |
|
1 |
8023162 |
TURBOCHARGER ASSY K.K.K. |
|
2 |
17278781 |
O-RING Ø21,95 MM SP=1,78 MM |
|
3 |
98415922 |
FLAT ENGINE GASKET |
|
4 |
98415923 |
FLAT ENGINE GASKET |
|
5 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
6 |
17316590 |
PIPE CLIP Ø12 MM |
|
7 |
98420478 |
RUBBER SLEEVE |
|
8 |
8024886 |
OIL LINE |
|
9 |
8028761 |
FLANGED SOCKET |
|
10 |
8024887 |
OIL LINE |
|
11 |
11193874 |
WASHER Ø8X16 MM |
|
12 |
17764593 |
CLIP Ø20/32 MM |
|
13 |
8108062 |
RETAINER |
|
14 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
15 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
16 |
15540221 |
HEXAGON BOLT M12X1,25X20 MM |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
16043021 |
HEXAGON BOLT M8X12 MM |
