8140SRM15.11

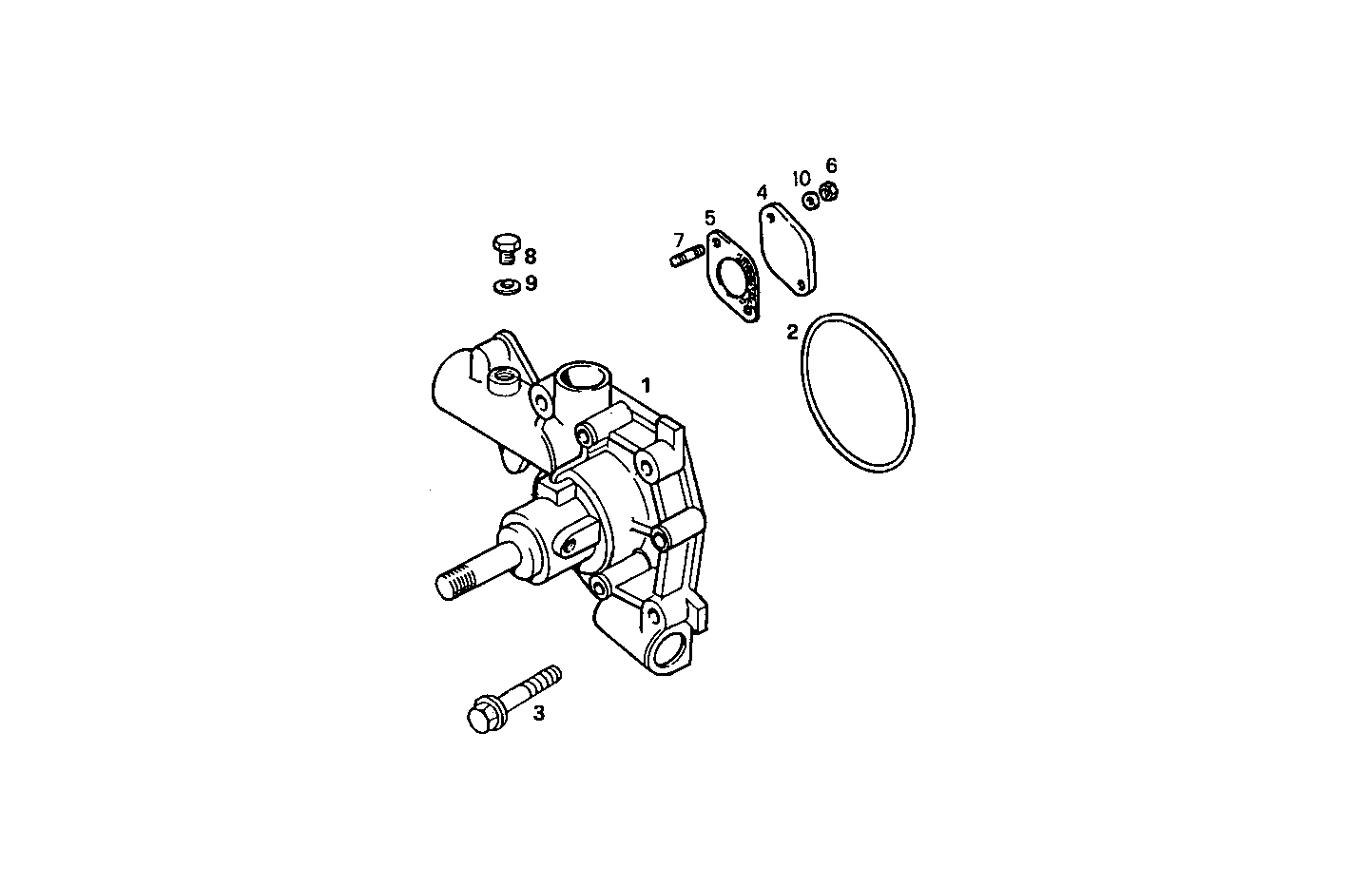

3200.105 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8024908 | WATER PUMP ASSY |
| 2 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
| 3 | 98494125 | HEXAGON BOLT M10X1,25X50 MM |
| 4 | 4934275 | COVER |
| 5 | 98430478 | FLAT ENGINE GASKET SP=1,6 MM |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 13543524 | STUD M8X16X25 |
| 8 | 10300611 | LOCK PLUG M14X1,5 |
| 9 | 10280060 | WASHER Ø14X20 MM SP=1,5 MM |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
