8140SRM15.11

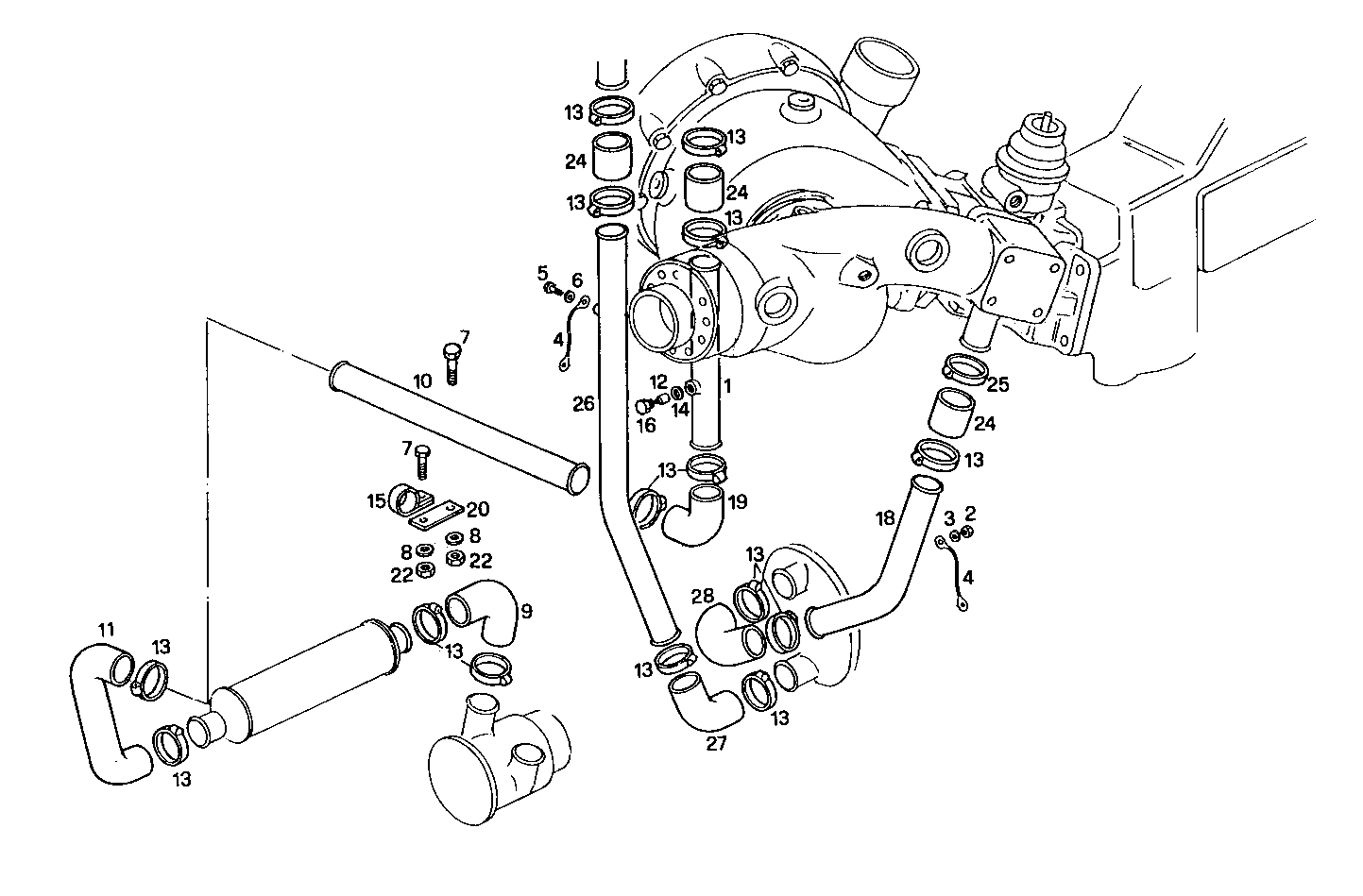

3390.058 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8108610 | WATER PIPE |
| 2 | 17037821 | HEXAGON NUT M6X1 |
| 3 | 17088474 | WASHER Ø6X12 MM |
| 4 | 8113786 | ENGINE HARNESS GND |
| 5 | 16043021 | HEXAGON BOLT M8X12 MM |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16607624 | SCREW M10X25 |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 8110497 | CONNECTOR SLEEVE |
| 10 | 8029879 | WATER PIPE |
| 11 | 8028785 | RUBBER SLEEVE |
| 12 | 8105277 | SACRIFICAL ANODE Ø14 MM |
| 13 | 17764793 | CLIP Ø32/50 MM |
| 14 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 15 | 8103077 | CLIP |
| 16 | 4917793 | PLUG M18 |
| 18 | 8024885 | WATER PIPE |
| 19 | 8016662 | RUBBER SLEEVE |
| 20 | 8030851 | RETAINER |
| 22 | 17038121 | HEXAGON NUT M10 |
| 24 | 17742687 | RUBBER SLEEVE |
| 25 | 17764893 | CLIP Ø40/60 MM |
| 26 | 8013004 | WATER PIPE |
| 27 | 8102099 | RUBBER SLEEVE |
| 28 | 4951429 | WATER HOSE |
