8140SRM15.11

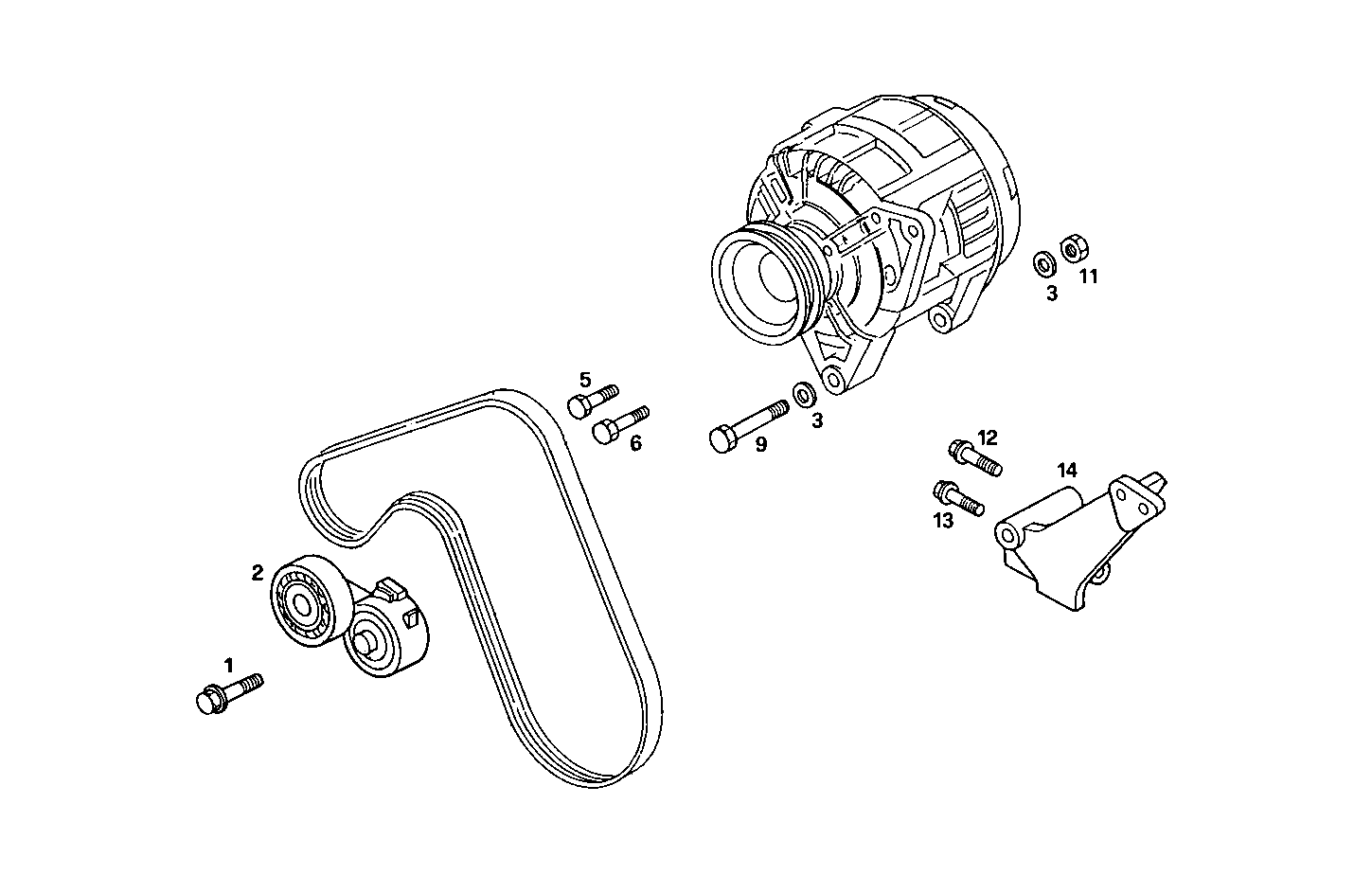

4010.117 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 16592224 | HEXAGON BOLT M8X55 MM |
| 2 | 500332622 | BELT TENSIONER |
| 3 | 17095125 | WASHER |
| 5 | 16289024 | SCREW M10X50 |
| 6 | 15970521 | HEXAGON BOLT M10X20 MM |
| 7 | 504011448 | RETAINER |
| 9 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
| 11 | 14059421 | HEXAGON NUT M10X1,25 |
| 12 | 16289524 | HEXAGON BOLT |
| 13 | 16288734 | HEXAGON BOLT M10X1,25X40 MM |
| 14 | 500372423 | GENERATOR SUPPORT |
