8140SRM15.11

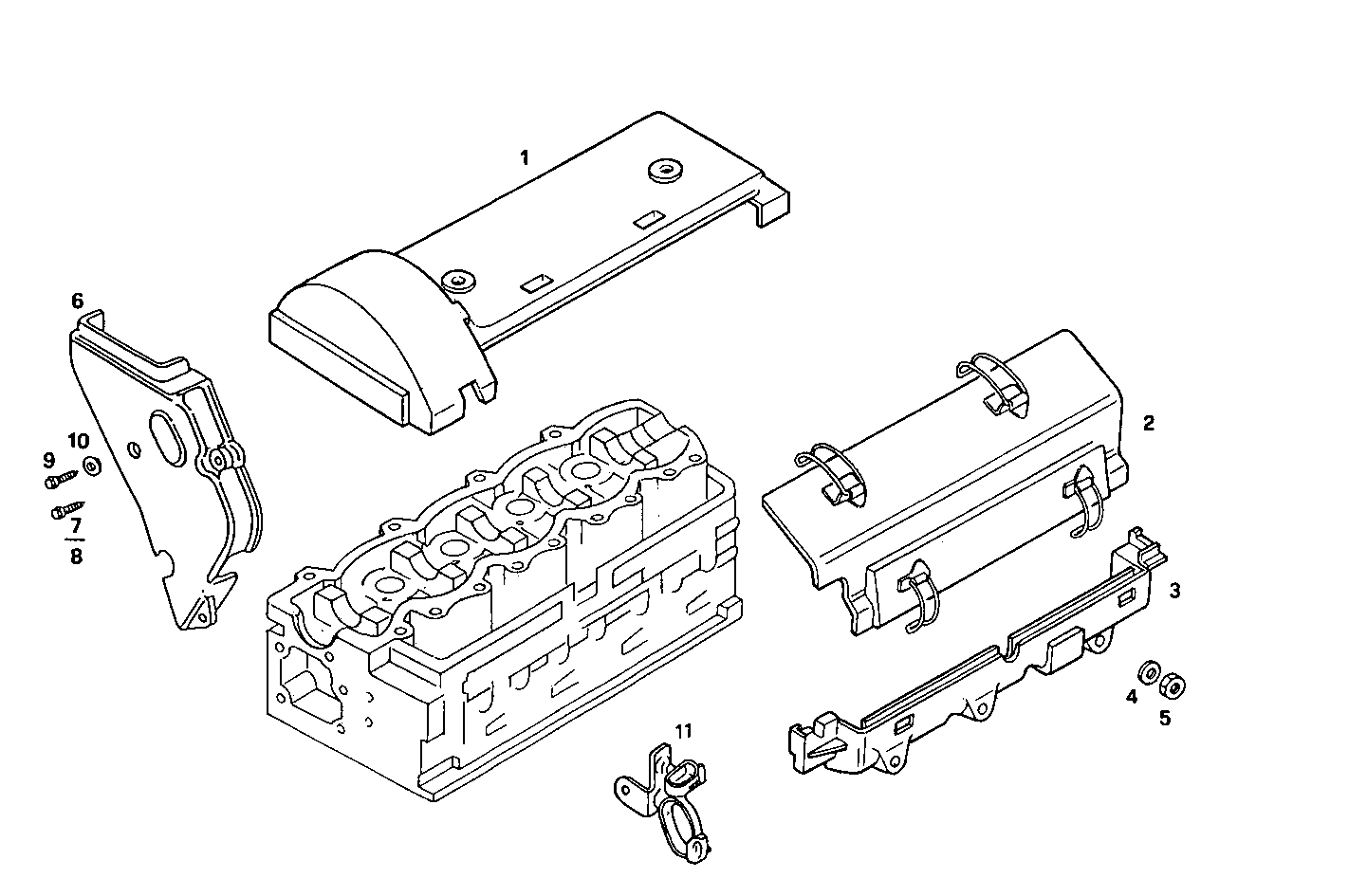

4620.002 ASSY SOUND PROOFING
Item | Part number | Description |
---|---|---|
1 | 500316893 | CYL. HEAD COVER |
2 | 99471006 | SIDE COVER |
3 | 500398047 | COVER |
4 | 13550301 | WASHER Ø8,15 MM |
5 | 17044731 | HEXAGON NUT M8 |
6 | 504010963 | COVER |
7 | 16597224 | HEXAGON BOLT M6X18 MM |
8 | 16585924 | HEXAGON BOLT M6X25 MM |
9 | 98485223 | SCREW |
10 | 12647724 | WASHER Ø6X21 MM SP=1 MM |
11 | 500343591 | FASTENING BRACKET |
