8141.67.2000

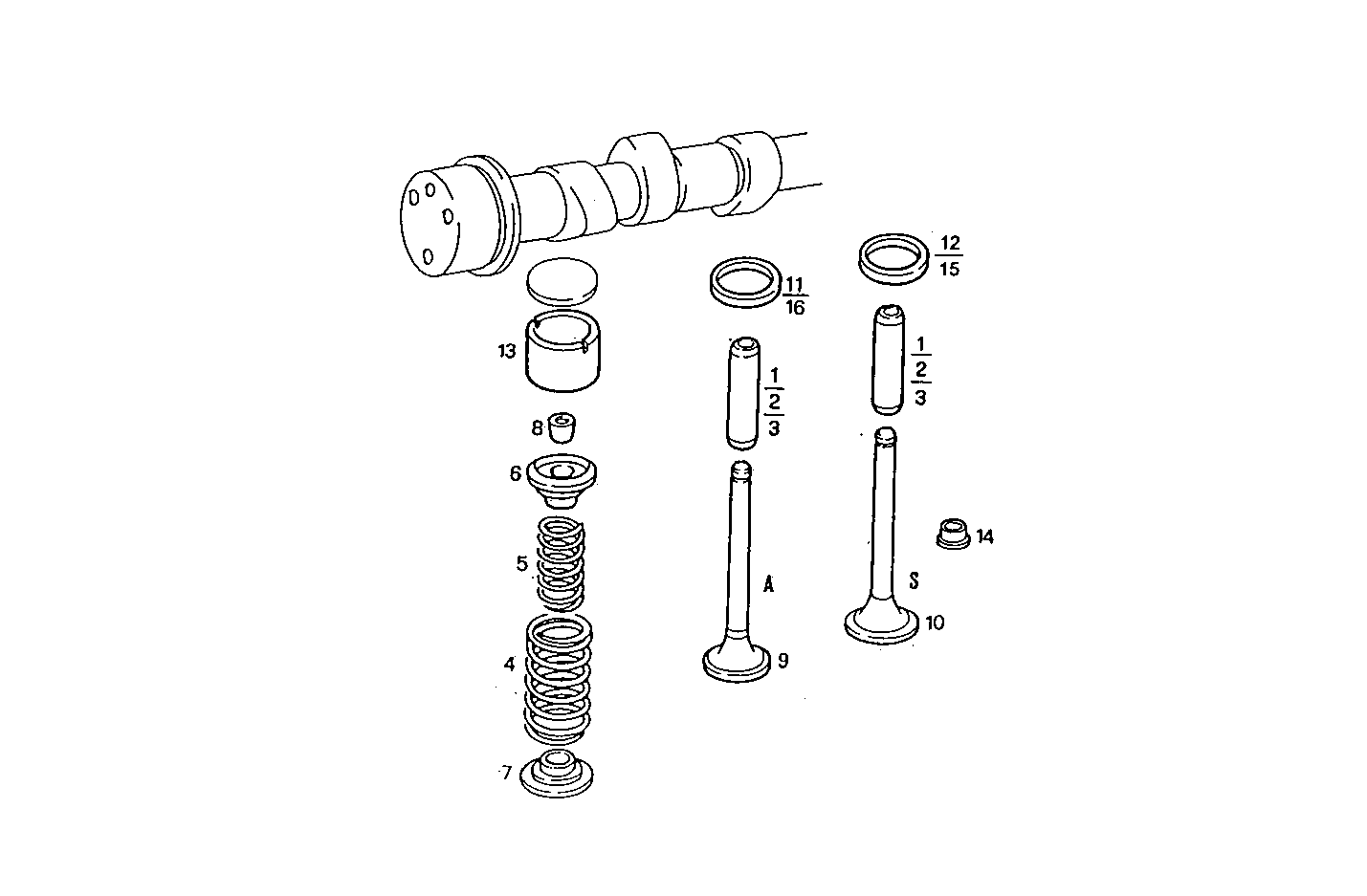

0600.102/02 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 4749397 VALVE GUIDE
2 4749398 VALVE GUIDE +0.10
3 4749399 VALVE GUIDE +0,2
4 4734533 ENGINE VALV.SPRING OUTER
5 4723186 ENGINE VALV.SPRING INNER
6 4734531 SPRING CAP TOP
7 4749396 SPRING CAP BOTTOM
8 4733465 VALVE CONE
9 98468338 INLET VALVE
10 98418161 EXHAUST VALVE
11 98425343 VALVE SEAT STD. PLEUCO
12 98418173 VALVE SEAT STD. EXHAUST [up to 19921213]
13 4733350 VALVE TAPPET
14 40101573 CAP
15 98481628 VALVE SEAT STD. EXHAUST [from 19921232]
16 98487340 VALVE SEAT STD. BRICO
