8141.67.2000

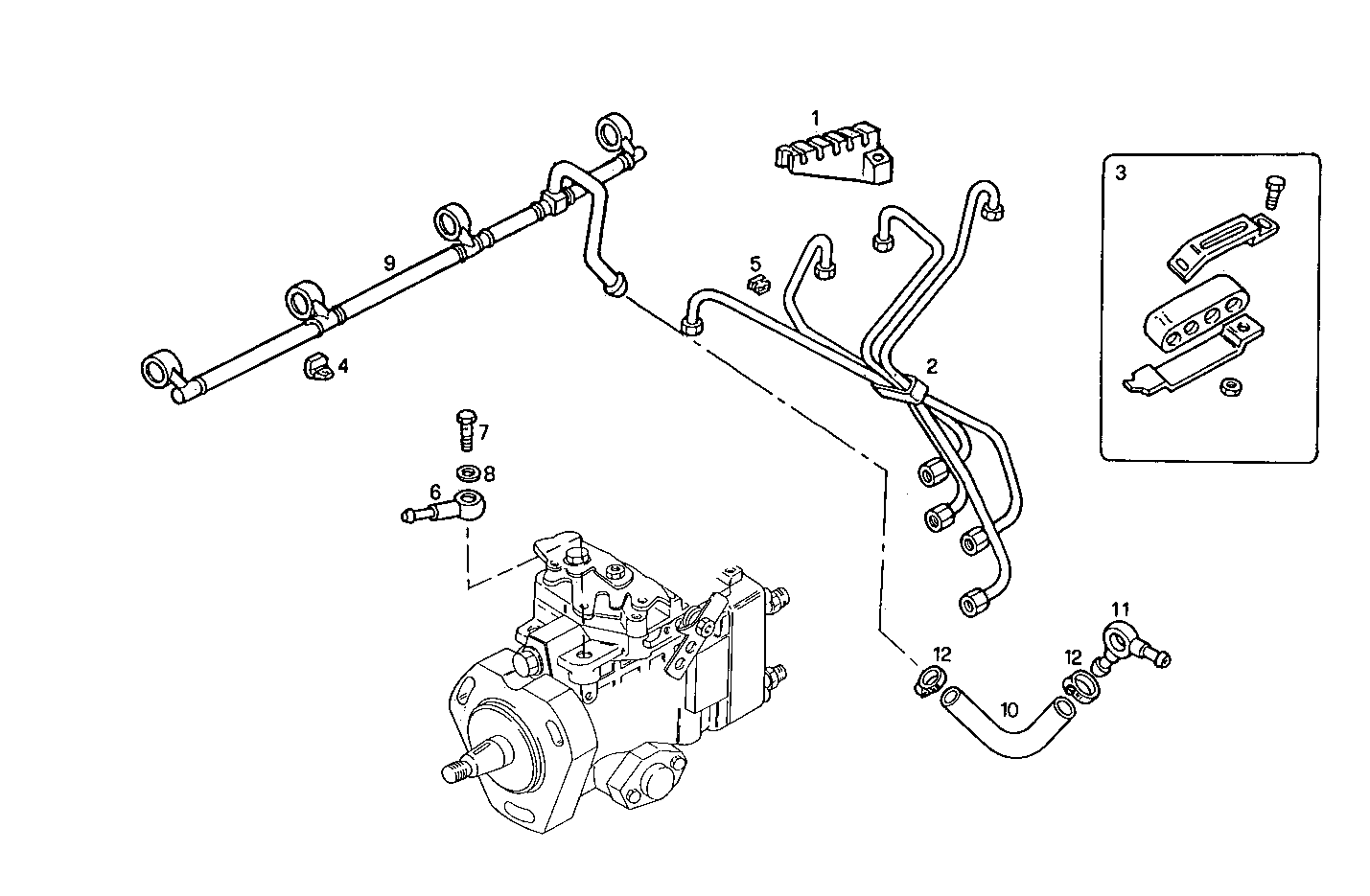

2020.072 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4714424 | RUBBER PAD |
| 2 | 98416942 | INJECTION LINE SET ASSY |
| 3 | 99431258 | FASTENING BRACKET DAMPERS |
| 4 | 4734007 | RETAINER FRONT |
| 5 | 4734008 | RETAINER REAR |
| 6 | 98434018 | THREADED UNION |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
| 9 | 4720744 | FUEL LINE ASSY |
| 10 | 17731187 | FUEL LINE |
| 11 | 98433829 | BANJO COUPLING [up to 1555507] |
| 12 | 17764292 | HOSE CLIP Ø10/16 MM |
