8141.67.2000

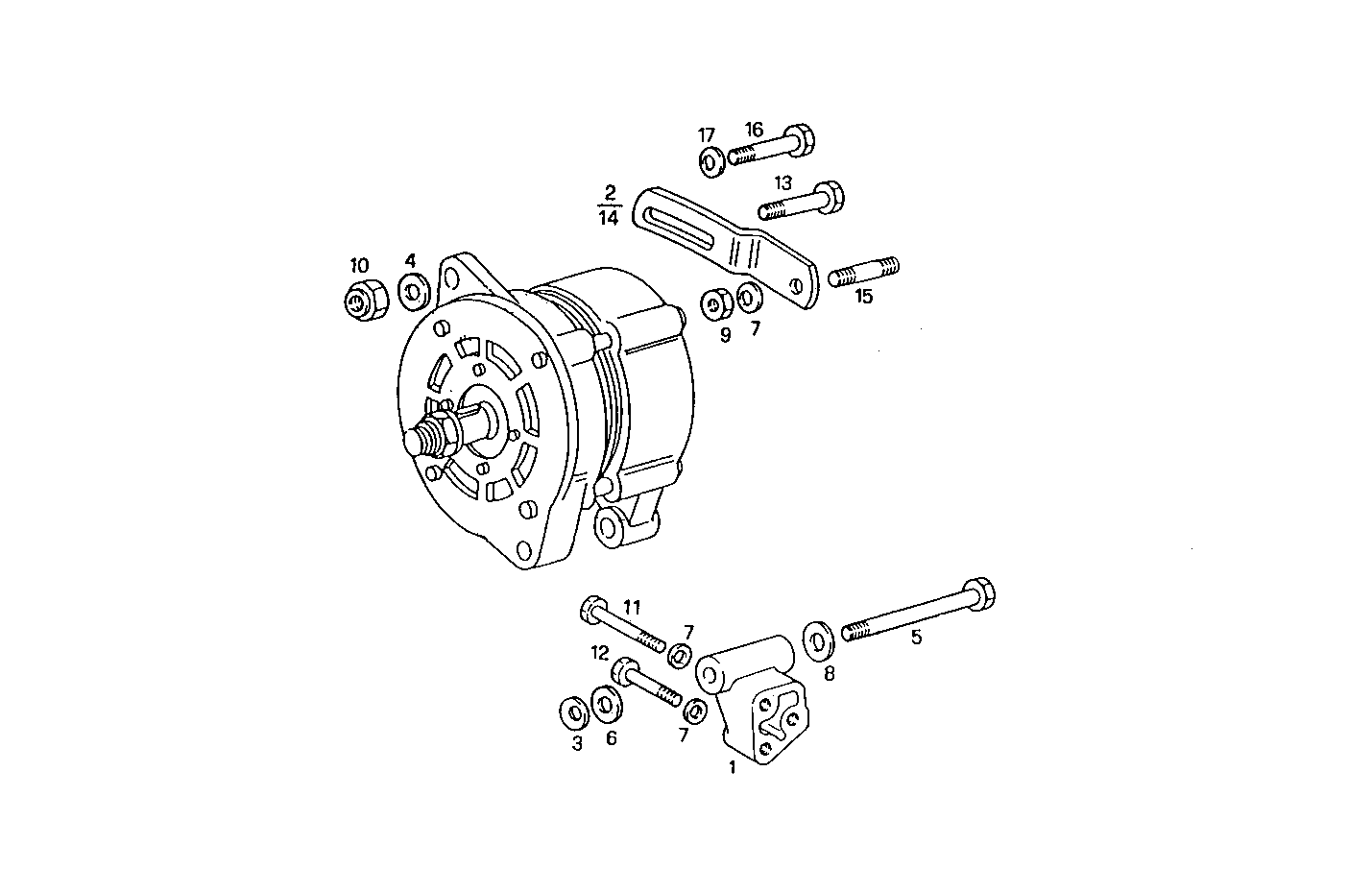

4010.065 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 7303475 | GENERATOR SUPPORT |
| 2 | 4729582 | BELT TENSIONER [up to 2182943] |
| 3 | 4726707 | WASHER SP=2 MM |
| 4 | 7300040 | WASHER SP=2,00 MM |
| 5 | 11114321 | HEXAGON BOLT M12X1,75X105 MM |
| 6 | 4857669 | SPACING BAR |
| 7 | 11198374 | SPRING WASHER Ø10X20 MM |
| 8 | 11198674 | WASHER Ø13 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 12575411 | HEXAGON NUT |
| 11 | 15971321 | HEXAGON BOLT M10X1,25X75 MM |
| 12 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 13 | 11307024 | SCREW M10X1,25X40 MM |
| 14 | 98416025 | BELT TENSIONER [from 1307401] |
