8141.67F.3000

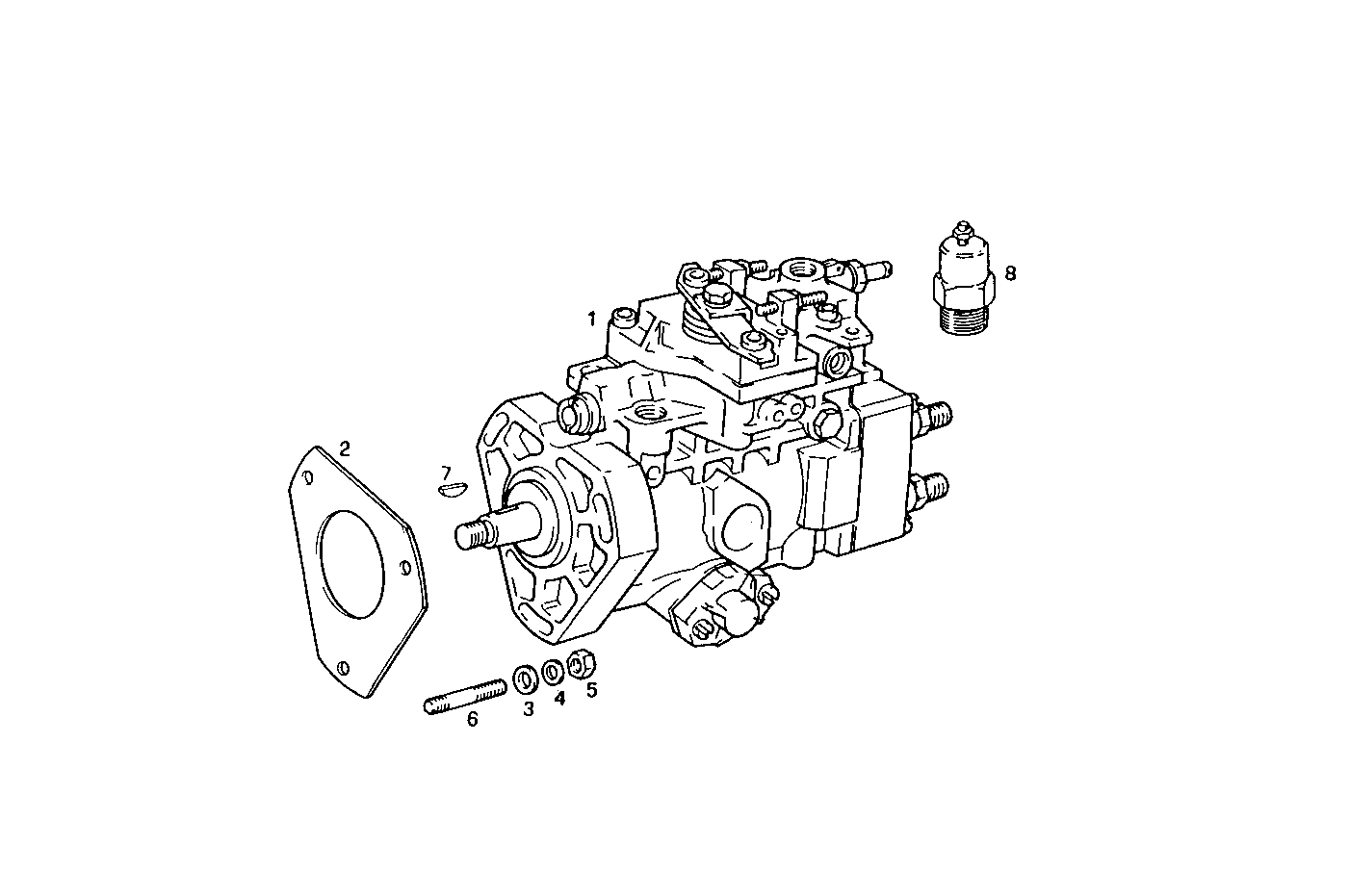

1400.204 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 500335718 | DISTRIB.INJ.PUMP ASSY |
2 | 98430444 | GASKET |
3 | 17094914 | WASHER 8x16 |
4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 | 17037931 | HEXAGON NUT M8X1,25 |
6 | 4600631 | STUD |
7 | 10206220 | KEY 3X6,5 MM |
8 | 8100253 | ELECTROVALVE 12V |
