8141C67.03A005

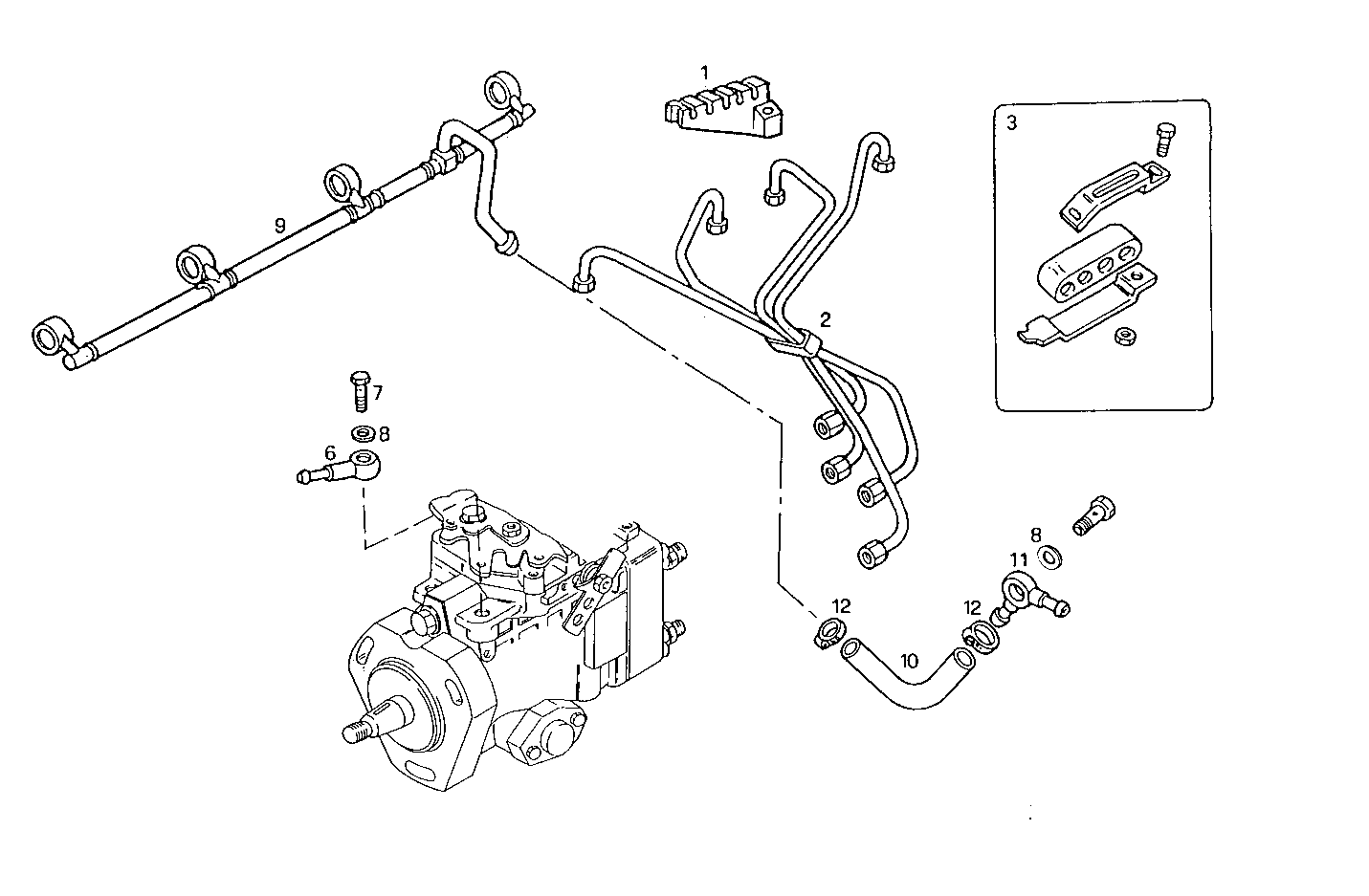

2020.087 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4714424 | RUBBER PAD |
| 2 | 98416942 | INJECTION LINE SET ASSY |
| 3 | 99431258 | FASTENING BRACKET DAMPERS |
| 6 | 98434018 | THREADED UNION |
| 7 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 8 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 9 | 4720744 | FUEL LINE ASSY |
| 10 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
| 11 | 99467109 | FUEL LINE ASSY |
| 12 | 98474607 | CLIP Ø18 MM |
