8141C67.03A005

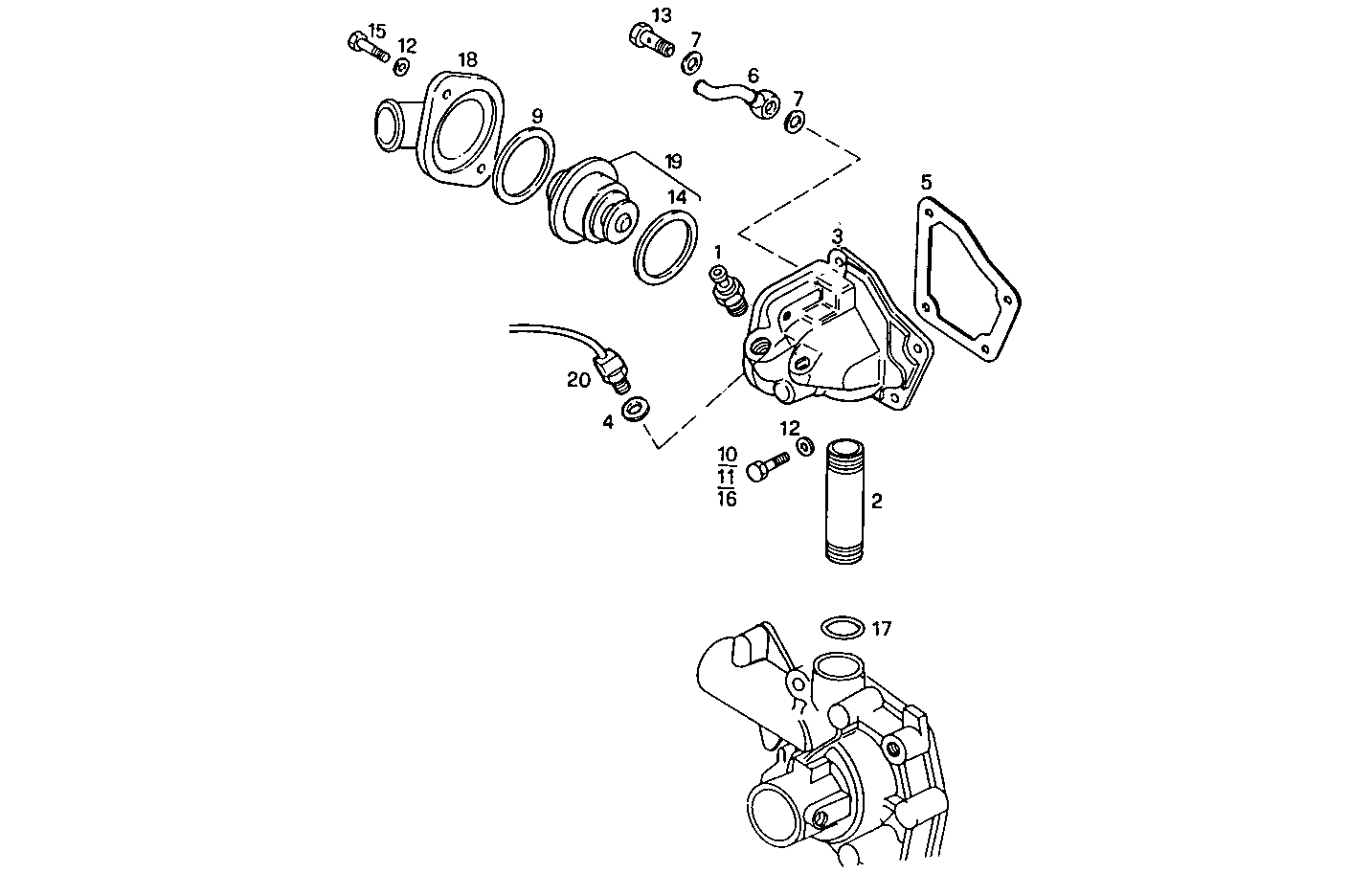

3220.080 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 4837950 TEMP. TRANSMITTER
2 7302296 PIPE
3 500345691 THERMOSTAT BODY M8X1,25X30 MM
4 10260060 SEAL GASKET Ø8X12X1 MM
5 98421297 FLAT ENGINE GASKET SP=0,8 MM
6 7302944 ELBOW COUPLING
7 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
9 14455281 O-RING SP=1,78 MM
10 16605824 HEXAGON BOLT M8X35 MM
11 16605734 HEXAGON BOLT M8X30 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 4864080 SCREW CONNECTOR M10X1,25
14 4823212 RUBBER GASKET
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 16606424 HEXAGON BOLT M8X65 MM
17 17288481 O-RING Ø21,82X3,53 MM
18 98434023 THERM.BODY COVER
19 98463637 THERMOSTAT ASSY
20 99452677 TEMP. TRANSMITTER
