8141C67.03A005

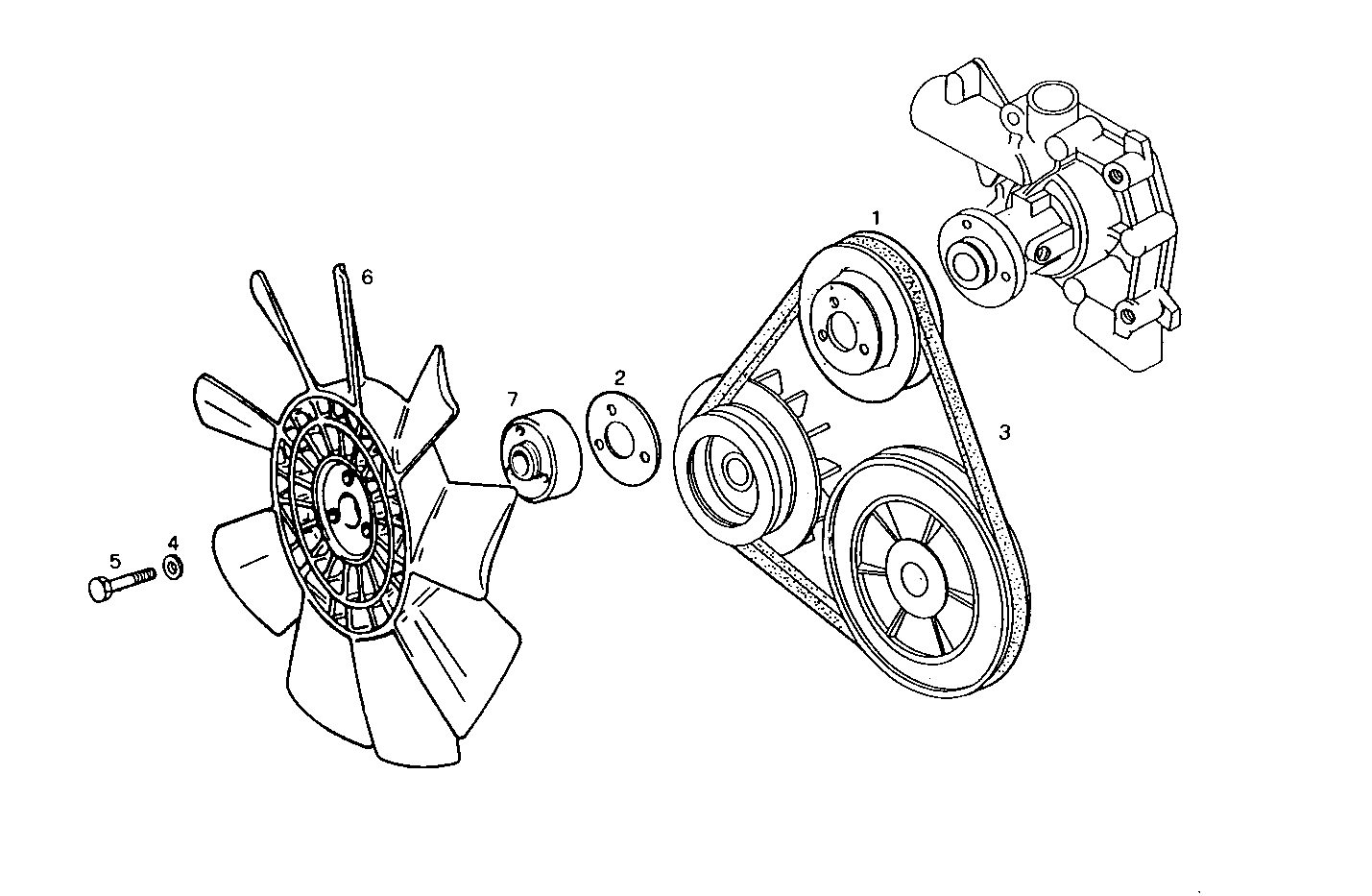

3240.099 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4713941 | WATER PUMP PULLEY |
| 2 | 7300488 | RING |
| 3 | 98462373 | WATER PUMP BELT L=923 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16606424 | HEXAGON BOLT M8X65 MM |
| 6 | 4616572 | BLOWER Ø400 MM |
| 7 | 93809318 | SPACING BAR |
