8141E00.00

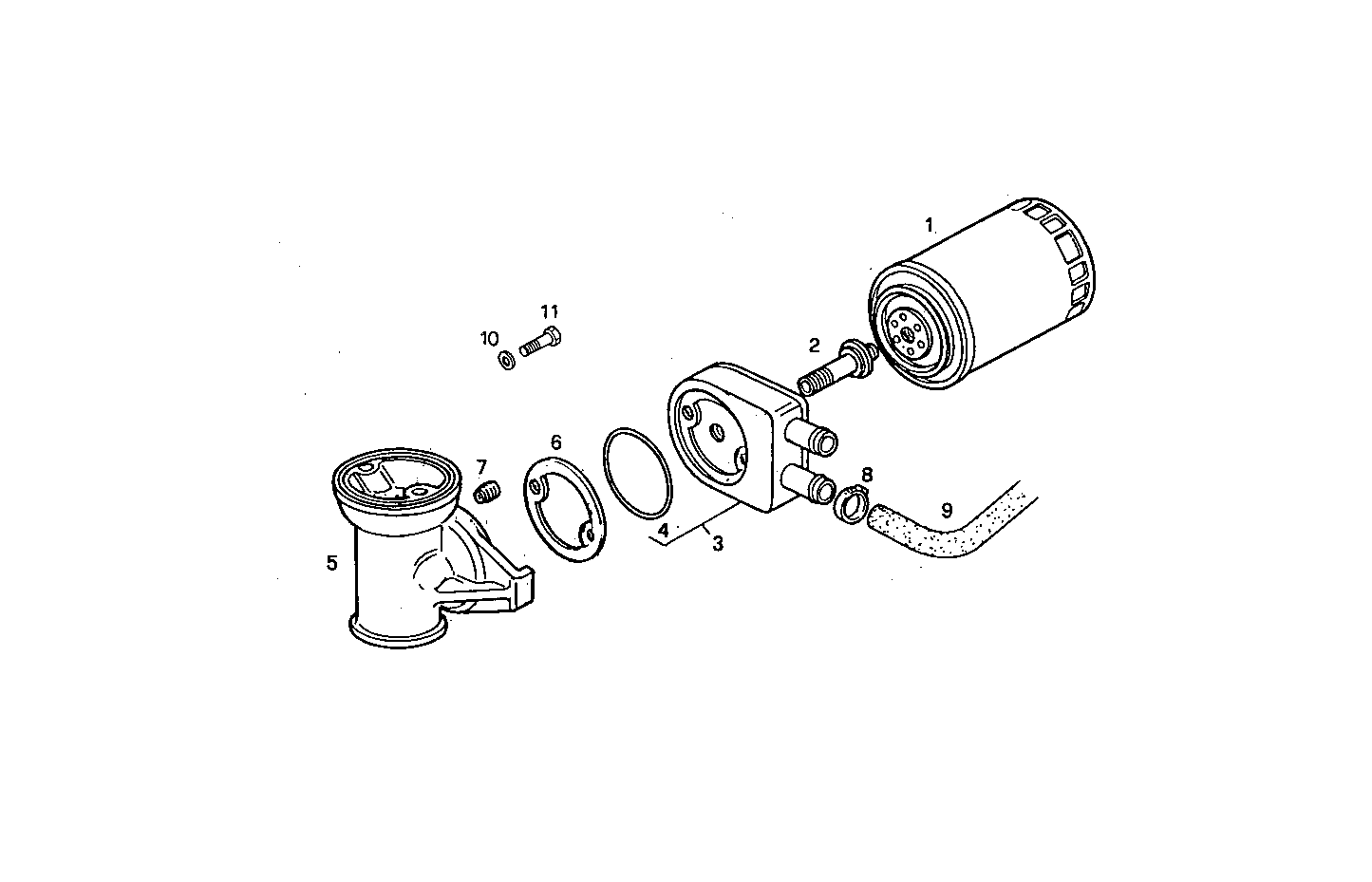

A17010005 HORIZONTAL SIMPLE OIL FILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 1903628 | OIL FILTER CARTRIDGE |
| 2 | 98455068 | PIPE SOCKET |
| 3 | 4866350 | HEAT EXCHANGER ASSY |
| 4 | 93160574 | RUBBER RING Ø66 MM SP=5 MM |
| 5 | 98484239 | SUPPORT ASSY |
| 6 | 8009900 | GASKET |
| 7 | 4855259 | DOWEL PIN M8X1,25 |
| 8 | 17764592 | CLIP Ø20/32 MM |
| 9 | 8018153 | WATER HOSE |
| 10 | 17288381 | O-RING Ø20,22X3,53 MM |
| 11 | 98460705 | SCREW |
