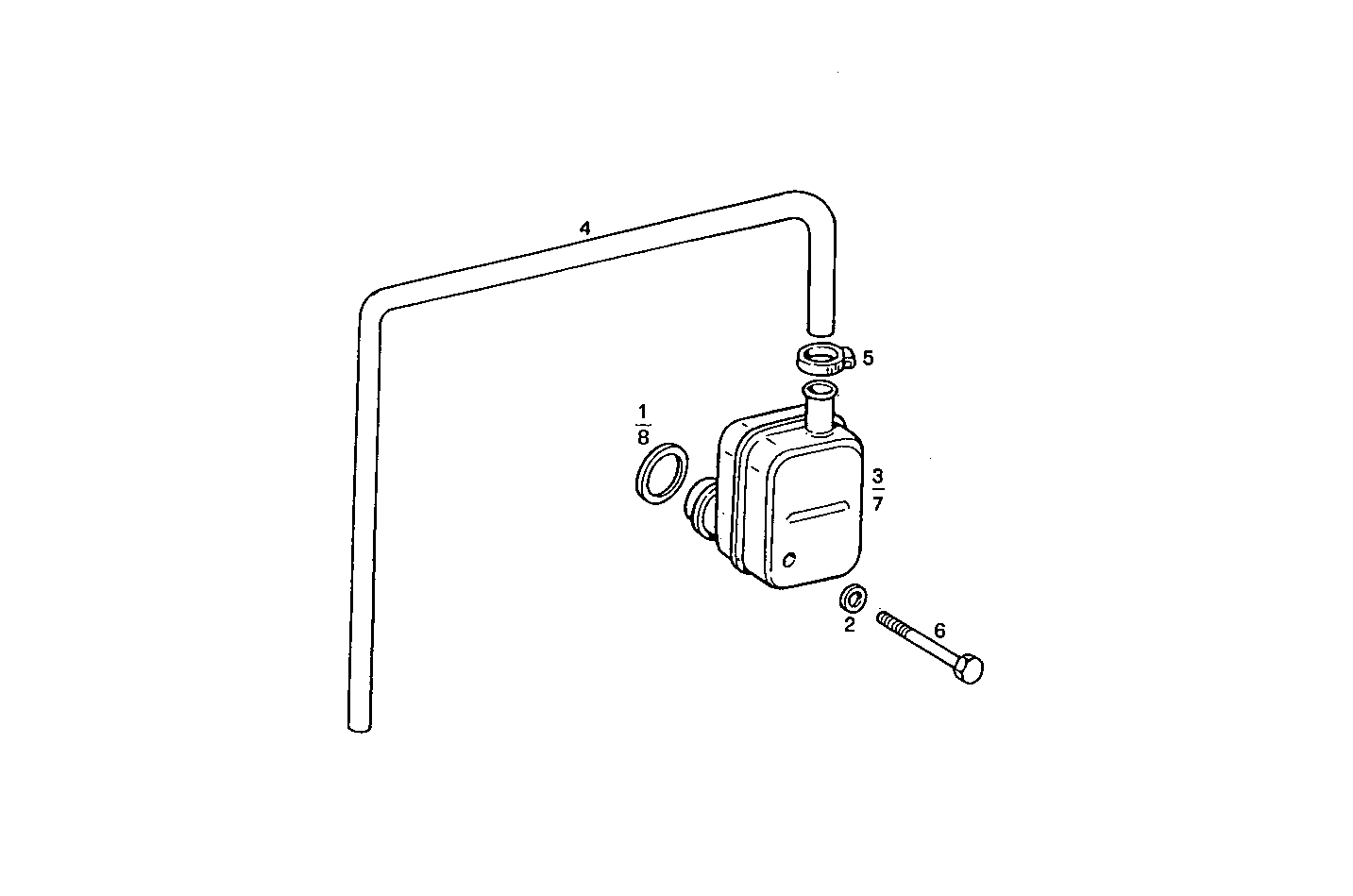

0450.027 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 4600893 | GASKET |
2 | 4760498 | GASKET Ø8,65X14,35 MM |
3 | 7301484 | BREATHER |
4 | 98423606 | RUBBER SLEEVE Ø25X18 MM |
5 | 13417608 | CLIP Ø25,6 MM |
6 | 16045321 | HEXAGON BOLT M8X1,25X105 MM |
7 | 99441839 | BREATHER |
8 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
