8141i07.00

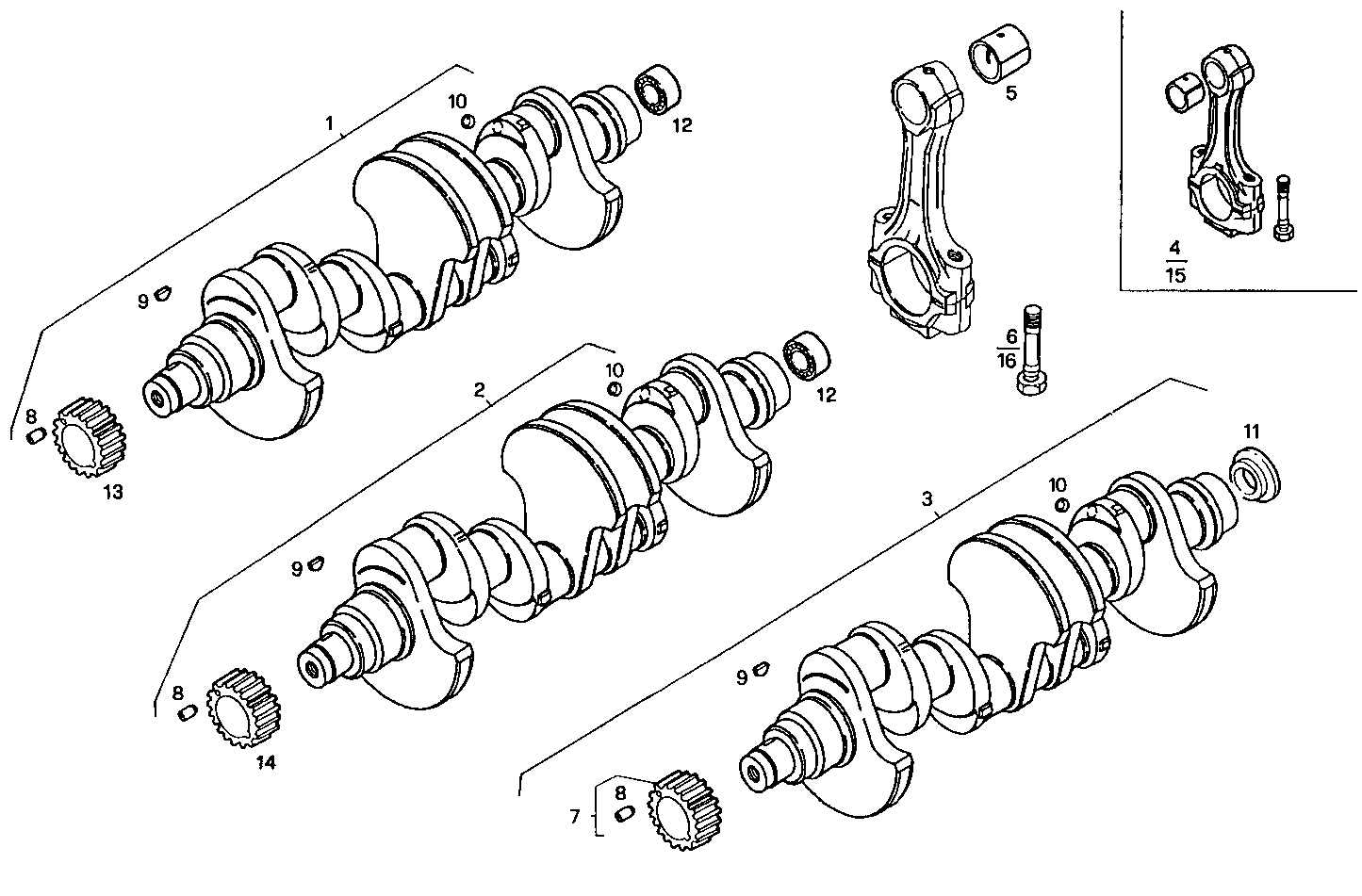

0800.022 CRANK SHAFT - CONNECTING RODS

Iveco/FPT CRANK SHAFT - CONNECTING RODS

Item Part number Description
1 1907550 CRANK SHAFT ASSY OPT [up to 1307400]
2 1907556 CRANK SHAFT ASSY [up to 1307400]
3 98419205 CRANK SHAFT ASSY [from 1307401]
4 7475037 CONN.ROD ASSY. ASSY [up to 1460332]
5 7302028 BIG-END BUSH
6 4722004 BIG-END BOLT [up to 1460332]
7 98419244 CAMSHAFT PINION ASSY [from 1307401]
8 10332010 PARALLEL PIN
9 4655844 KEY
10 14328101 LOCK PLUG Ø8 MM
11 98426373 CENTERING RING [from 1307401]
12 24941350 ENGINE BEARINGS [up to 1307400]
13 4707366 CAMSHAFT PINION [up to 1307400]
14 98415920 CAMSHAFT PINION [up to 1307400]
15 98449079 CONN.ROD ASSY. ASSY [from 1460333]
16 98425915 BIG-END BOLT [from 1460333]
