8141i07.00

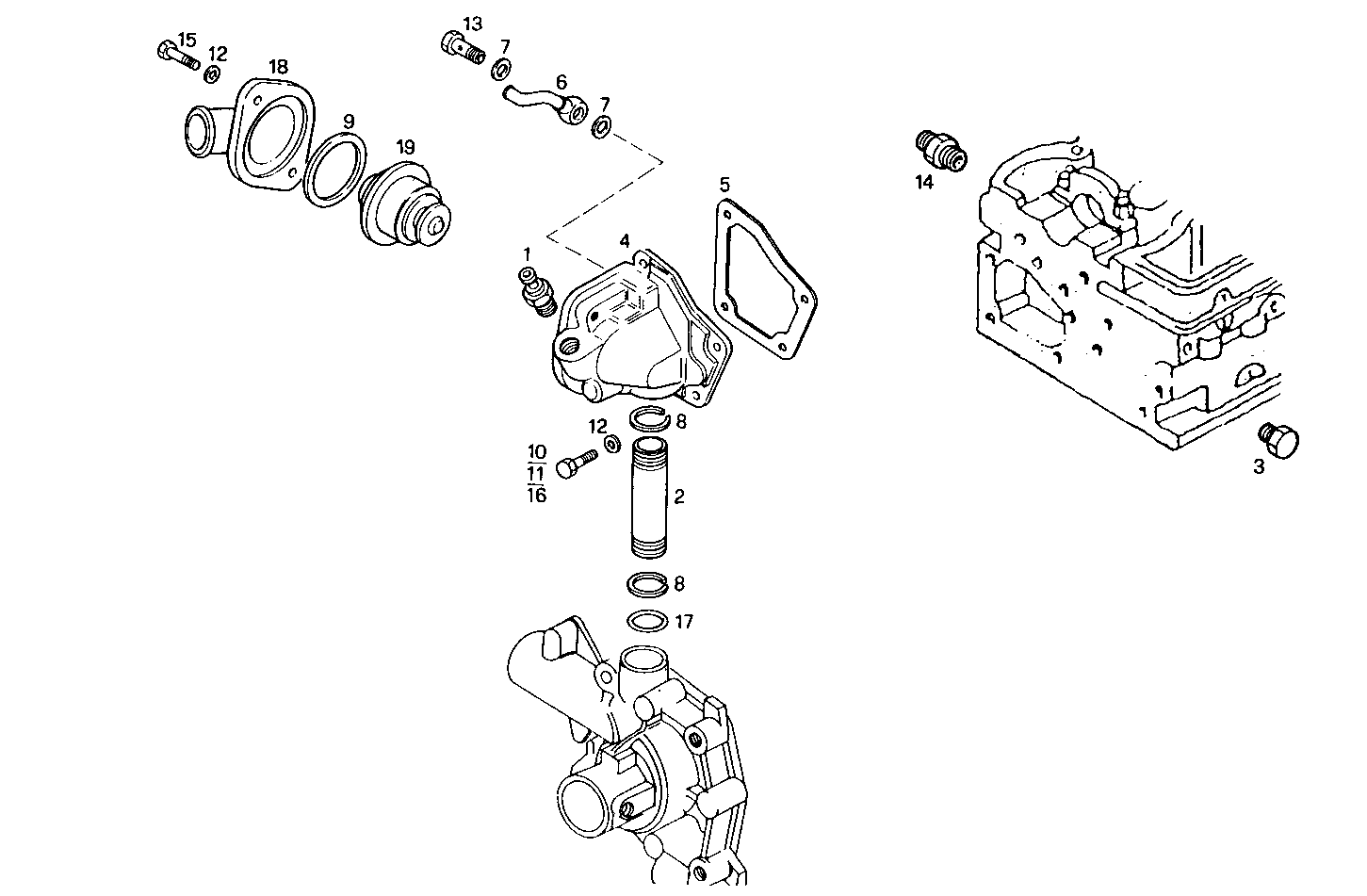

3220.013 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 4837950 TEMP. TRANSMITTER
2 4697947 WATER PIPE
3 16997411 THREADED PLUG M16X1,5
4 4828059 THERMOSTAT BODY
5 98421297 FLAT ENGINE GASKET SP=0,8 MM
6 7302944 ELBOW COUPLING
7 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
8 16866173 CIRCLIP Ø19,5 MM
9 14455281 O-RING SP=1,78 MM
10 16605824 HEXAGON BOLT M8X35 MM
11 16605734 HEXAGON BOLT M8X30 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 4864080 SCREW CONNECTOR M10X1,25
14 98433844 CONNECTION PIPE
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 16044924 SCREW M8X1,25X85 MM
17 17278481 O-RING Ø17,17 MM SP=1,78 MM
18 4837049 THERM.BODY COVER
19 4837166 THERMOSTAT
